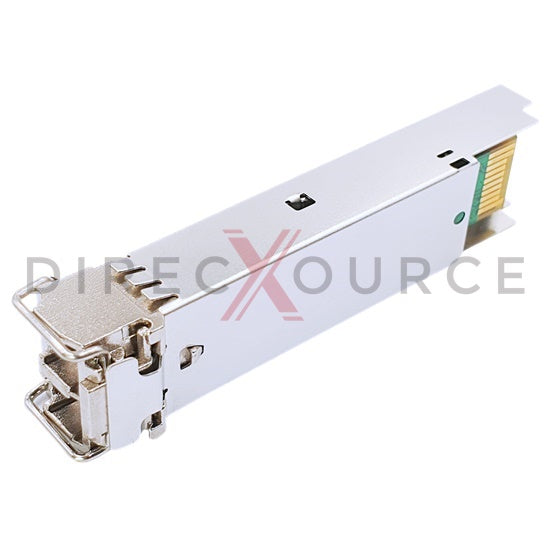

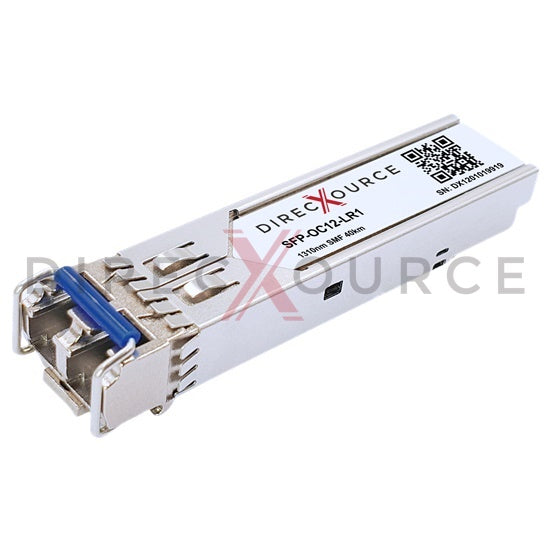

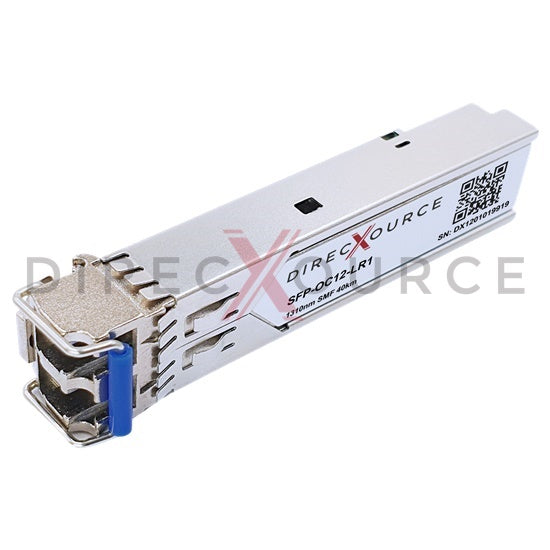

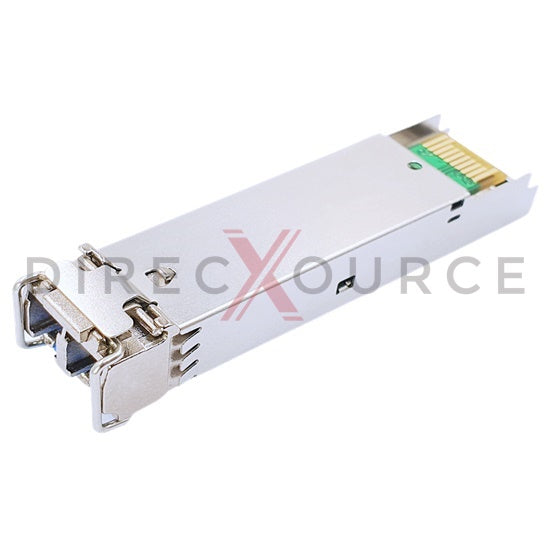

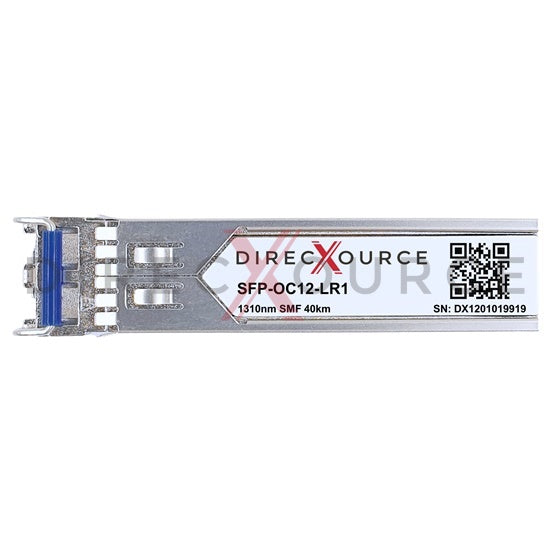

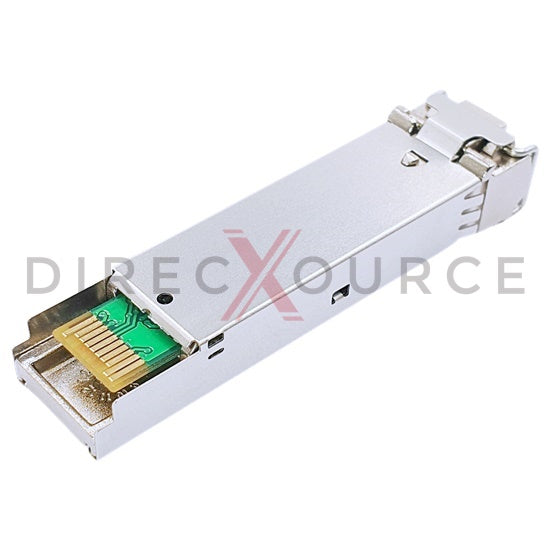

Alcatel-Lucent OC12-SFP-LR1 Compatible OC-12/STM-4 LR-1 SFP 1310nm 40km SMF LC DOM Optical Transceiver Module
Alcatel-Lucent OC12-SFP-LR1 compatible optical transceiver is a dual fiber 622Mbps Small Form-factor Pluggable SFP module for use in OC12/STM-4 SONET/SDH Network. SFP OC12-LR1 provides 622Mb/s throughput up to 40km over single-mode fiber (SMF) using 1310nm wavelength. This transceiver is fully compliant with SFP Multi-Source Agreement (MSA) and SONET OC-12 LR-1 standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP transceiver features highly reliable FP transmitter and PIN photo detector to offer high performance interconnection at 622M bps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Alcatel-Lucent OC12-SFP-LR1 transceivers.
Feature
- Equivalent to Alcatel-Lucent OC12-SFP-LR1 in function
- Hot pluggable SFP form factor
- Data rate up to 622Mbps
- 1310nm FP transmitter
- PIN photo receiver
- Duplex LC optical connector
- Link distances up to SMF 40km
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 0.6W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with INF-8074i, SFF-8472
- Compliant with SONET OC-12 LR-1
- Compliant with SDH STM L-4.1
- Compliant with RoHS, REACH, CE, FCC standards
Application
- SONET OC-12 Network
- SDH STM-4 Network
Specification
Alcatel-Lucent Compatible P/N | OC12-SFP-LR1 | Form Factor | SFP |
Max Data Rate | 622Mbps | Max Distance | 40km (24.9 miles) |
Wavelength | 1310nm | Connector | Duplex LC |
DDM/DOM | Support | Media | SMF |
Transmitter Type | FP | Receiver Type | PIN |
Transmitter Power | -3 to 2dBm | Receiver Sensitivity | < -28dBm |
Extinction Ratio | 8.2dB | Receiver Overload | 0dBm |
Modulation Format | NRZ | Power Budget | 25dB |
Power Consumption | 0.6W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
