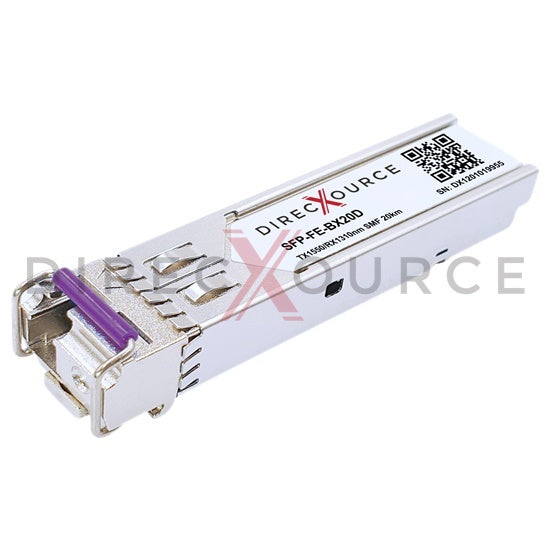

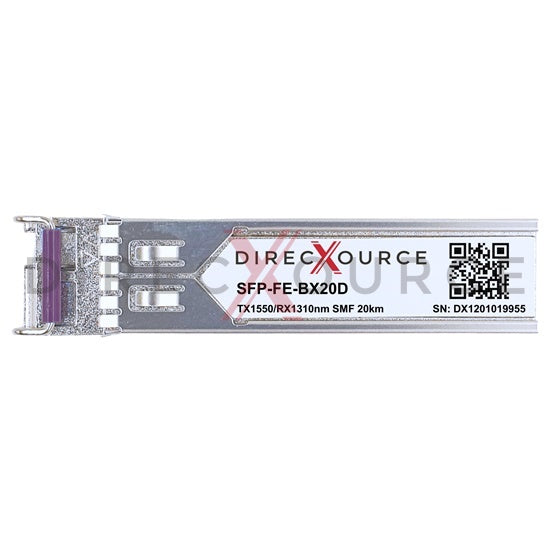

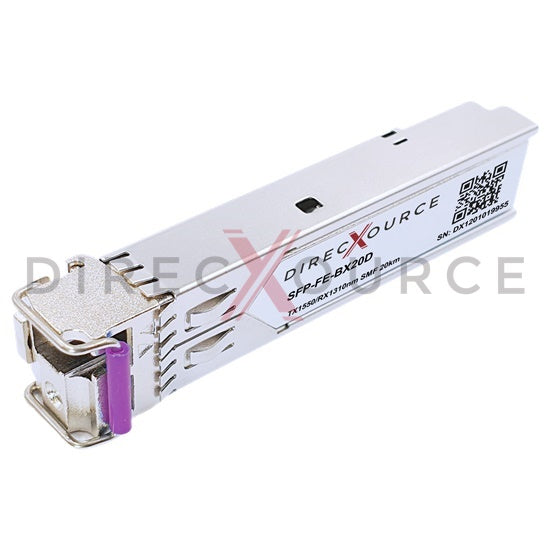

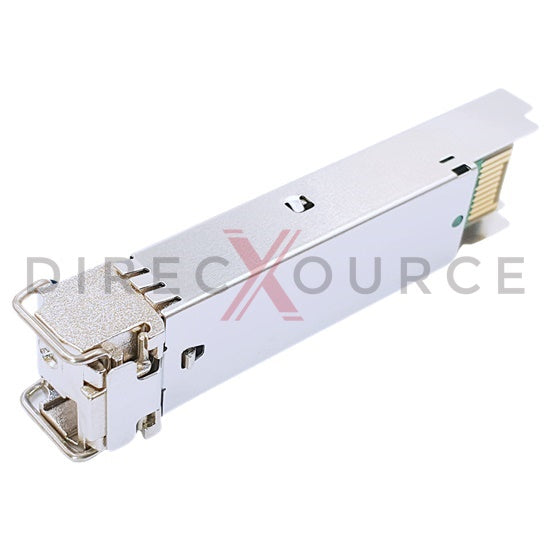

Alcatel-Lucent SFP-100-BX20LT Compatible 100BASE-BX BIDI SFP TX1550nm/RX1310nm 20km SMF LC DOM Optical Transceiver Module

Alcatel-Lucent SFP-100-BX20LT Compatible 100BASE-BX BIDI SFP TX1550nm/RX1310nm 20km SMF LC DOM Optical Transceiver Module

Alcatel-Lucent SFP-100-BX20LT compatible optical transceiver is a single fiber bidirection 100Mbps Small Form-factor Pluggable SFP BIDI module for use in 100BASE Ethernet. SFP BX20D provides 100Mb/s throughput up to 20km over single-mode fiber (SMF) using 1550nm in transmitter side and 1310nm in receiver side. This transceiver is fully compliant with SFP Multi-Source Agreement (MSA), IEEE 802.3 100BASE-BX20 and SERDES standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Simplex LC connector. The full-duplex SFP transceiver features highly reliable FP transmitter and PIN photo detector to offer high performance interconnection at 100M bps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Alcatel-Lucent SFP-100-BX20LT transceivers.

Feature

• Equivalent to Alcatel-Lucent SFP-100-BX20LT in function
• Hot pluggable SFP form factor
• Data rate up to 100Mbps
• 1550nm FP transmitter
• PIN photo receiver
• Simplex LC optical connector
• Link distances up to SMF 20km
• Built-in digital diagnostic via 2-wire interface
• Single 3.3V power supply voltage
• Power consumption < 0.6W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with INF-8074i, SFF-8472
• Compliant with IEEE 802.3 100BASE-BX20
• Compliant with RoHS, REACH, CE, FCC standards

Application

• Fast Ethernet

Specification
