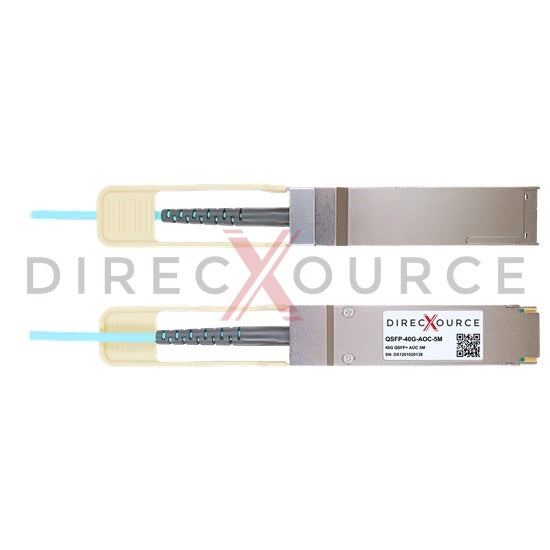

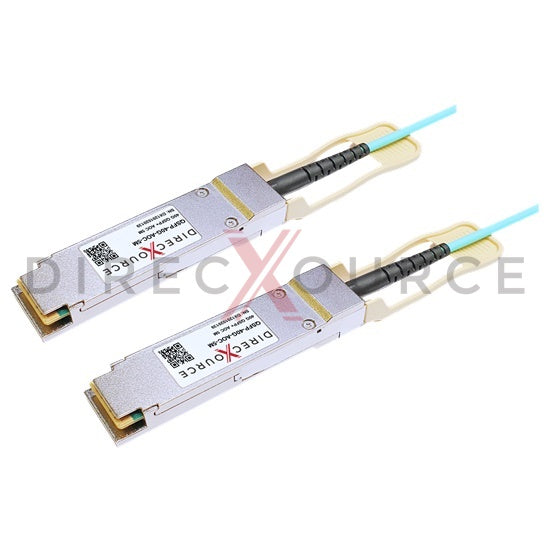

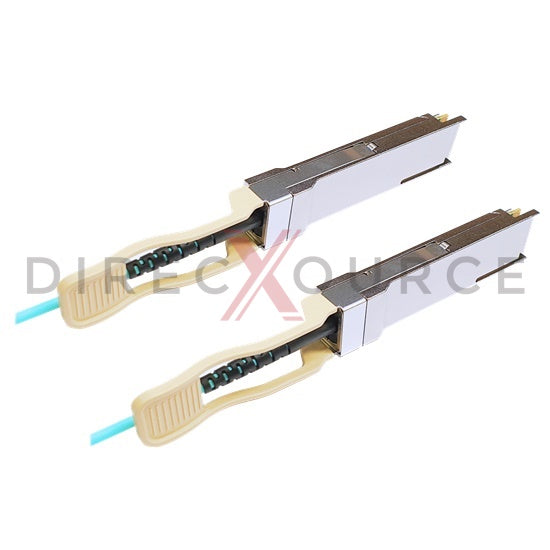

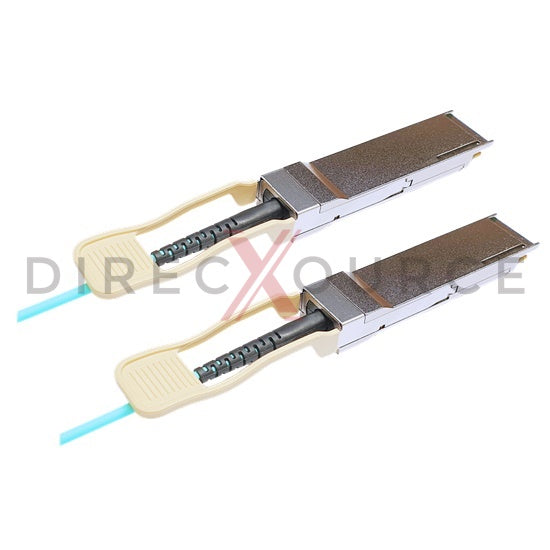

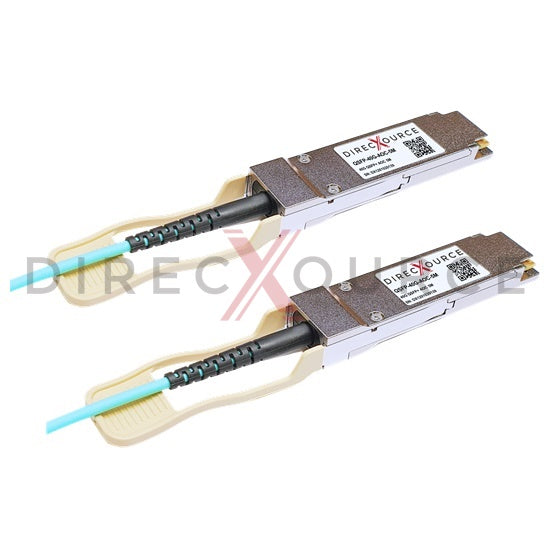

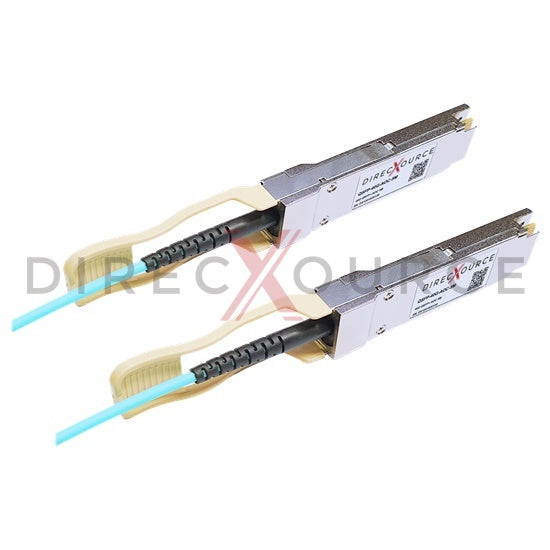

5m (16.4ft) Arista Networks AOC-Q-Q-40G-5M Compatible 40G QSFP+ Active Optical Cable
Arista Networks AOC-Q-Q-40G-5M compatible AOC is a 40Gbps QSFP+ to QSFP+ active optical cable for use in 40GBASE Ethernet. QSFP+ AOC provides 40Gb/s throughput for 5m interconnection with laser-optimized multi-mode fiber optical cable. Standard length options cover from 1 meter to 30 meters. The QSFP+ AOC cable implements 4 independent 10 Gbps NRZ transmit and receive signal channels in each fiber for an aggregate 40 Gbps data rate. This AOC is fully compliant with QSFP+ Multi-Source Agreement (MSA), IEEE 802.3ba 40GBASE-CR4 and XLPPI standard. The active optical cable is pre-terminated with MSA compliant 38-pin edge type connectors. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our AOCs are factory pre-programmed for compatibility, perform identically to original Arista Networks AOC-Q-Q-40G-5M direct attach cables.
Feature
- Equivalent to Arista Networks AOC-Q-Q-40G-5M in function
- Hot Pluggable QSFP+ to QSFP+ Topology
- Aggregate data rate up to 40Gbps
- Pre-terminated Multi-mode fiber cable
- 4x 10.3125Gbps XLPPI electrical interface
- Minimum bending radius 7.5mm
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 1W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with SFF-8436, SFF-8635, SFF-8661, SFF-8679, SFF-8636
- Compliant with IEEE 802.3ba 40GBASE-CR4
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 40G Ethernet
- Data Center
Specification
| Arista Networks Compatible P/N | AOC-Q-Q-40G-5M | Topology | QSFP+ to QSFP+ |
| Max Data Rate | 40Gbps | Cable Length | 5m (16.4ft) |
| Cable Type | OM3 Multi Mode Fiber | Jacket Meterial | OFNP |
| Minimum Bend Radius | 7.5mm | Signal Conditioner | None |
| Power Consumption | 1W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
