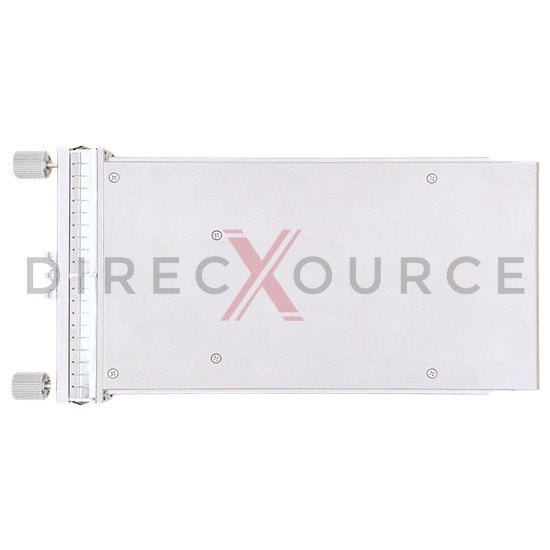

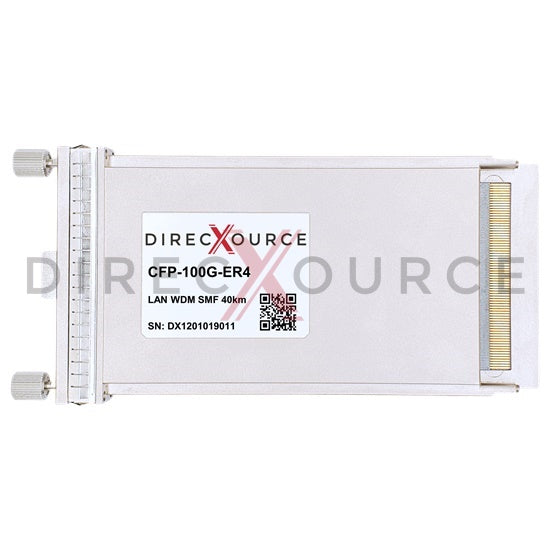

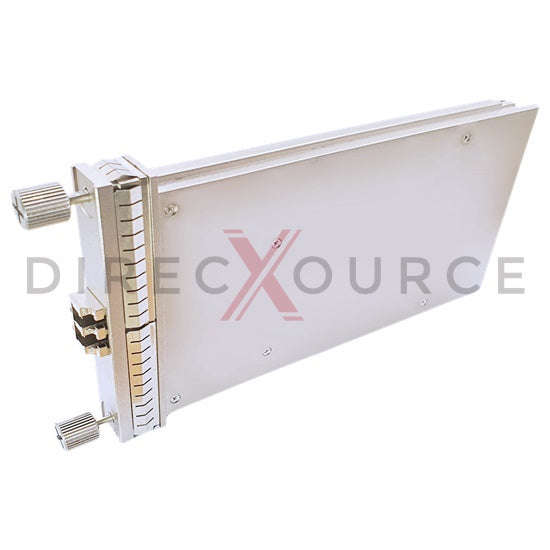

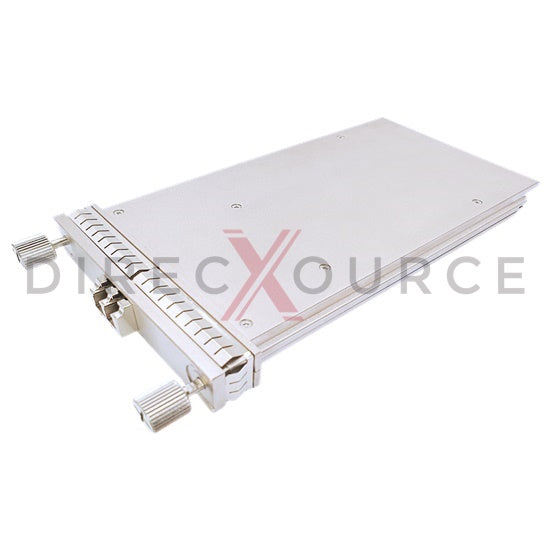

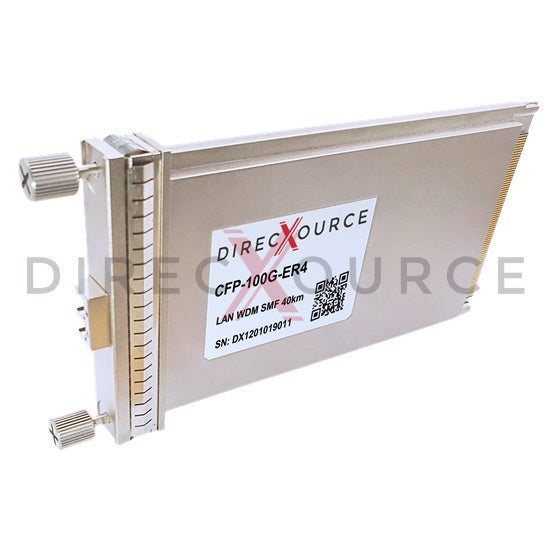

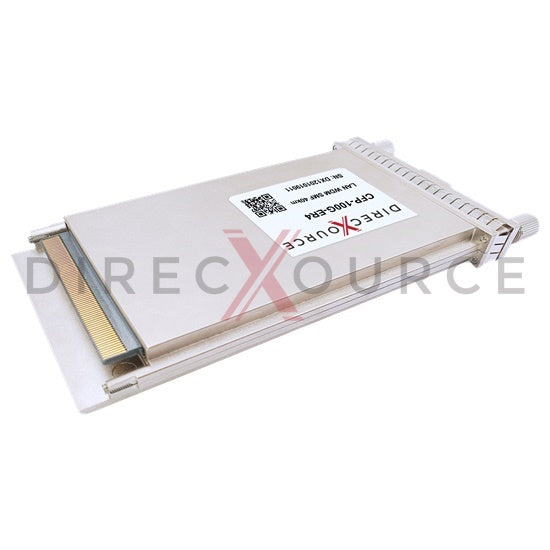

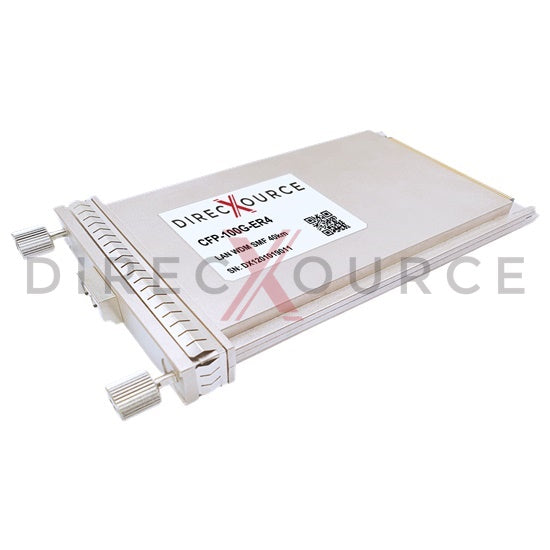

Arista Networks CFP-100GBASE-ER4 Compatible 100GBASE-ER4 CFP 1310nm 40km SMF LC DOM Optical Transceiver Module

Arista Networks CFP-100GBASE-ER4 Compatible 100GBASE-ER4 CFP 1310nm 40km SMF LC DOM Optical Transceiver Module

Arista Networks CFP-100GBASE-ER4 compatible optical transceiver is a parallel 112Gbps C Form-factor Pluggable CFP module for use in 100GBASE Ethernet. CFP ER4 provides 100Gb/s throughput up to 40km over single-mode fiber (SMF) with built-in FEC using 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm wavelength. This transceiver is fully compliant with CFP Multi-Source Agreement (MSA), IEEE 802.3ba 100GBASE-ER4 and CAUI-10 standard. Its electrical interface is MSA compliant 148-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex CFP transceiver implements 4 independent 25.78125 Gbps transmit and receive channels in each wavelength for an aggregate 100 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via MDIO interface. Our modules are factory pre-programmed for compatibility, perform identically to original Arista Networks CFP-100GBASE-ER4 transceivers.

Feature

• Equivalent to Arista Networks CFP-100GBASE-ER4 in function
• Hot pluggable CFP form factor
• Aggregate data rate up to 112Gbps
• 4 channels 1310nm LAN-WDM EML transmitter
• 4 channels PIN+SOA photo receiver
• Duplex LC optical connector
• Link distances up to SMF 40km with module embedded FEC
• 10x 10Gbps NRZ retimed CUAI-10 electrical interface
• Built-in digital diagnostic via MDIO interface
• Single 3.3V power supply voltage
• Power consumption < 16W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with CFP MSA
• Compliant with IEEE 802.3ba 100GBASE-ER4
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 100G Ethernet
• Data Center
• OTU4
