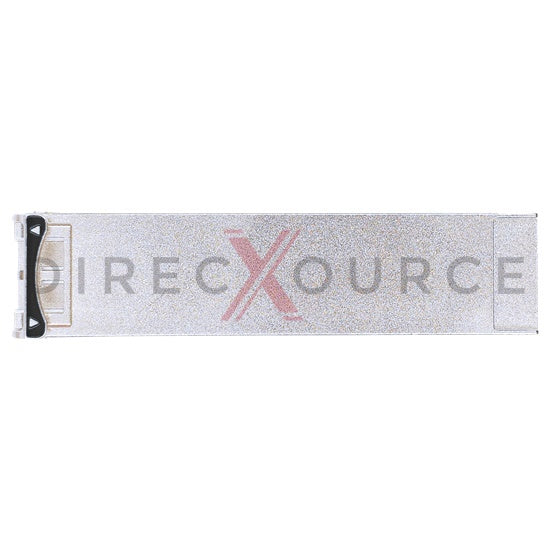

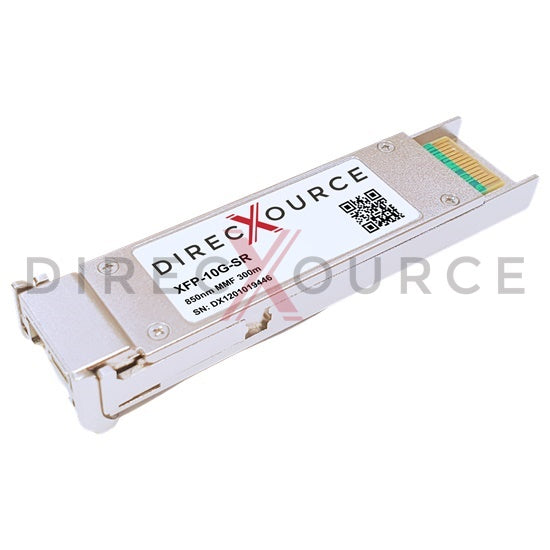

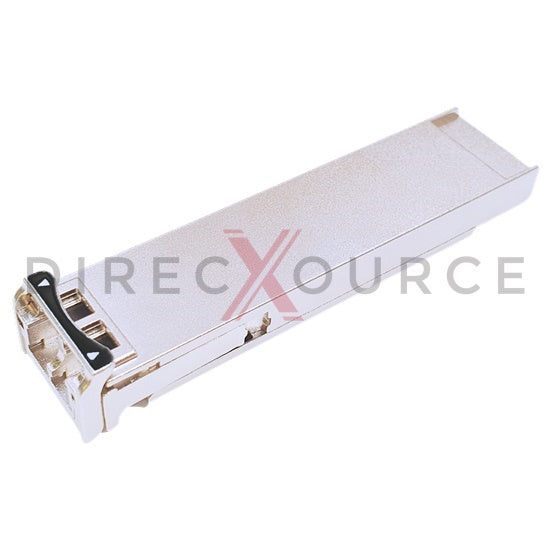

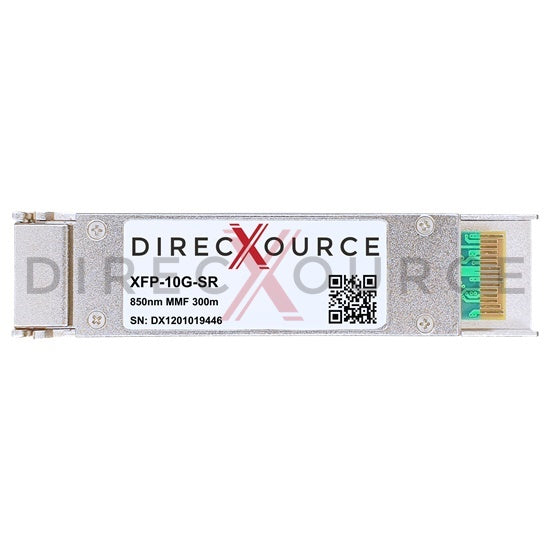

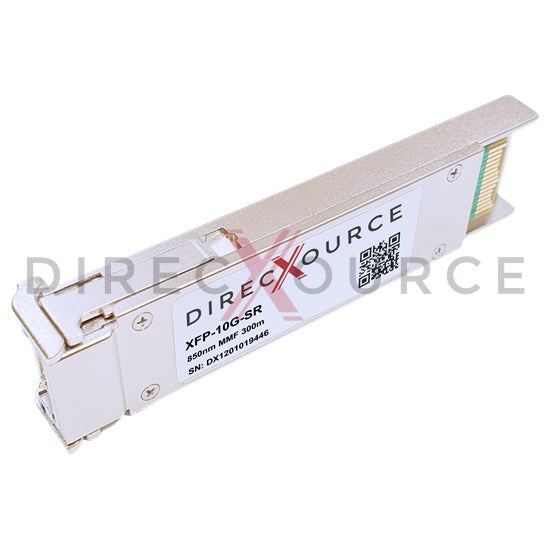

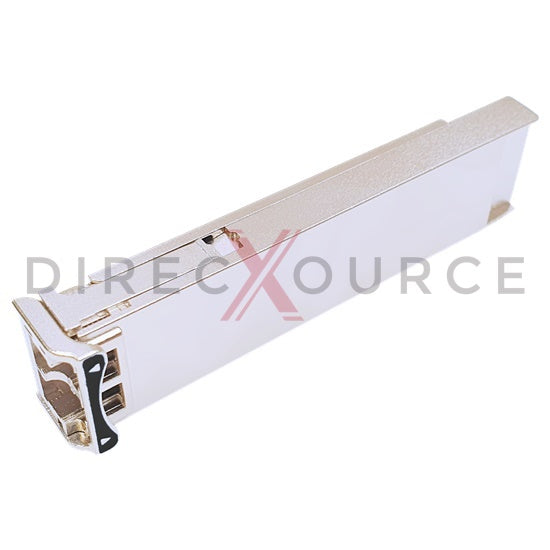

Avaya Nortel AA1403005-ES Compatible 10GBASE-SR XFP 850nm 300m MMF LC DOM Optical Transceiver Module

Avaya Nortel AA1403005-ES Compatible 10GBASE-SR XFP 850nm 300m MMF LC DOM Optical Transceiver Module

Avaya Nortel AA1403005-ES compatible optical transceiver is a dual fiber 10.3Gbps Form-factor Pluggable XFP module for use in 10GBASE Ethernet. XFP SR provides 10Gb/s throughput up to 300 meters over OM3 or 82 meters over OM2 multi-mode fiber (MMF) using 850nm wavelength. This transceiver is fully compliant with XFP Multi-Source Agreement (MSA), IEEE 802.3 10GBASE-SR and XFI standard. Its electrical interface is MSA compliant 30-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex XFP transceiver features highly reliable VCSEL transmitter and PIN photo detector to offer high performance interconnection at 10 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Avaya Nortel AA1403005-ES transceivers.

Feature

• Equivalent to Avaya Nortel AA1403005-ES in function
• Hot pluggable XFP form factor
• Data rate up to 10.3Gbps
• 850nm VCSEL transmitter
• PIN photo receiver
• Duplex LC optical connector
• Link distances up to OM3 300m
• Built-in digital diagnostic via 2-wire interface
• Single 3.3V power supply voltage
• Power consumption < 1.7W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with INF-8077i
• Compliant with IEEE 802.3 10GBASE-SR
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 10G Ethernet
• 10G SONET/SDH
