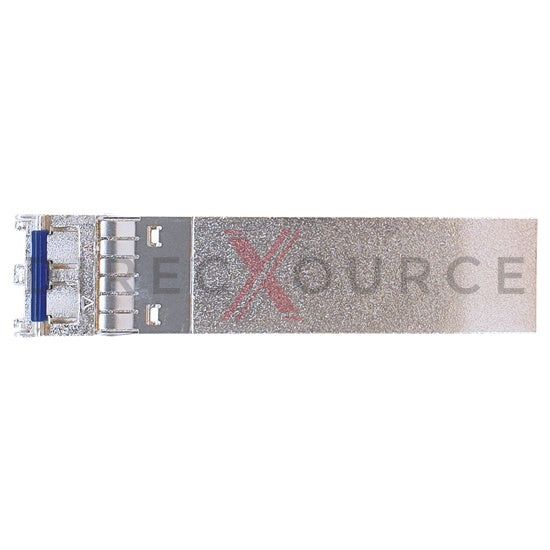

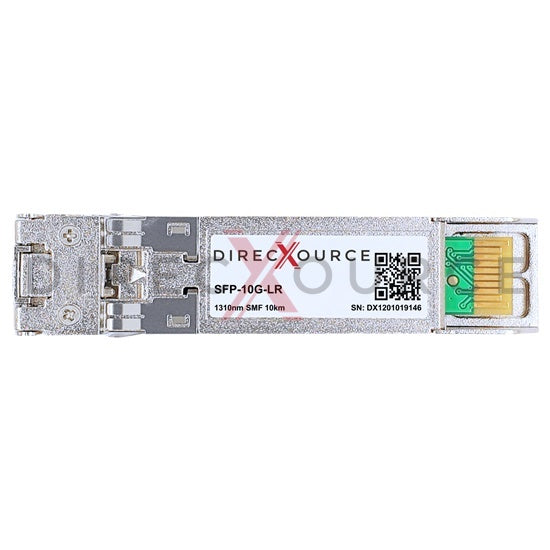

Brocade XBR-000217 Compatible 10G Fibre Channel SFP+ 1310nm 10km SMF LC DOM Optical Transceiver Module

Brocade XBR-000217 Compatible 10G Fibre Channel SFP+ 1310nm 10km SMF LC DOM Optical Transceiver Module

Brocade XBR-000217 compatible optical transceiver is a dual fiber 10Gbps Small Form-factor Pluggable SFP+ module for use in 10GBASE Ethernet. SFP+ 10G-LW provides 10Gb/s throughput up to 10km over single-mode fiber (SMF) using 1310nm wavelength. This transceiver is fully compliant with SFP+ Multi-Source Agreement (MSA), FCIA FC-PI-5 1000-SM-LC-L and standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP+ transceiver features highly reliable DFB transmitter and PIN photo detector to offer high performance interconnection at 10 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Brocade XBR-000217 transceivers.

Feature

• Equivalent to Brocade XBR-000217 in function
• Hot pluggable SFP+ form factor
• Data rate up to 10Gbps
• 1310nm DFB transmitter
• PIN photo receiver
• Duplex LC optical connector
• Link distances up to MMF 300m
• Built-in digital diagnostic via 2-wire interface
• Single 3.3V power supply voltage
• Power consumption < 1W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with SFF-8431, SFF-8432, SFF-8419, SFF-8472
• Compliant with FCIA FC-PI-5 1000-SM-LC-L
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 10G Fibre Channel

Specification
