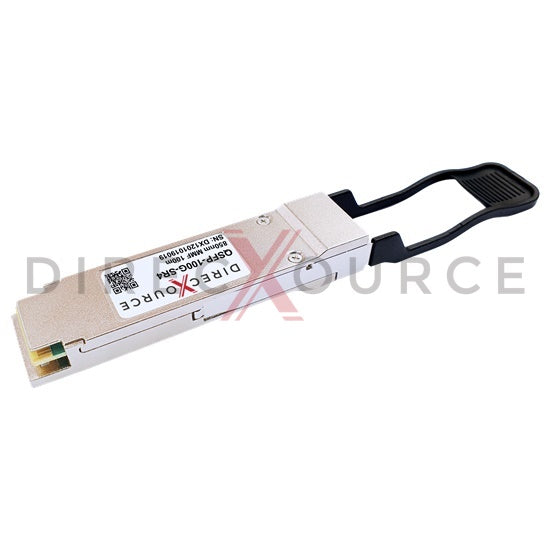

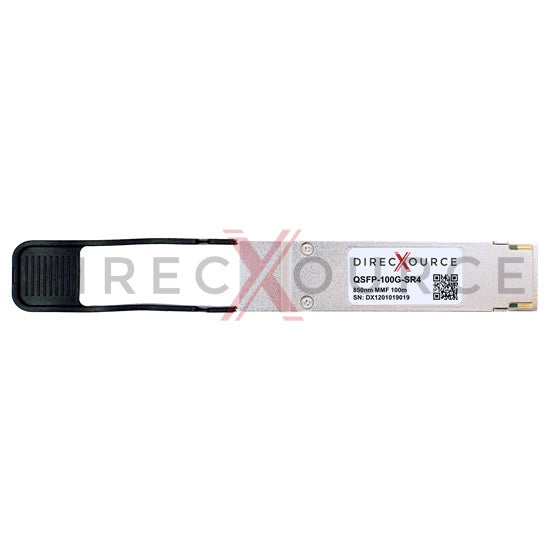

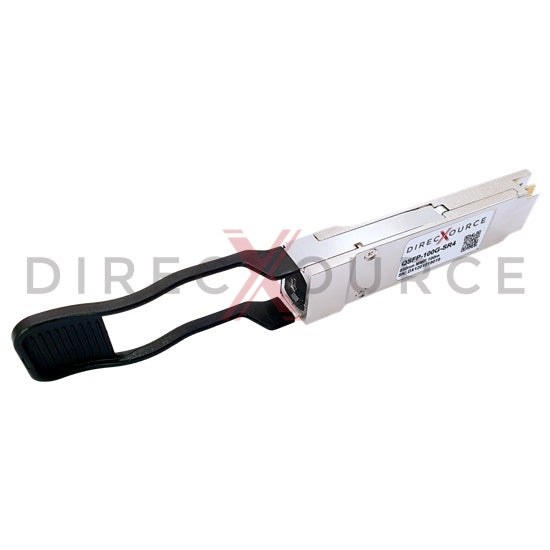

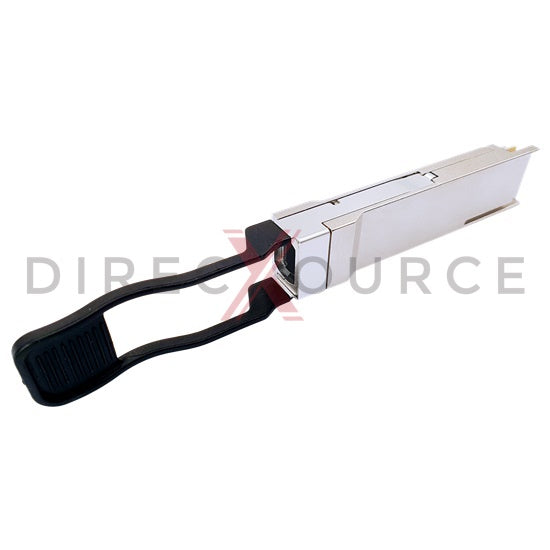

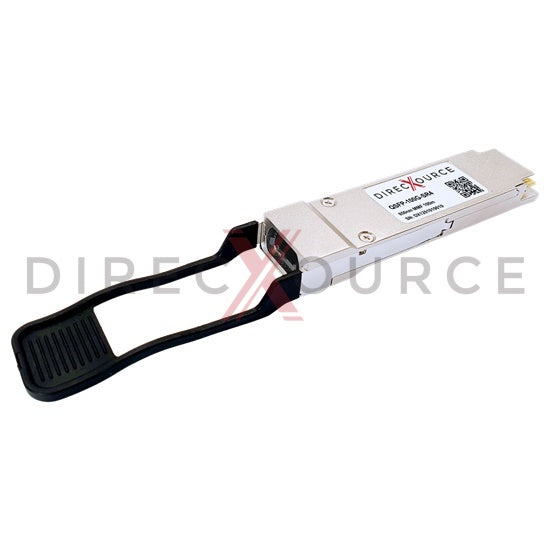

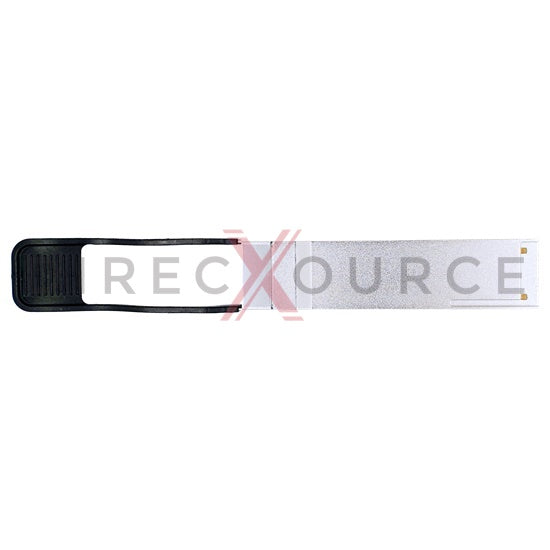

Chelsio SM100G-SR Compatible 100GBASE-SR4 QSFP28 850nm 100m MMF MTP/MPO-12 DOM Optical Transceiver Module
Chelsio SM100G-SR compatible optical transceiver is a parallel 103.1Gbps Quad Small Form-factor Pluggable QSFP28 module for use in 100GBASE Ethernet. QSFP28 SR4 provides 100Gb/s throughput up to 100 meters over OM4 or 70 meters over OM3 multi-mode fiber (MMF) with host FEC using 850nm wavelength. This transceiver is fully compliant with QSFP28 Multi-Source Agreement (MSA), IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standard. Its electrical interface is MSA compliant 38-pin edge type connector and the optical interface is MTP/MPO-12 connector. The full-duplex QSFP28 transceiver implements 4 independent 25.78125 Gbps transmit and receive channels in each fiber for an aggregate 100 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Chelsio SM100G-SR transceivers.
Feature
- Equivalent to Chelsio SM100G-SR in function
- Hot pluggable QSFP28 form factor
- Aggregate data rate up to 103.1Gbps
- 4 channels 850nm VCSEL transmitter
- 4 channels PIN photo receiver
- MTP/MPO-12 optical connector
- Link distances up to OM4 100m, OM3 70m with host FEC
- 4x 25.78125Gbps NRZ retimed CUAI-4 electrical interface
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 3.5W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with SFF-8665, SFF-8661, SFF-8679, SFF-8636
- Compliant with IEEE 802.3bm 100GBASE-SR4
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 100G Ethernet
- Data Center
Specification
| Chelsio Compatible P/N | SM100G-SR | Form Factor | QSFP28 |
| Max Data Rate | 103.1Gbps | Max Distance | 100m (328ft) @OM4, 70m (230ft) @OM3 |
| Wavelength | 850nm | Connector | MTP/MPO-12 |
| DDM/DOM | Support | Media | MMF |
| Transmitter Type | 4x VCSEL | Receiver Type | PIN |
| Transmitter Power | -8.4 to 2.4dBm | Receiver Sensitivity | < -10.3dBm |
| Extinction Ratio | 3dB | Receiver Overload | 2.4dBm |
| Transmit and Dispersion Penalty | 5dB | Power Budget | 1.9dB |
| OE Packaging | COB Packaging | Signal Conditioner | Retimer for TX and RX |
| Modulation Format | NRZ | Host FEC | Support |
| Power Consumption | 3.5W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
