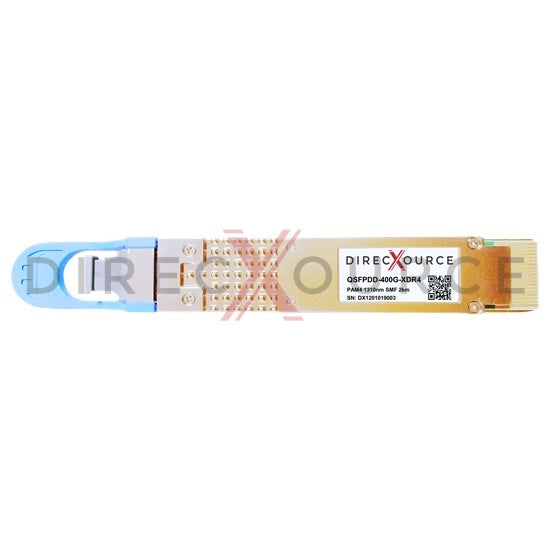

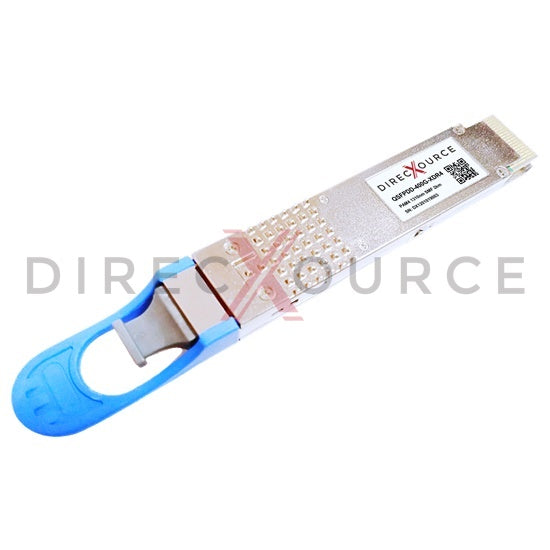

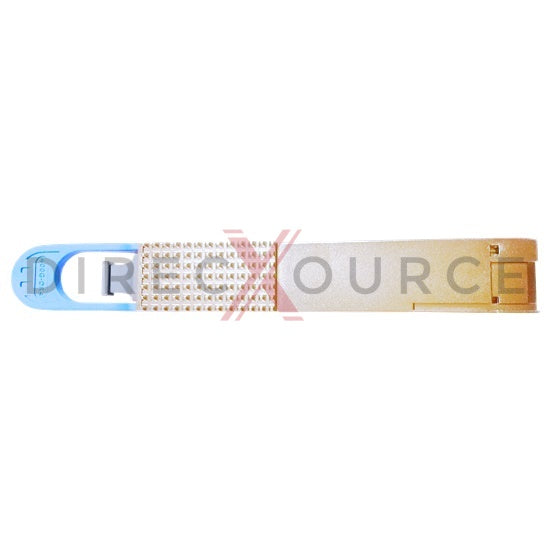

Cisco QDD-400G-XDR4-S Compatible 400GBASE-XDR4 QSFP-DD PAM4 1310nm 2km SMF MTP/MPO-12 DOM Optical Transceiver Module

Cisco QDD-400G-XDR4-S Compatible 400GBASE-XDR4 QSFP-DD PAM4 1310nm 2km SMF MTP/MPO-12 DOM Optical Transceiver Module

Cisco QDD-400G-XDR4-S compatible optical transceiver is a parallel 400Gbps Quad Small Form-factor Pluggable - Double Density QSFP-DD module for use in 400GBASE Ethernet. QSFP-DD XDR4 provides 400Gb/s throughput up to 2km over single-mode fiber (SMF) with host FEC using 1310nm wavelength. This transceiver is fully compliant with QSFP-DD Multi-Source Agreement (MSA), IEEE 802.3bs 400GBASE-XDR4 and 400GAUI-8 standard. Its electrical interface is MSA compliant 76-pin edge type connector and the optical interface is MTP/MPO-12 APC connector. The full-duplex QSFP-DD transceiver implements 4 independent 106.26 Gbps PAM4 transmit and receive signal channels in each fiber for an aggregate 400 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Cisco QDD-400G-XDR4-S transceivers.

Feature

• Equivalent to Cisco QDD-400G-XDR4-S in function
• Hot pluggable QSFP-DD form factor
• Aggregate data rate up to 400Gbps
• 4 channels 1310nm EML transmitter
• 4 channels PIN photo receiver
• MTP/MPO-12 APC optical connector
• Link distances up to SMF 2km with host FEC
• 8x 53.125Gbps PAM4 retimed 400GUAI-8 electrical interface
• Built-in digital diagnostic via 2-wire interface
• Single 3.3V power supply voltage
• Power consumption < 12W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with QSFP-DD MSA, CMIS
• Compliant with IEEE 802.3bs 400GBASE-XDR4
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 400G Ethernet
• Data Center

Specification
