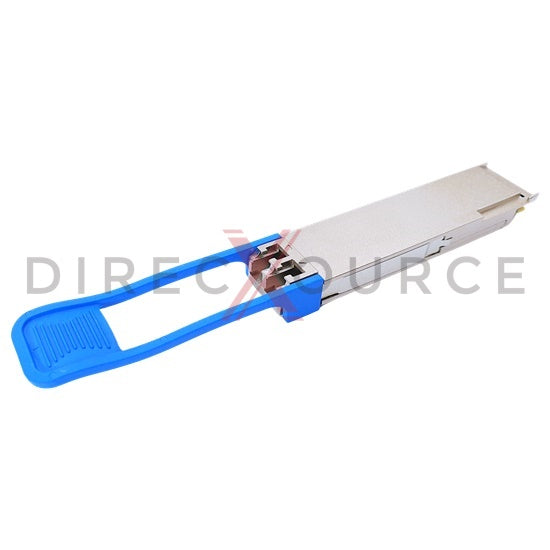

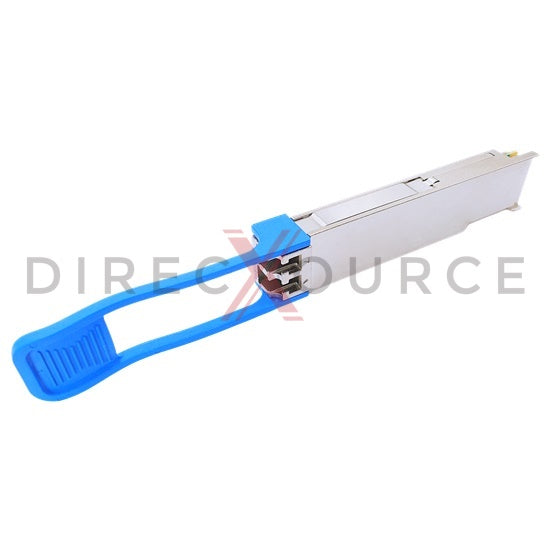

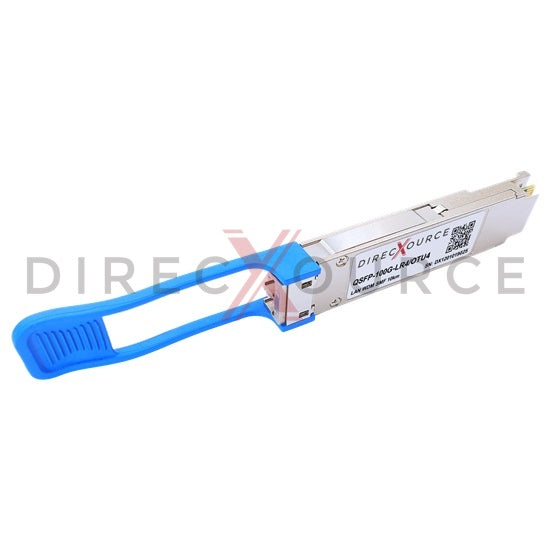

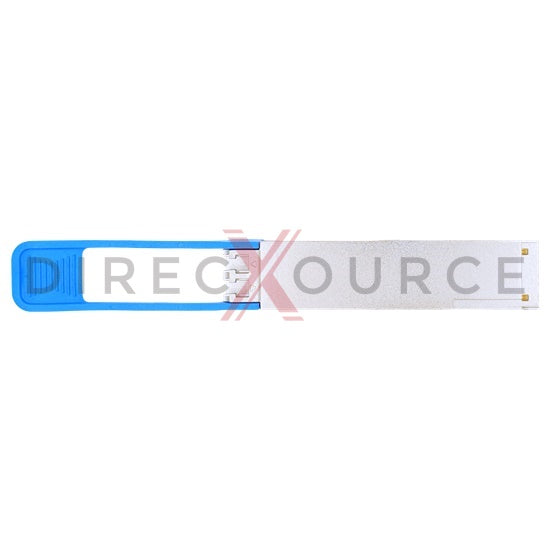

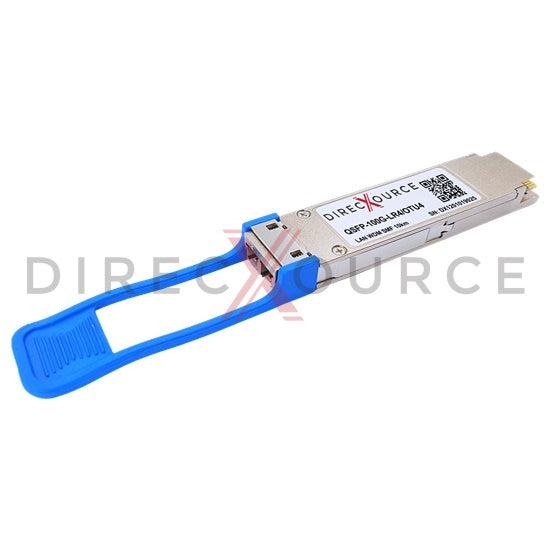

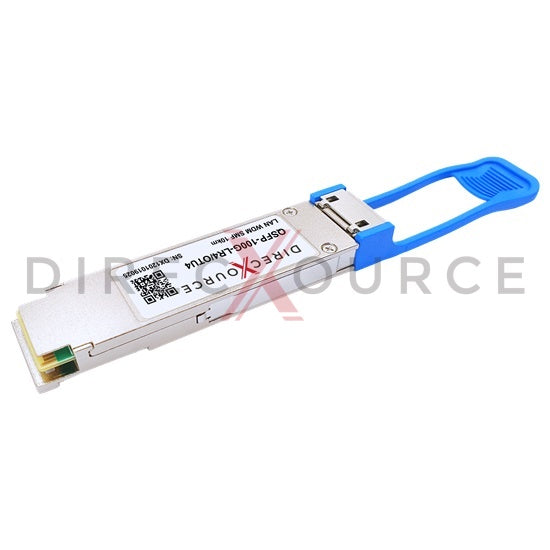

Cisco QSFP-100/112G-LR4-20 Compatible 100GBASE-LR4/OTU4 QSFP28 1310nm 10km SMF LC DOM Optical Transceiver Module
Cisco QSFP-100/112G-LR4-20 compatible optical transceiver is a parallel 103.1Gbps Quad Small Form-factor Pluggable QSFP28 module for use in 100GBASE Ethernet. QSFP28 LR4/OTU4 provides 100Gb/s throughput up to 10km over single-mode fiber (SMF) with host FEC using 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm wavelength. This transceiver is fully compliant with QSFP28 Multi-Source Agreement (MSA), IEEE 802.3ba 100GBASE-LR4 and CAUI-4 standard. Its electrical interface is MSA compliant 38-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex QSFP28 transceiver implements 4 independent 25.78125 Gbps transmit and receive channels in each wavelength for an aggregate 100 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Cisco QSFP-100/112G-LR4-20 transceivers.
Feature
- Equivalent to Cisco QSFP-100/112G-LR4-20 in function
- Hot pluggable QSFP28 form factor
- Aggregate data rate up to 103.1Gbps
- 4 channels 1310nm LAN-WDM DML transmitter
- 4 channels PIN photo receiver
- Duplex LC optical connector
- Link distances up to SMF 10km with host FEC
- 4x 25.78125Gbps NRZ retimed CUAI-4 electrical interface
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 3.5W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with SFF-8665, SFF-8661, SFF-8679, SFF-8636
- Compliant with IEEE 802.3ba 100GBASE-LR4
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 100G Ethernet
- Data Center
Specification
| Cisco Compatible P/N | QSFP-100/112G-LR4-20 | Form Factor | QSFP28 |
| Max Data Rate | 103.1Gbps | Max Distance | 10km (6.2 miles) |
| Wavelength | 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm | Connector | Duplex LC |
| DDM/DOM | Support | Media | SMF |
| Transmitter Type | 4x LAN-WDM DML | Receiver Type | PIN |
| Transmitter Power | -4.3 to 4.5dBm | Receiver Sensitivity | < -10.6dBm |
| Extinction Ratio | 4dB | Receiver Overload | 4.5dBm |
| Transmit and Dispersion Penalty | 2.2dB | Power Budget | 6.3dB |
| OE Packaging | Box Packaging | Signal Conditioner | Retimer for TX and RX |
| Modulation Format | NRZ | Host FEC | Support |
| Power Consumption | 3.5W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
