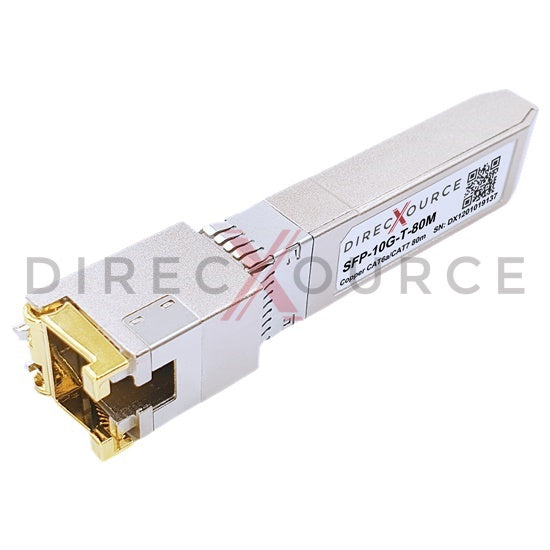

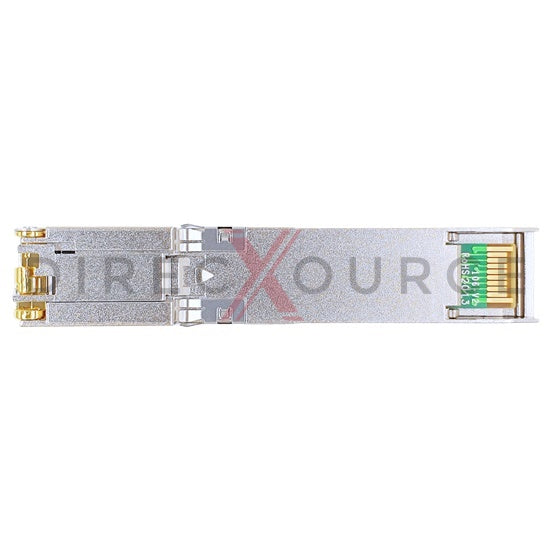

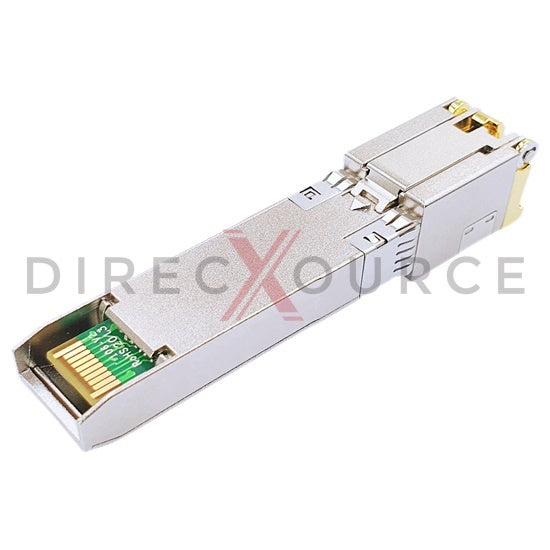

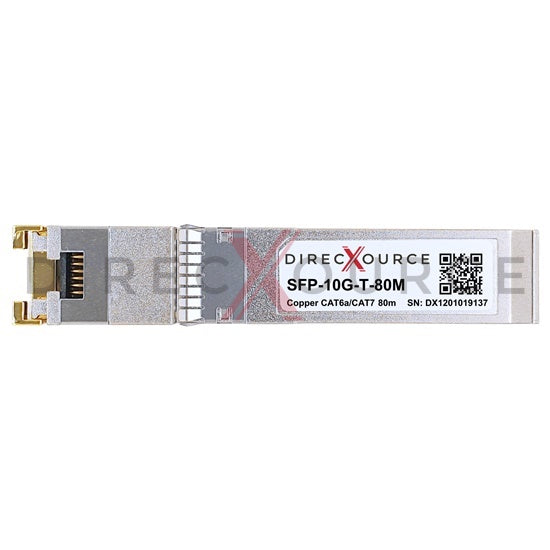

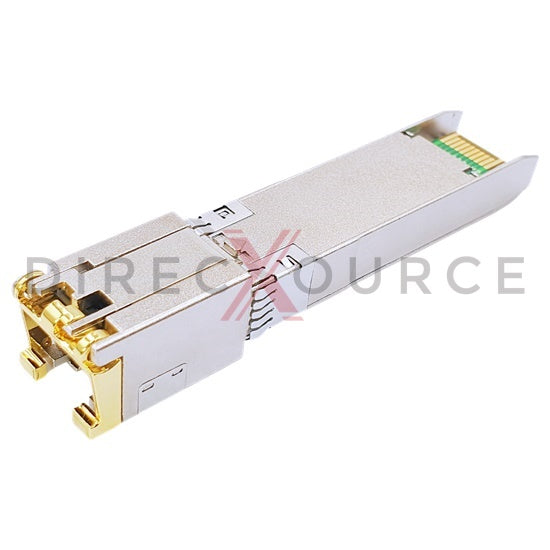

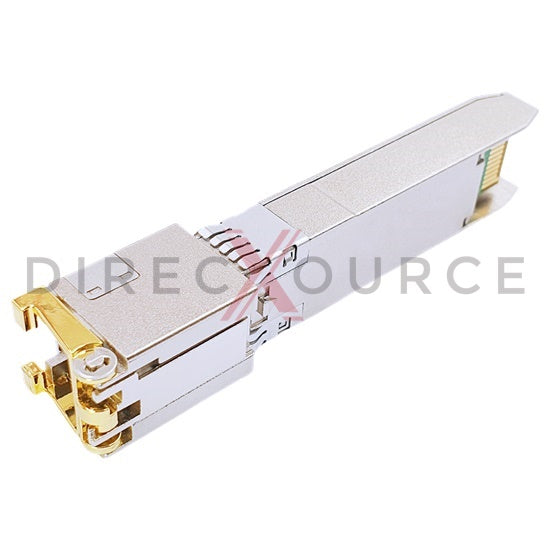

Cisco SFP-10G-T-80 Compatible 10GBASE-T SFP+ RJ45 80m CAT6a/CAT7 Copper Transceiver Module
Cisco SFP-10G-T-80 compatible copper transceiver is a single channel 10.3Gbps Small Form-factor Pluggable SFP+ module for use in 10GBASE Ethernet. SFP+ 10G-T-80M provides 10Gb/s throughput up to 80 meters over CAT6a/CAT7 twisted network cable. This transceiver is fully compliant with SFP+ Multi-Source Agreement (MSA), IEEE 802.3an 10GBASE-T and SFI standard. Its electrical interface is MSA compliant 20-pin edge type connector and the line-side interface is RJ45 connector. The full-duplex SFP+ transceiver offers high performance interconnection at 10 Gbps data rate. Ultra low power consumption and longer transmission distance (1.6W for 30m, 2W for 80m), compatible with various brands of hosts, widely used in data centers and enterprise networks. Our modules are factory pre-programmed for compatibility, perform identically to original Cisco SFP-10G-T-80 transceivers.
Feature
- Equivalent to Cisco SFP-10G-T-80 in function
- Hot pluggable SFP+ form factor
- Data rate up to 10.3Gbps
- Conversion between host-side 10GBASE-R and line-side 10GBSAE-T
- RJ45 connector
- Auto-sense MDI/MDIX
- Supports 10GBASE-T using 80m Cat 6a/7 cable
- MSA memory accessible via 2-wire interface
- Single 3.3V power supply voltage
- Low power consumption (1.6W @ 10Gbps 30m, 2.0W @ 10Gbps 80m)
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with SFF-8431, SFF-8432, SFF-8419, SFF-8472
- Compliant with IEEE 802.3an 10GBASE-T
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 10G Ethernet
- 10G Fibre Channel
- 10G CPRI
- 10G SONET/SDH
Specification
Cisco Compatible P/N | SFP-10G-T-80 | Form Factor | SFP+ |
Max Data Rate | 10.3Gbps | Max Distance | 80m (262ft) |
Connector | RJ45 | Media | CAT6a/CAT7 |
Modulation Format | PAM16 | DDM/DOM | Not support |
Power Consumption | 2W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
