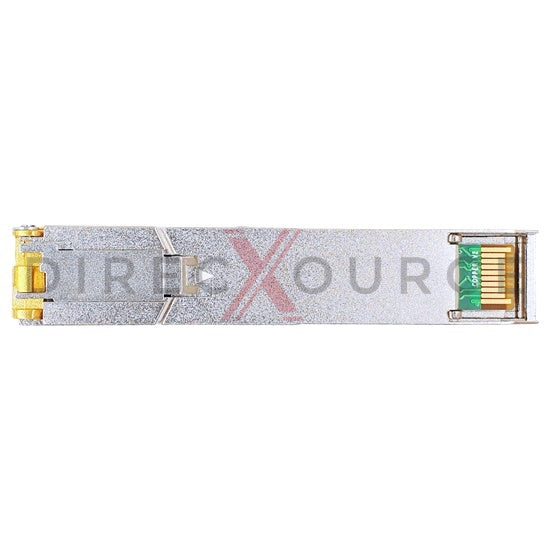

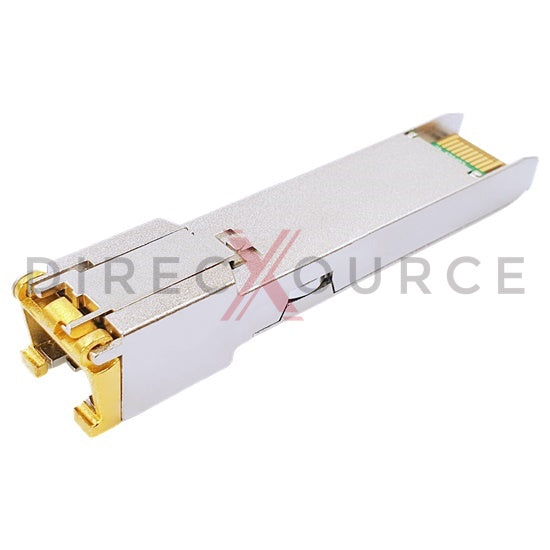

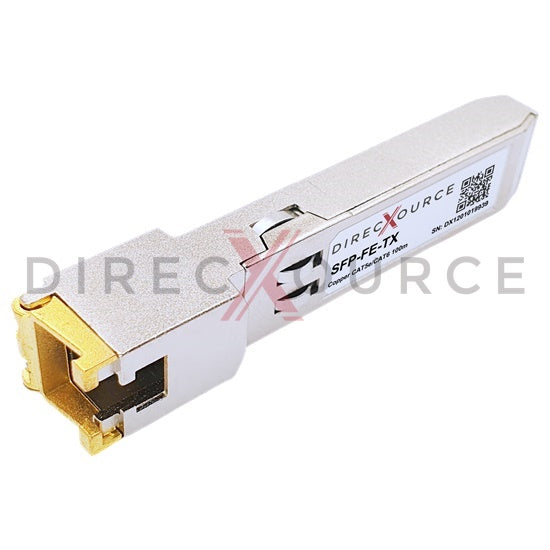

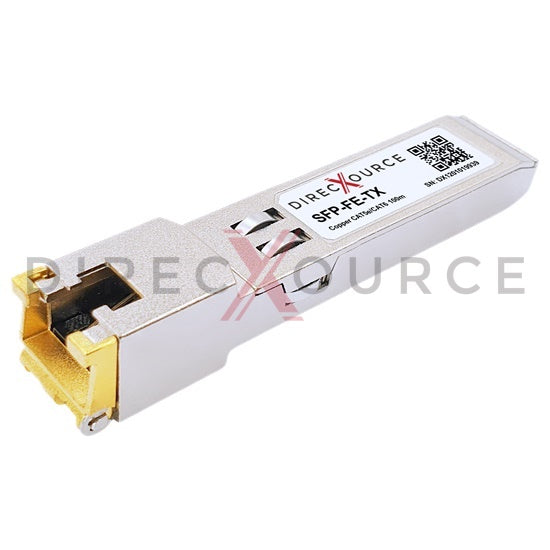

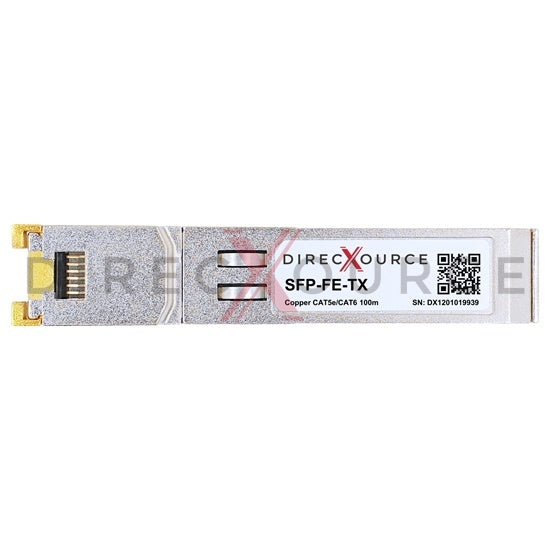

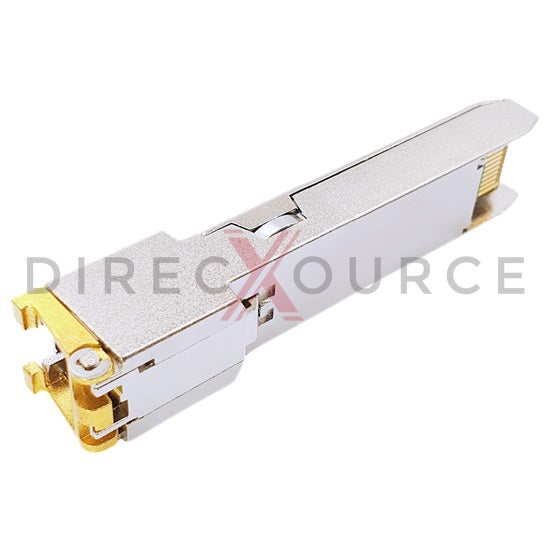

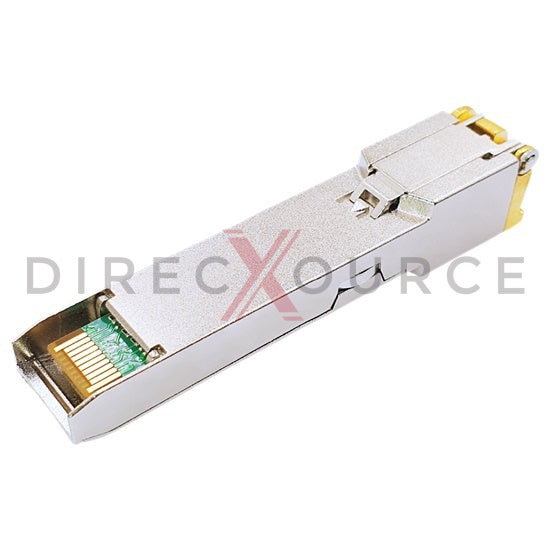

Dell Force10 Networks GP-SFP2-1T-C Compatible 100BASE-TX SFP RJ45 100m CAT6/CAT6a Copper Transceiver Module

Dell Force10 Networks GP-SFP2-1T-C Compatible 100BASE-TX SFP RJ45 100m CAT6/CAT6a Copper Transceiver Module

Dell Force10 Networks GP-SFP2-1T-C compatible copper transceiver is a single channel 100Mbps Small Form-factor Pluggable SFP module for use in 100BASE Ethernet. SFP FE-TX provides 100Mb/s throughput up to 100 meters over CAT5e twisted network cable. This transceiver is fully compliant with SFP Multi-Source Agreement (MSA), IEEE 802.3u 100BASE-TX and SERDES standard. Its electrical interface is MSA compliant 20-pin edge type connector and the line-side interface is RJ45 connector. The full-duplex SFP transceiver offers high performance interconnection at 100M bps data rate. Low power consumption (1W for 100m), compatible with various brands of hosts, widely used in data centers and enterprise networks. Our modules are factory pre-programmed for compatibility, perform identically to original Dell Force10 Networks GP-SFP2-1T-C transceivers.

Feature

• Equivalent to Dell Force10 Networks GP-SFP2-1T-C in function
• Hot pluggable SFP form factor
• Data rate up to 100Mbps
• Conversion between host-side 100BASE-X and line-side 100BASE-TX
• Auto-sense MDI/MDIX and auto-negotiation
• Supports 100BASE-TX using 100m Cat 5e cable
• MSA memory accessible via 2-wire interface
• Single 3.3V power supply voltage
• Low power consumption (1W TYP @100Mbps 100m)
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with INF-8074i, SFF-8472
• Compliant with IEEE 802.3u 100BASE-TX
• Compliant with RoHS, REACH, CE, FCC standards

Application

• Fast Ethernet

Specification
