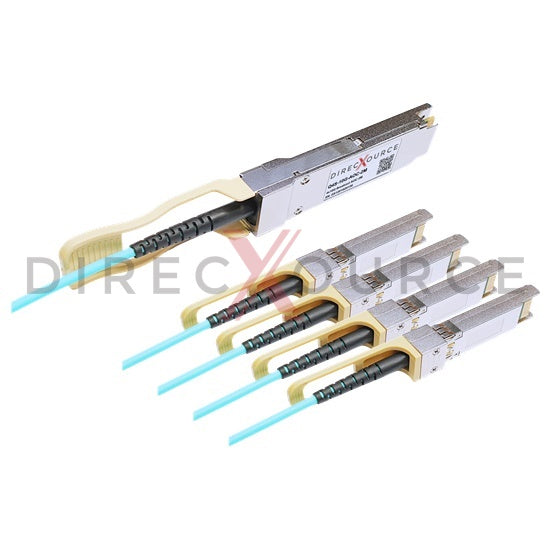

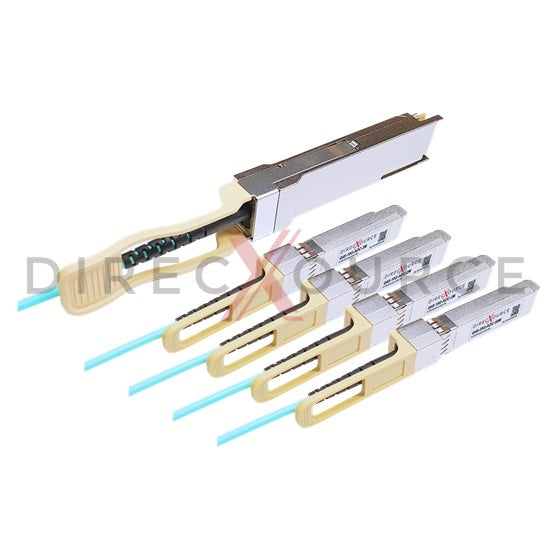

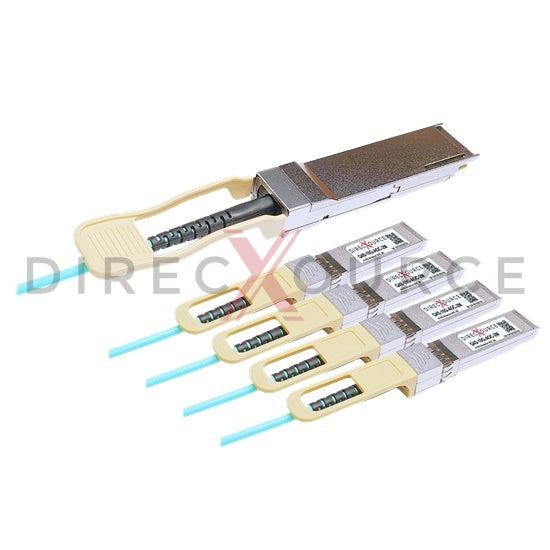

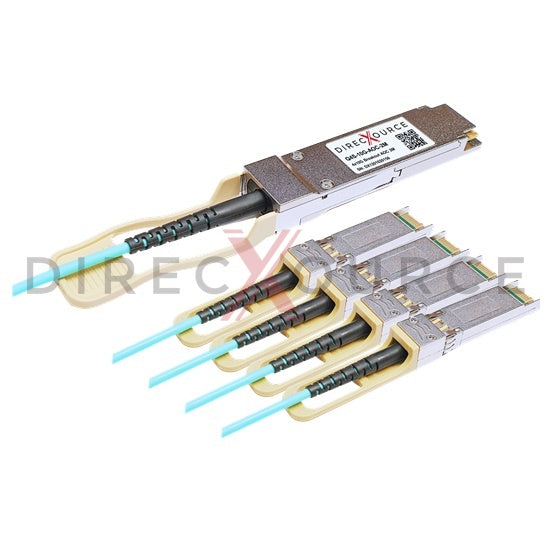

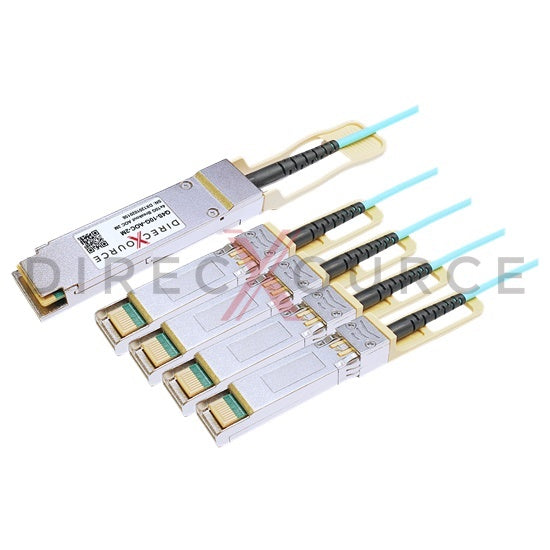

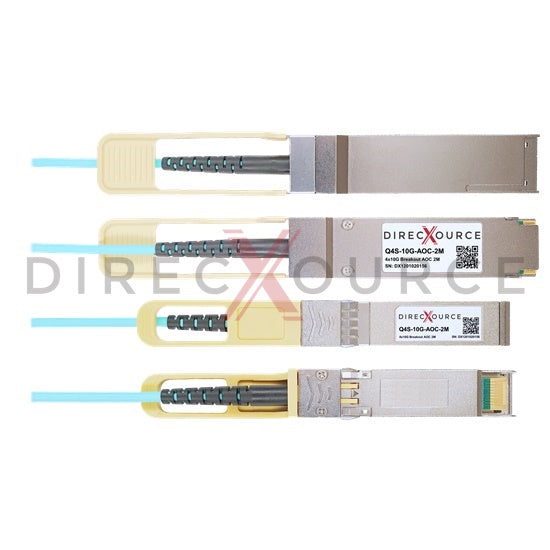

2m (6.56ft) Extreme Networks 10GB-4-F02-QSFP Compatible 40G QSFP+ to 4x10G SFP+ Breakout Active Optical Cable

2m (6.56ft) Extreme Networks 10GB-4-F02-QSFP Compatible 40G QSFP+ to 4x10G SFP+ Breakout Active Optical Cable

Extreme Networks 10GB-4-F02-QSFP compatible AOC is a 4x 10Gbps QSFP+ to 4 SFP+ active optical breakout cable for use in 10GBASE Ethernet. QSFP+ breakout AOC provides 10Gb/s throughput for 2m interconnection with laser-optimized multi-mode fiber optical cable. Standard length options cover from 1 meter to 30 meters. The breakout AOC cable splits 4x 10 Gbps NRZ signals from QSFP+ into SFP+. This AOC is fully compliant with QSFP+ Multi-Source Agreement (MSA), IEEE 802.3ae 10GBASE-CR and SFI standard. The active optical cable is pre-terminated with MSA compliant 38-pin and 20-pin edge type connectors. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our breakout AOCs are factory pre-programmed for compatibility, perform identically to original Extreme Networks 10GB-4-F02-QSFP direct attach cables.

Feature

• Equivalent to Extreme Networks 10GB-4-F02-QSFP in function
• Hot Pluggable QSFP+ to 4 SFP+ Topology
• Split 40Gbps into 4 channels of 10Gbps
• Pre-terminated Multi-mode fiber cable
• 4x 10.3125Gbps XLPPI/SFI electrical interface
• Minimum bending radius 7.5mm
• Built-in digital diagnostic via 2-wire interface
• Single 3.3V power supply voltage
• Power consumption < 1W/1W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with SFF-8436, SFF-8635, SFF-8661, SFF-8679, SFF-8636, SFF-8431, SFF-8432, SFF-8419, SFF-8472
• Compliant with IEEE 802.3ae 10GBASE-CR
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 10G Ethernet
• Data Center

Specification
