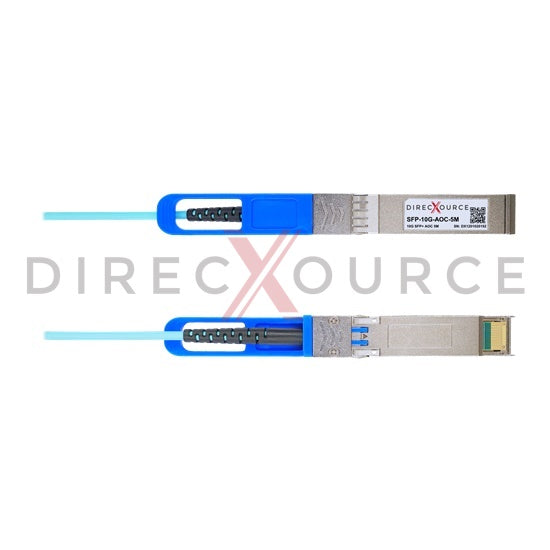

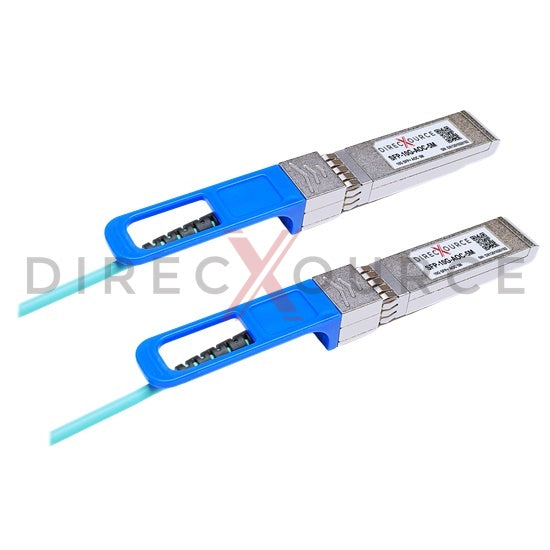

5m (16.4ft) H3C SFP-XG-D-AOC-5M Compatible 10G SFP+ Active Optical Cable
H3C SFP-XG-D-AOC-5M compatible AOC is a 10Gbps SFP+ to SFP+ active optical cable for use in 10GBASE Ethernet. SFP+ AOC provides 10Gb/s throughput for 5m interconnection with laser-optimized multi-mode fiber optical cable. Standard length options cover from 1 meter to 30 meters. This AOC is fully compliant with SFP+ Multi-Source Agreement (MSA), IEEE 802.3ae 10GBASE-CR and SFI standard. The active optical cable is pre-terminated with MSA compliant 20-pin edge type connectors. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our AOCs are factory pre-programmed for compatibility, perform identically to original H3C SFP-XG-D-AOC-5M direct attach cables.
Feature
- Equivalent to H3C SFP-XG-D-AOC-5M in function
- Hot Pluggable SFP+ to SFP+ Topology
- Data rate up to 10.3Gbps
- Pre-terminated Multi-mode fiber cable
- 10.3125Gbps SFI electrical interface
- Minimum bending radius 7.5mm
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 1W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with SFF-8431, SFF-8432, SFF-8419, SFF-8472
- Compliant with IEEE 802.3ae 10GBASE-CR
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 10G Ethernet
- Data Center
Specification
| H3C Compatible P/N | SFP-XG-D-AOC-5M | Topology | SFP+ to SFP+ |
| Max Data Rate | 10Gbps | Cable Length | 5m (16.4ft) |
| Cable Type | OM3 Multi Mode Fiber | Jacket Meterial | OFNP |
| Minimum Bend Radius | 7.5mm | Signal Conditioner | None |
| Power Consumption | 1W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
