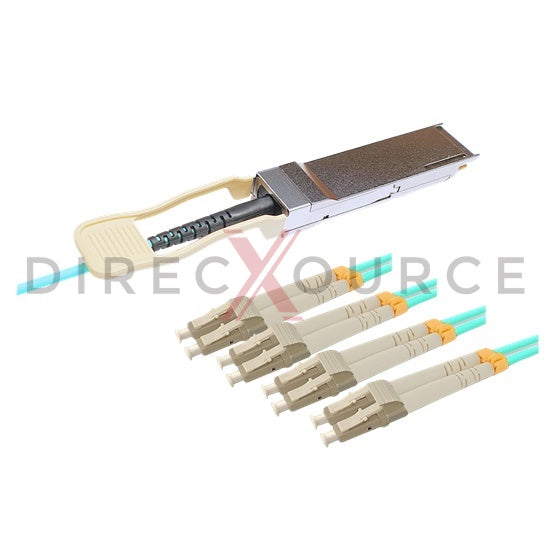

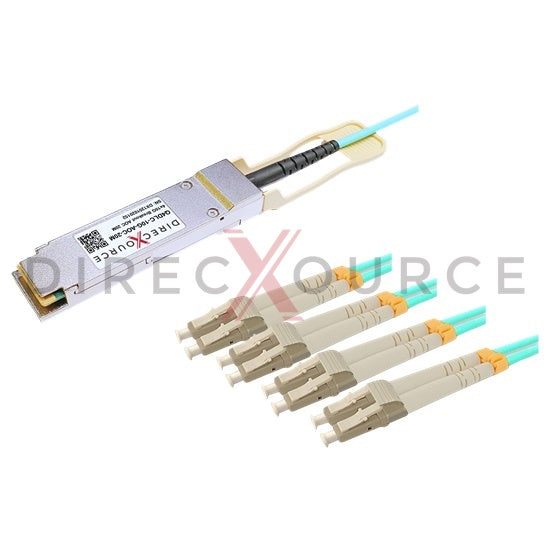

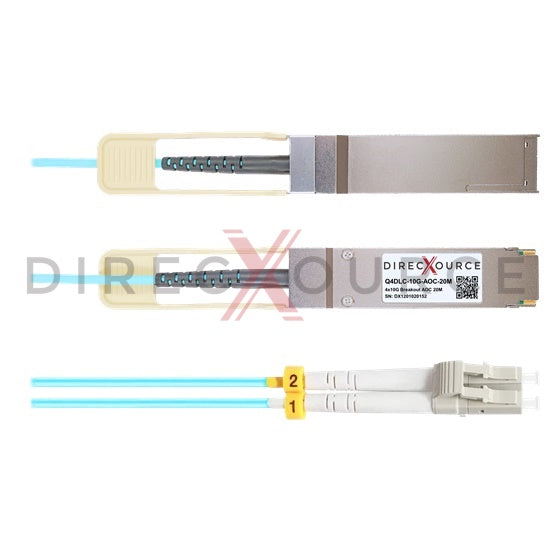

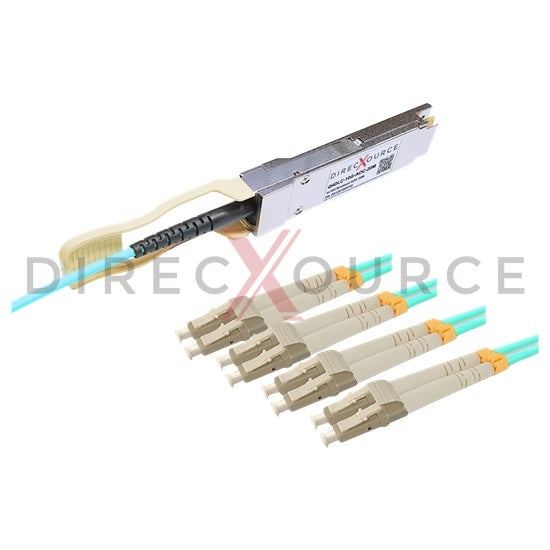

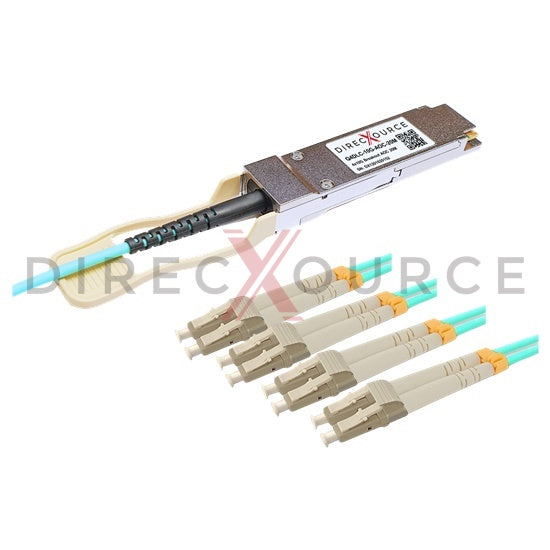

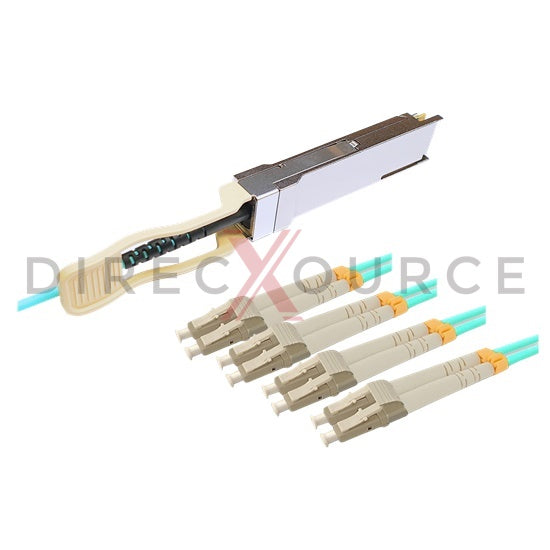

20m (65.62ft) Huawei QSFP-8LC-AOC20M Compatible 40G QSFP+ to 4x Duplex LC Breakout Active Optical Cable
Huawei QSFP-8LC-AOC20M compatible AOC is a 4x 10Gbps QSFP+ to 4 Duplex LC active optical breakout cable for use in 10GBASE Ethernet. QSFP+ breakout AOC provides 10Gb/s throughput for 20m interconnection with laser-optimized multi-mode fiber optical cable. Standard length options cover from 5 meters to 30 meters. The breakout AOC cable splits 4x 10 Gbps NRZ signals from QSFP+ into duplex LC. This AOC is fully compliant with QSFP+ Multi-Source Agreement (MSA), IEEE 802.3ae 10GBASE-CR and XLPPI standard. The active optical cable is pre-terminated with MSA compliant 38-pin edge type connectors. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our breakout AOCs are factory pre-programmed for compatibility, perform identically to original Huawei QSFP-8LC-AOC20M direct attach cables.
Feature
- Equivalent to Huawei QSFP-8LC-AOC20M in function
- Hot Pluggable QSFP+ to 4 Duplex LC Topology
- Split 40Gbps into 4 channels of 10Gbps
- Pre-terminated Multi-mode fiber cable
- 4x 10.3125Gbps XLPPI electrical interface
- Minimum bending radius 7.5mm
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 1W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with SFF-8436, SFF-8635, SFF-8661, SFF-8679, SFF-8636
- Compliant with IEEE 802.3ae 10GBASE-CR
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 10G Ethernet
- Data Center
Specification
| Huawei Compatible P/N | QSFP-8LC-AOC20M | Topology | QSFP+ to 4 Duplex LC |
| Max Data Rate | 4x 10Gbps | Cable Length | 20m (65.62ft) |
| Cable Type | OM3 Multi Mode Fiber | Jacket Meterial | OFNP |
| Minimum Bend Radius | 7.5mm | Signal Conditioner | None |
| Power Consumption | 1W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
