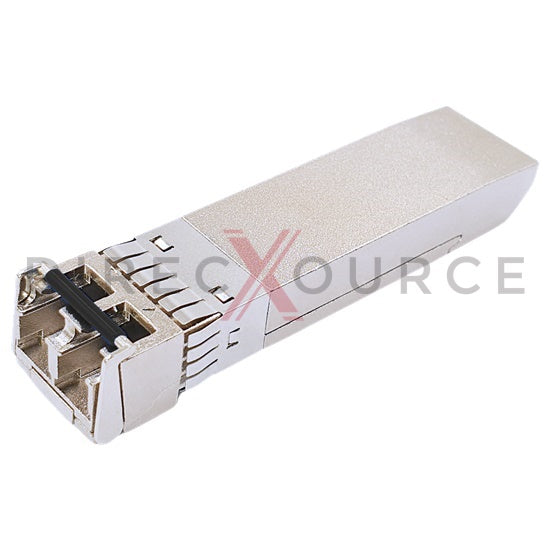

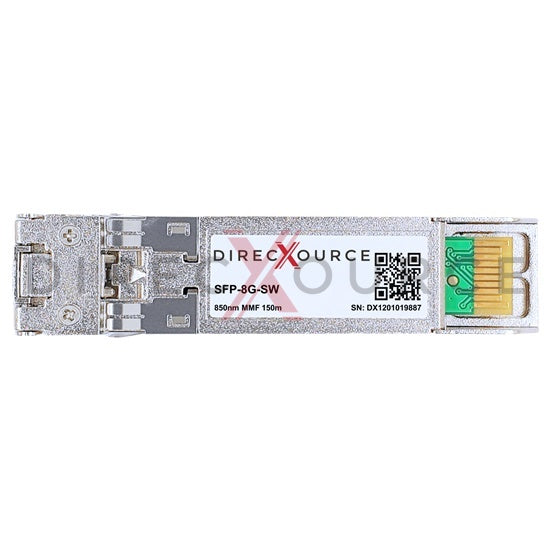

IBM Brocade 88Y6416 Compatible 8G Fibre Channel SFP+ 850nm 150m MMF LC DOM Optical Transceiver Module

IBM Brocade 88Y6416 Compatible 8G Fibre Channel SFP+ 850nm 150m MMF LC DOM Optical Transceiver Module

IBM Brocade 88Y6416 compatible optical transceiver is a dual fiber 8.5Gbps Small Form-factor Pluggable SFP+ module for use in 8G Fibre Channel Network. SFP+ 8G-SW provides 8Gb/s throughput up to 150 meters over OM3 multi-mode fiber (MMF) using 850nm wavelength. This transceiver is fully compliant with SFP+ Multi-Source Agreement (MSA) and FCIA FC-PI-4 800-M5E-SN-I standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP+ transceiver features highly reliable VCSEL transmitter and PIN photo detector to offer high performance interconnection at 8 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original IBM Brocade 88Y6416 transceivers.

Feature

• Equivalent to IBM Brocade 88Y6416 in function
• Hot pluggable SFP+ form factor
• Data rate up to 8.5Gbps
• 850nm VCSEL transmitter
• PIN photo receiver
• Duplex LC optical connector
• Link distances up to MMF 150m
• Built-in digital diagnostic via 2-wire interface
• Single 3.3V power supply voltage
• Power consumption < 1W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with SFF-8431, SFF-8432, SFF-8472
• Compliant with FCIA FC-PI-4 800-M5E-SN-I
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 8G Fibre Channel
• 4G Fibre Channel
• 2G Fibre Channel

Specification
