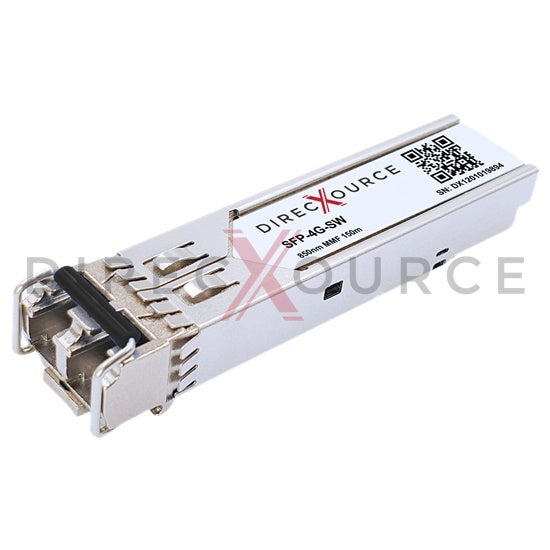

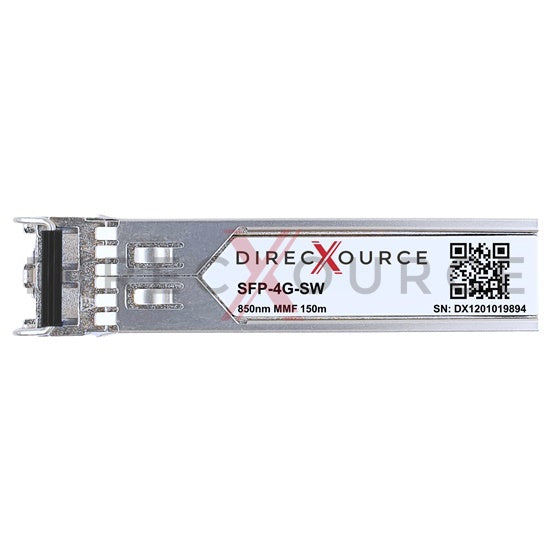

Intel TXN31115D000000 Compatible 4G Fibre Channel SFP 850nm 150m MMF LC DOM Optical Transceiver Module

Intel TXN31115D000000 Compatible 4G Fibre Channel SFP 850nm 150m MMF LC DOM Optical Transceiver Module

Intel TXN31115D000000 compatible optical transceiver is a dual fiber 4.25Gbps Small Form-factor Pluggable SFP module for use in 4G Fibre Channel Network. SFP 4G-SW provides 4Gb/s throughput up to 150 meters over OM2 multi-mode fiber (MMF) using 850nm wavelength. This transceiver is fully compliant with SFP Multi-Source Agreement (MSA) and FCIA FC-PI-4 400-M5-SN-I standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP transceiver features highly reliable VCSEL transmitter and PIN photo detector to offer high performance interconnection at 4 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Intel TXN31115D000000 transceivers.

Feature

• Equivalent to Intel TXN31115D000000 in function
• Hot pluggable SFP form factor
• Data rate up to 4.25Gbps
• 850nm VCSEL transmitter
• PIN photo receiver
• Duplex LC optical connector
• Link distances up to MMF 150m
• Built-in digital diagnostic via 2-wire interface
• Single 3.3V power supply voltage
• Power consumption < 1W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with INF-8074i, SFF-8472
• Compliant with FCIA FC-PI-4 400-M5-SN-I
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 4G Fibre Channel
• 2G Fibre Channel

Specification
