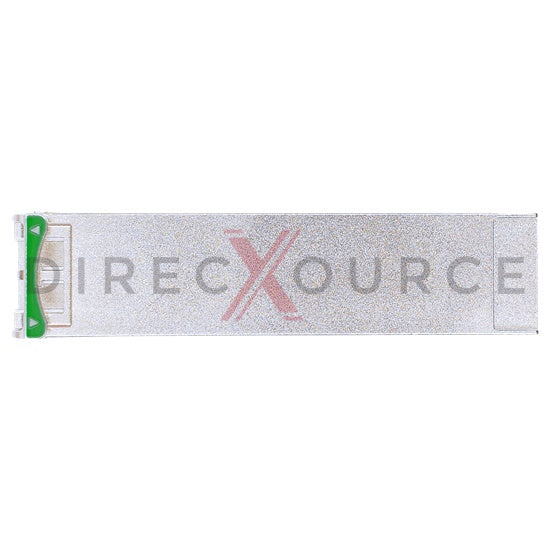

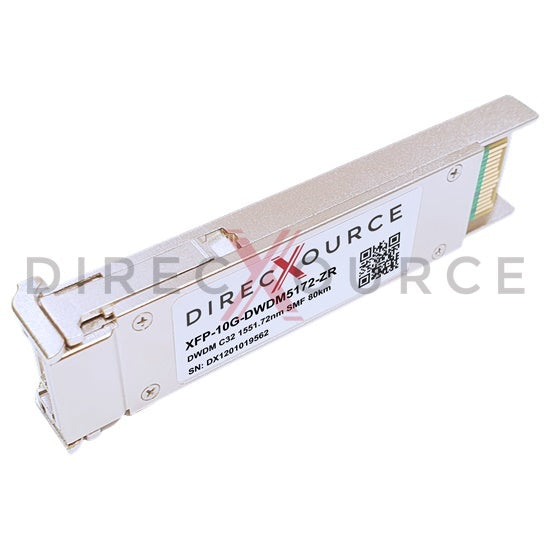

Juniper Networks DWDM-XFP-51.72 Compatible 10GBASE-DWDM XFP 100GHz C32 1551.72nm 80km SMF LC DOM Optical Transceiver Module

Juniper Networks DWDM-XFP-51.72 Compatible 10GBASE-DWDM XFP 100GHz C32 1551.72nm 80km SMF LC DOM Optical Transceiver Module

Juniper Networks DWDM-XFP-51.72 compatible optical transceiver is a dual fiber 10.3Gbps Form-factor Pluggable XFP DWDM module for use in 10GBASE Ethernet. XFP DWDM5172-ZR provides 10Gb/s throughput up to 80km over single-mode fiber (SMF) using 1551.72nm wavelength. This transceiver is fully compliant with XFP Multi-Source Agreement (MSA), IEEE 802.3 10GBASE-DWDM and XFI standard. Its electrical interface is MSA compliant 30-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex XFP transceiver features highly reliable DWDM EML transmitter and APD photo detector to offer high performance interconnection at 10 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Juniper Networks DWDM-XFP-51.72 transceivers.

Feature

• Equivalent to Juniper Networks DWDM-XFP-51.72 in function
• Hot pluggable XFP form factor
• Data rate up to 10.3Gbps
• C32 1551.72nm DWDM EML transmitter
• APD photo receiver
• Duplex LC optical connector
• Link distances up to SMF 80km
• Built-in digital diagnostic via 2-wire interface
• Single 3.3V power supply voltage
• Power consumption < 3.5W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with INF-8077i
• Compliant with IEEE 802.3 10GBASE-DWDM
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 10G Ethernet
• 10G SONET/SDH

Specification
