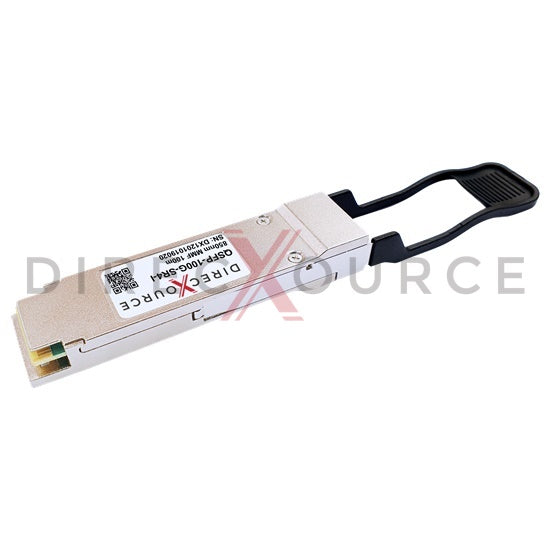

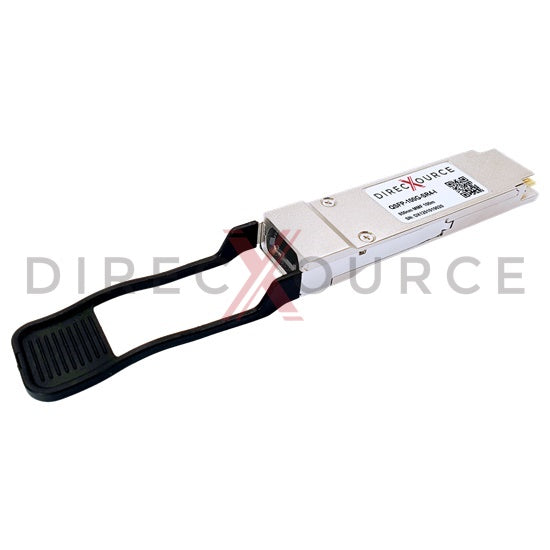

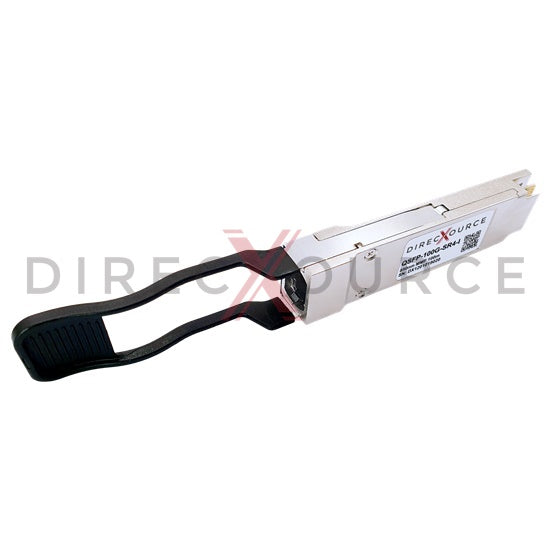

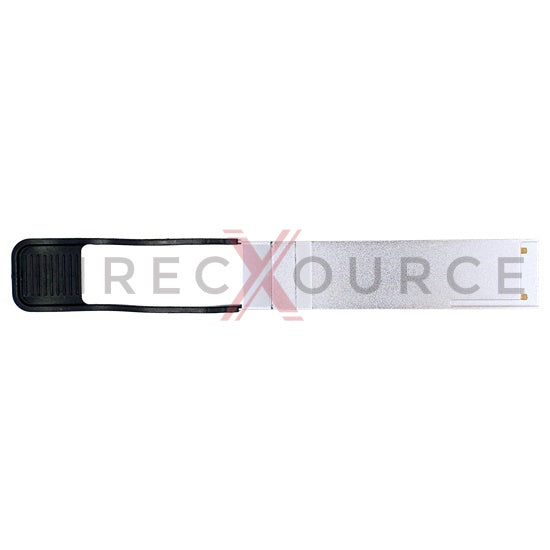

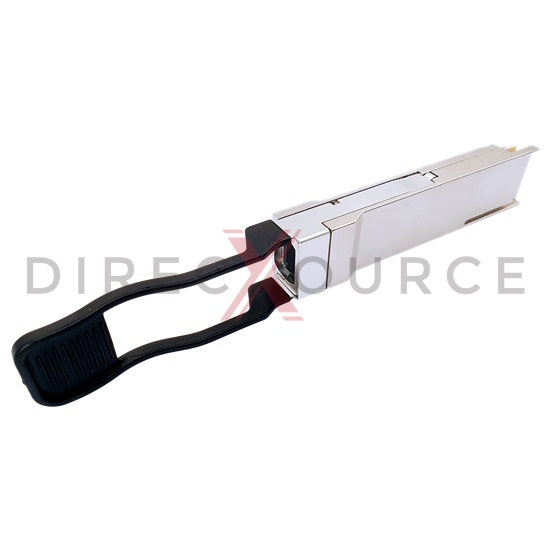

Juniper Networks JNP-QSFP-100G-SR4-I Compatible Industrial 100GBASE-SR4 QSFP28 850nm 100m MMF MTP/MPO-12 DOM Optical Transceiver Module

Juniper Networks JNP-QSFP-100G-SR4-I Compatible Industrial 100GBASE-SR4 QSFP28 850nm 100m MMF MTP/MPO-12 DOM Optical Transceiver Module

Juniper Networks JNP-QSFP-100G-SR4-I compatible optical transceiver is an industrial parallel 103.1Gbps Quad Small Form-factor Pluggable QSFP28 module for use in 100GBASE Ethernet. QSFP28 SR4-I provides 100Gb/s throughput up to 100 meters over OM4 or 70 meters over OM3 multi-mode fiber (MMF) with host FEC using 850nm wavelength. This transceiver is fully compliant with QSFP28 Multi-Source Agreement (MSA), IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standard. Its electrical interface is MSA compliant 38-pin edge type connector and the optical interface is MTP/MPO-12 connector. The full-duplex QSFP28 transceiver implements 4 independent 25.78125 Gbps transmit and receive channels in each fiber for an aggregate 100 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Juniper Networks JNP-QSFP-100G-SR4-I transceivers.

Feature

• Equivalent to Juniper Networks JNP-QSFP-100G-SR4-I in function
• Hot pluggable QSFP28 form factor
• Aggregate data rate up to 103.1Gbps
• 4 channels 850nm VCSEL transmitter
• 4 channels PIN photo receiver
• MTP/MPO-12 optical connector
• Link distances up to OM4 100m, OM3 700m
• Built-in digital diagnostic via 2-wire interface
• Single 3.3V power supply voltage
• Power consumption < 3.5W
• Ambient temperature range -40 to 85°C for industrial application
• Compliant with SFF-8665, SFF-8661, SFF-8679, SFF-8636
• Compliant with IEEE 802.3bm 100GBASE-SR4
• Compliant with RoHS, REACH, CE, FCC standards

Application

• Data Center

Specification
