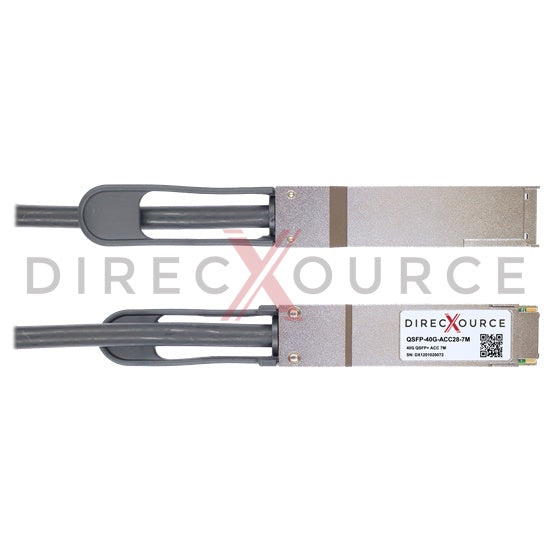

7m (22.97ft) Juniper Networks JNP-QSFP-DAC-7MA Compatible 40G QSFP+ Active Direct Attach Twinax Copper Cable

7m (22.97ft) Juniper Networks JNP-QSFP-DAC-7MA Compatible 40G QSFP+ Active Direct Attach Twinax Copper Cable

Juniper Networks JNP-QSFP-DAC-7MA compatible DAC is an active 40Gbps QSFP+ to QSFP+ direct attach cable for use in 40GBASE Ethernet. QSFP+ active DAC provides 40Gb/s throughput for 7m interconnection with high speed twin-axial copper cable. Standard length options cover from 1 meter to 10 meters. This DAC is fully compliant with QSFP+ Multi-Source Agreement (MSA), IEEE 802.3ba 40GBASE-CR4 and XLPPI standard. The twin-axial copper cable's wire gauge is 28AWG and pre-terminated with MSA compliant 38-pin edge type connectors. MSA memory map are accessible via 2-wire Interface (TWI/I2C). Our active DACs are factory pre-programmed for compatibility, perform identically to original Juniper Networks JNP-QSFP-DAC-7MA direct attach cables.

Feature

• Equivalent to Juniper Networks JNP-QSFP-DAC-7MA in function
• Hot Pluggable QSFP+ to QSFP+ Topology
• Aggregate data rate up to 40Gbps
• Pre-terminated 28AWG twin-axial copper cable
• 4x 10.3125Gbps XLPPI electrical interface
• Minimum bending radius 37.5mm
• MSA memory accessible via 2-wire interface
• Single 3.3V power supply voltage
• Power consumption < 1.5W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with SFF-8436, SFF-8635, SFF-8661, SFF-8679, SFF-8636
• Compliant with IEEE 802.3ba 40GBASE-CR4
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 40G Ethernet
• Data Center

Specification
