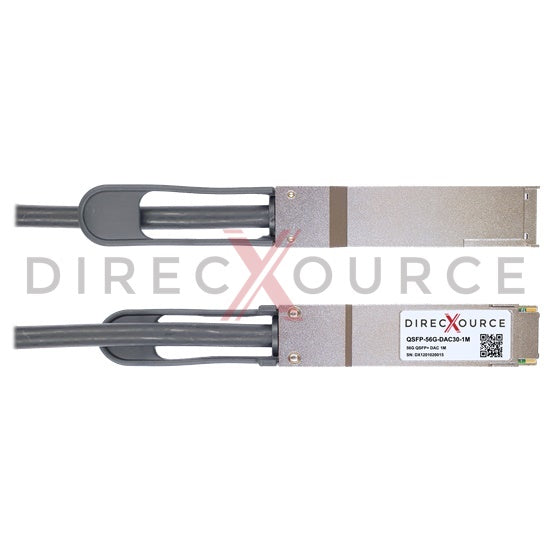

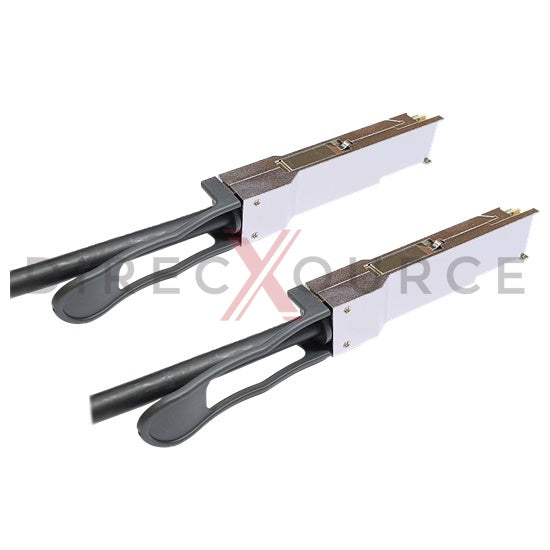

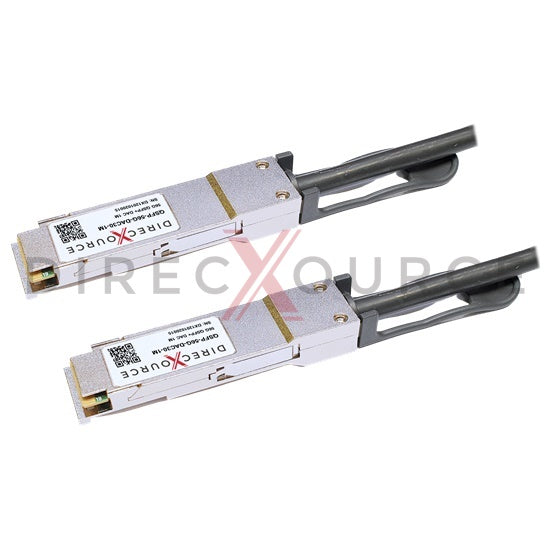

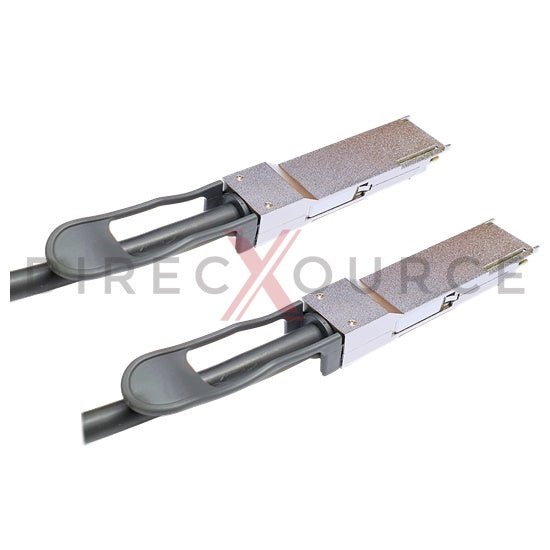

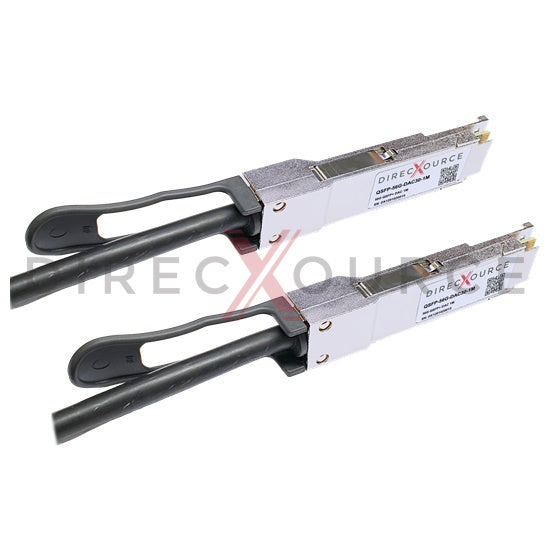

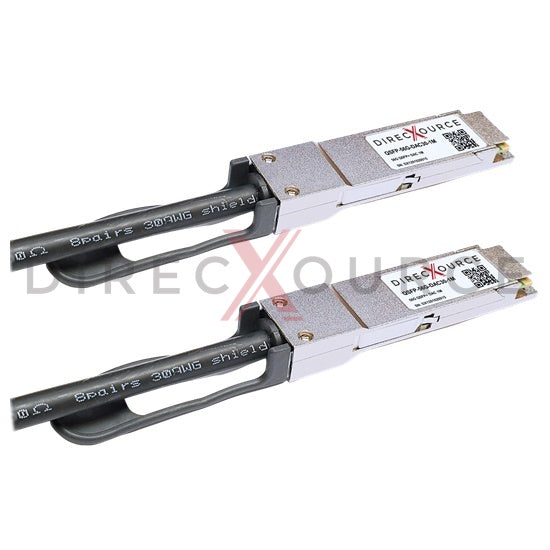

1m (3.28ft) Mellanox MC2207130-001 Compatible 56G QSFP+ Passive Direct Attach Twinax Copper Cable

Mellanox MC2207130-001 compatible DAC is a passive 56Gbps QSFP+ to QSFP+ direct attach cable for use in 56G InfiniBand. QSFP+ DAC provides 56Gb/s throughput for 1m interconnection with high speed twin-axial copper cable. Standard length options cover from 0.5 meters to 5 meters. The QSFP+ DAC cable implements 4 independent 14 Gbps NRZ transmit and receive signal channels in each differential pair for an aggregate 56 Gbps data rate. This DAC is fully compliant with QSFP+ Multi-Source Agreement (MSA) and InfiniBand 4X FDR standard. The twin-axial copper cable's wire gauge is 30AWG and pre-terminated with MSA compliant 38-pin edge type connectors. MSA memory map are accessible via 2-wire Interface (TWI/I2C). Our DACs are factory pre-programmed for compatibility, perform identically to original Mellanox MC2207130-001 direct attach cables.

Feature

  • Equivalent to Mellanox MC2207130-001 in function
  • Hot Pluggable QSFP+ to QSFP+ Topology
  • Aggregate data rate up to 56Gbps
  • Pre-terminated 30AWG twin-axial copper cable
  • 4x 14.0625Gbps fourteen data rate NRZ electrical interface
  • Minimum bending radius 35mm
  • MSA memory accessible via 2-wire interface
  • Single 3.3V power supply voltage
  • Extremely low power consumption near 0W
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with SFF-8685, SFF-8661, SFF-8679, SFF-8636
  • Compliant with InfiniBand 4X FDR
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 56G 4X FDR Infiniband

Specification

Mellanox Compatible P/N MC2207130-001 Topology QSFP+ to QSFP+
Max Data Rate 56Gbps Cable Length 1m (3.28ft)
Cable Type Twinax Wire Gauge 30AWG
Jacket Meterial OFNR (PVC) Minimum Bend Radius 35mm
Power Consumption 0W Commercial Temperature Range 0 to 70°C (32 to 158°F)
