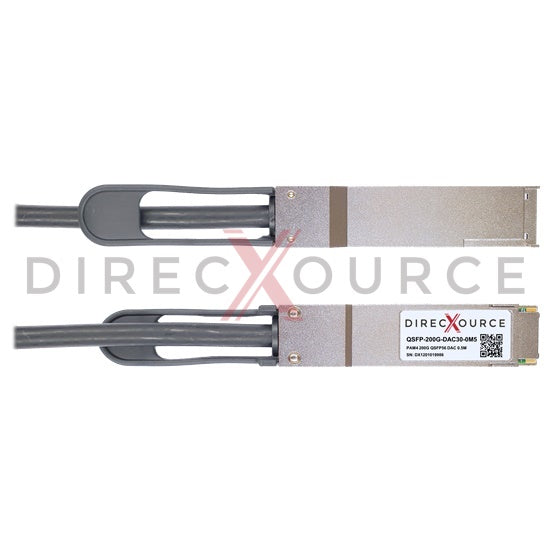

0.5m (1.64ft) Mellanox MCP1650-V0005 Compatible 200G QSFP56 PAM4 Passive Direct Attach Twinax Copper Cable

0.5m (1.64ft) Mellanox MCP1650-V0005 Compatible 200G QSFP56 PAM4 Passive Direct Attach Twinax Copper Cable

Mellanox MCP1650-V0005 compatible DAC is a passive 200Gbps QSFP56 to QSFP56 direct attach cable for use in 200GBASE Ethernet. QSFP56 DAC provides 200Gb/s throughput for 0.5m interconnection with high speed twin-axial copper cable. Standard length options cover from 0.5 meters to 3 meters. The QSFP56 DAC cable implements 4 independent 50 Gbps PAM4 transmit and receive signal channels in each differential pair for an aggregate 200 Gbps data rate. It also supports 4 channels 25 Gbps NRZ signals for 100 Gbps interconnection. This DAC is fully compliant with QSFP56 Multi-Source Agreement (MSA), IEEE 802.3cd 200GBASE-CR4 and 200GAUI-4 standard. The twin-axial copper cable's wire gauge is 30AWG and pre-terminated with MSA compliant 38-pin edge type connectors. MSA memory map are accessible via 2-wire Interface (TWI/I2C). Our DACs are factory pre-programmed for compatibility, perform identically to original Mellanox MCP1650-V0005 direct attach cables.

Feature

• Equivalent to Mellanox MCP1650-V0005 in function
• Hot Pluggable QSFP56 to QSFP56 Topology
• Aggregate data rate up to 200Gbps
• Pre-terminated 30AWG twin-axial copper cable
• 4x 53.125Gbps PAM4 retimed 200GUAI-4 electrical interface
• Minimum bending radius 35mm
• MSA memory accessible via 2-wire interface
• Single 3.3V power supply voltage
• Extremely low power consumption near 0W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with SFF-8665, SFF-8661, SFF-8679, SFF-8636
• Compliant with IEEE 802.3cd 200GBASE-CR4
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 200G Ethernet
• Data Center

Specification
