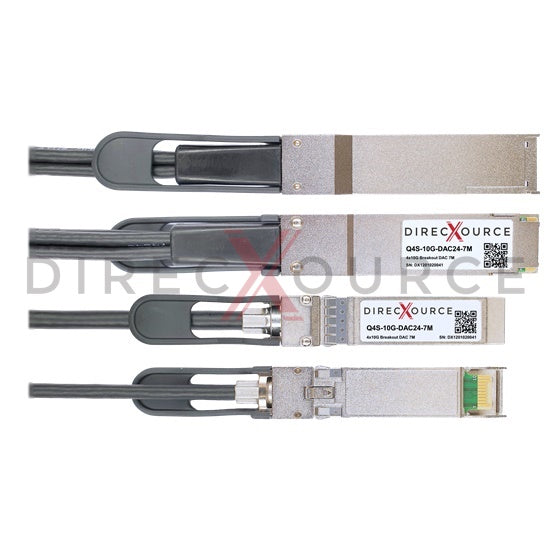

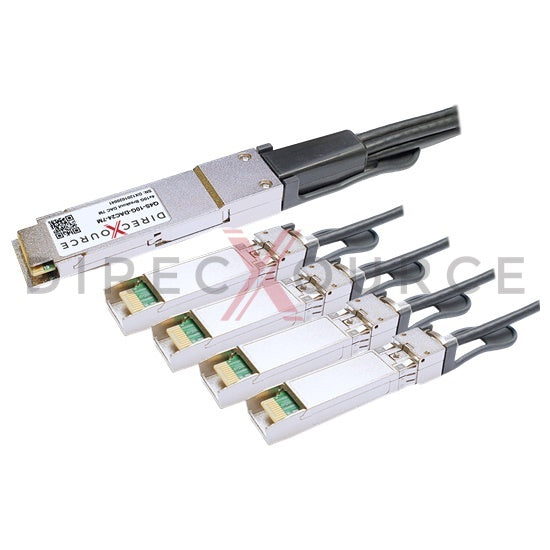

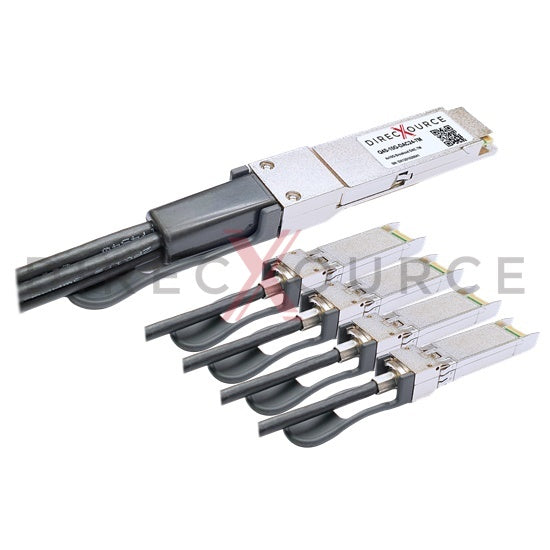

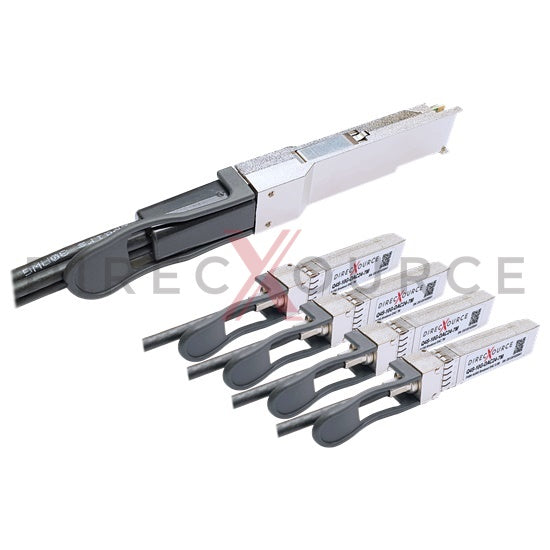

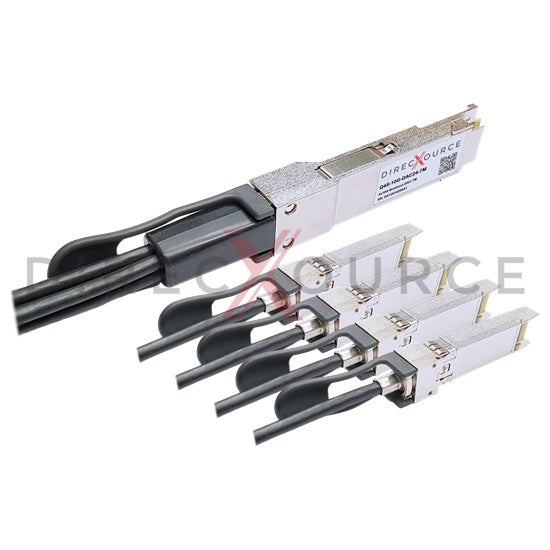

7m (22.97ft) Generic Compatible Q4S-10G-DAC24-7M 40G QSFP+ to 4x10G SFP+ Passive Direct Attach Twinax Breakout Copper Cable

7m (22.97ft) Generic Compatible Q4S-10G-DAC24-7M 40G QSFP+ to 4x10G SFP+ Passive Direct Attach Twinax Breakout Copper Cable

direcXource's Q4S-10G-DAC24-7M DAC is a passive 4x 10Gbps QSFP+ to 4 SFP+ direct attach breakout cable for use in 10GBASE Ethernet. QSFP+ breakout DAC provides 4x 10Gb/s throughput for 7m interconnection with high speed twin-axial copper cable. Standard length options cover from 0.5 meters to 7 meters. The breakout DAC cable splits 4x 10 Gbps NRZ signals from QSFP+ into SFP+. This DAC is fully compliant with QSFP+ Multi-Source Agreement (MSA), IEEE 802.3ae 10GBASE-CR and SFI standard. The twin-axial copper cable's wire gauge is 24AWG and pre-terminated with MSA compliant 38-pin and 20-pin edge type connectors. MSA memory map are accessible via 2-wire Interface (TWI/I2C). Our breakout DACs are factory pre-programmed for compatibility, perform identically to generic MSA direct attach cables.

Feature

• Hot Pluggable QSFP+ to 4 SFP+ Topology
• Split 40Gbps into 4 channels of 10Gbps
• Pre-terminated 24AWG twin-axial copper cable
• 4x 10.3125Gbps XLPPI/SFI electrical interface
• Minimum bending radius 30mm
• MSA memory accessible via 2-wire interface
• Single 3.3V power supply voltage
• Extremely low power consumption near 0W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with SFF-8436, SFF-8635, SFF-8636, SFF-8431, SFF-8432, SFF-8431, SFF-8432, SFF-8419, SFF-8472
• Compliant with IEEE 802.3ae 10GBASE-CR
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 10G Ethernet
• Data Center
