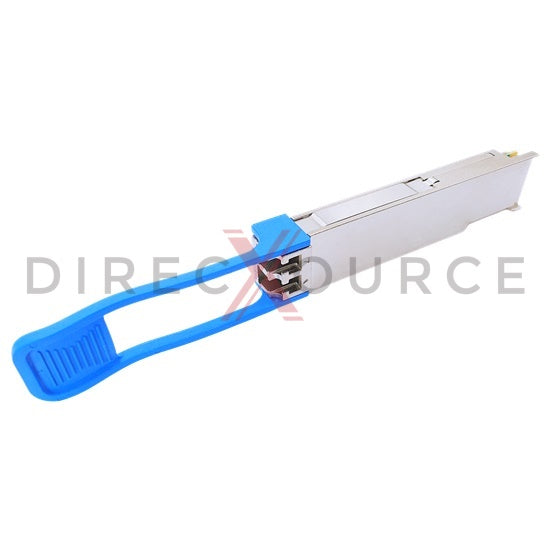

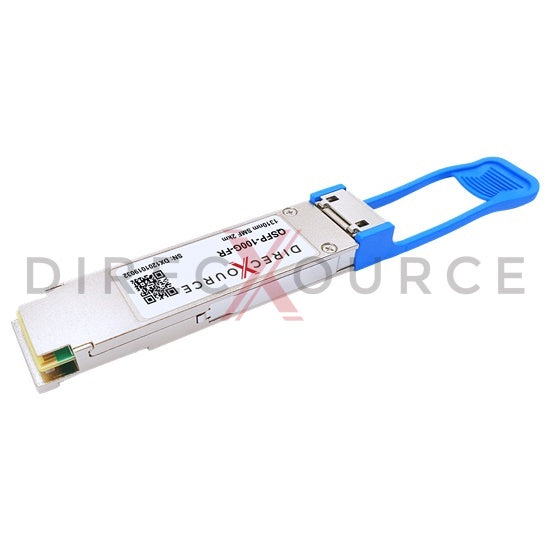

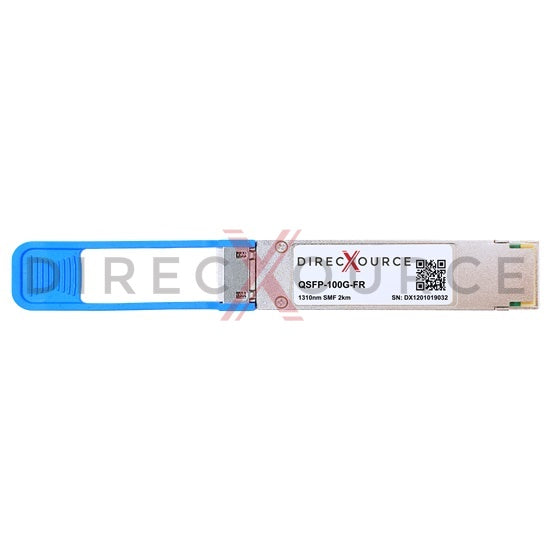

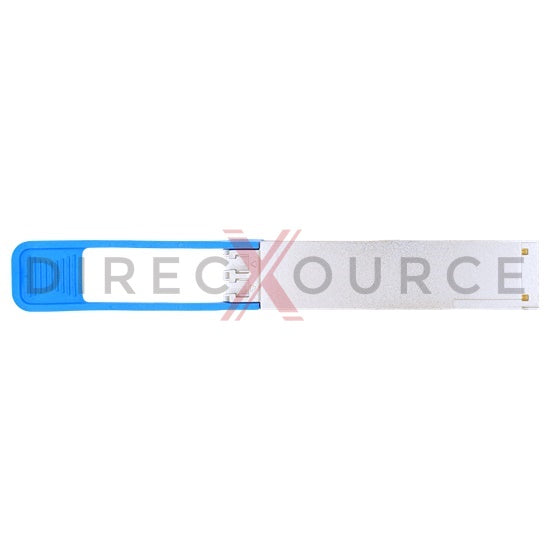

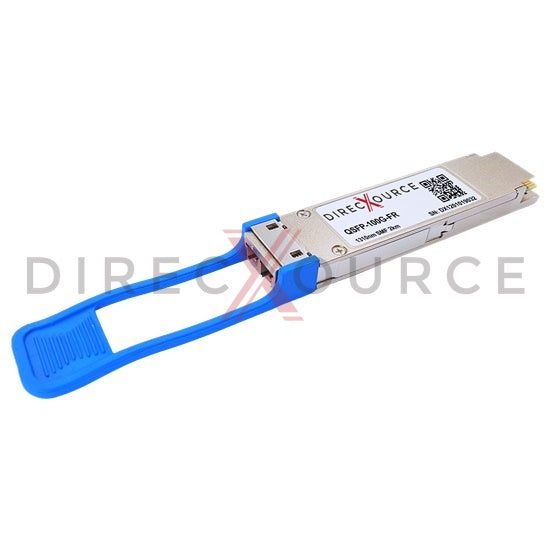

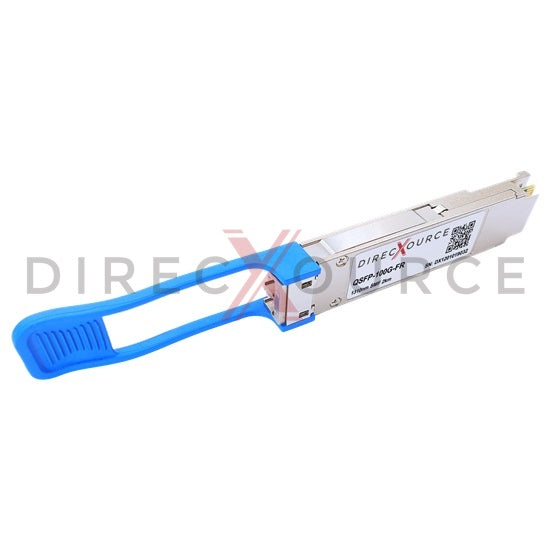

Generic Compatible QSFP-100G-FR Single Lambda 100GBASE-FR QSFP28 PAM4 1310nm 2km SMF LC DOM Optical Transceiver Module

Generic Compatible QSFP-100G-FR Single Lambda 100GBASE-FR QSFP28 PAM4 1310nm 2km SMF LC DOM Optical Transceiver Module

direcXource's QSFP-100G-FR optical transceiver is a Single Lambda 103.1Gbps Quad Small Form-factor Pluggable QSFP28 module for use in 100GBASE Ethernet. QSFP28 FR provides 100Gb/s throughput up to 2km over single-mode fiber (SMF) with built-in FEC using 1310nm wavelength. This transceiver is fully compliant with QSFP28 Multi-Source Agreement (MSA), 100G Lambda MSA, IEEE 802.3 100GBASE-FR and CAUI-4 standard. Its electrical interface is MSA compliant 38-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex QSFP28 transceiver implements 106.26 Gbps PAM4 transmit and receive signal channel for 100 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to generic MSA transceivers.

Feature

• Hot pluggable QSFP28 form factor
• Aggregate data rate up to 103.1Gbps
• 1310nm EML transmitter
• PIN photo receiver
• Duplex LC optical connector
• Link distances up to SMF 2km with host FEC
• Single 53.125Gbd PAM4 optical signal
• Built-in digital diagnostic via 2-wire interface
• Single 3.3V power supply voltage
• Power consumption < 4.5W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with 100G Lambda MSA, SFF-8665, SFF-8661, SFF-8679, SFF-8636
• Compliant with IEEE 802.3cd 100GBASE-FR
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 100G Ethernet
• Data Center

Specification
