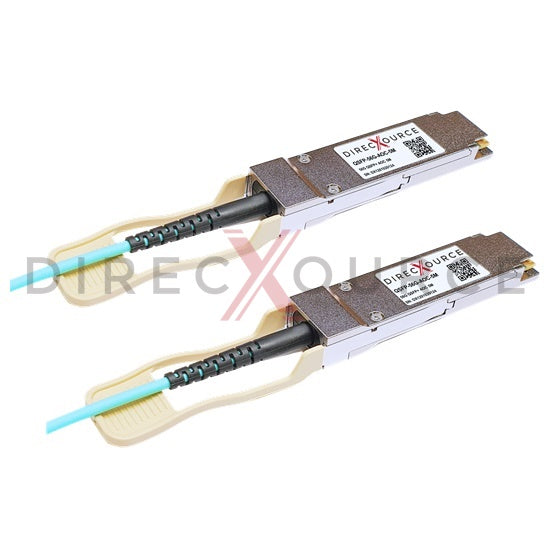

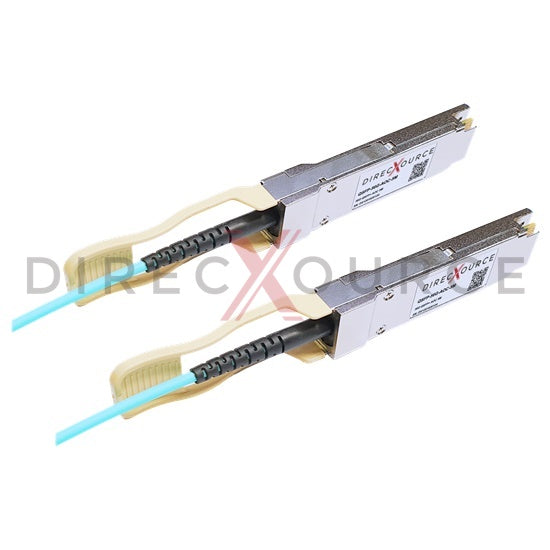

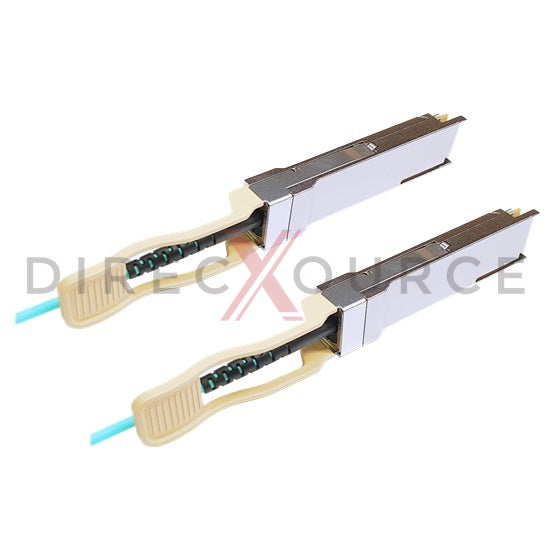

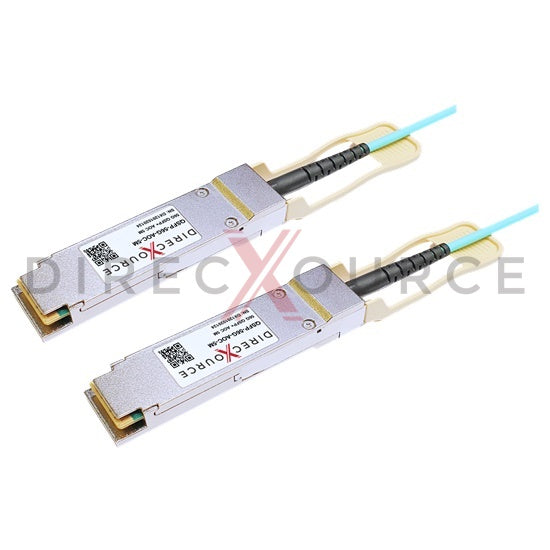

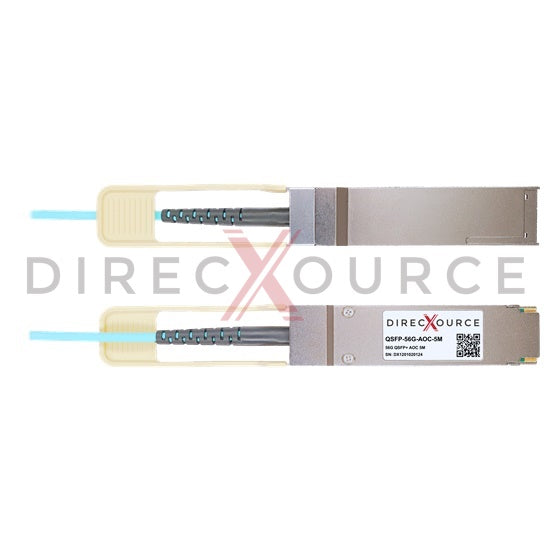

5m (16.4ft) Generic Compatible QSFP-56G-AOC-5M 56G QSFP+ Active Optical Cable
direcXource's QSFP-56G-AOC-5M AOC is a 56Gbps QSFP+ to QSFP+ active optical cable for use in 56G InfiniBand. QSFP+ AOC provides 56Gb/s throughput for 5m interconnection with laser-optimized multi-mode fiber optical cable. Standard length options cover from 1 meter to 30 meters. The QSFP+ AOC cable implements 4 independent 14 Gbps NRZ transmit and receive signal channels in each fiber for an aggregate 56 Gbps data rate. This AOC is fully compliant with QSFP+ Multi-Source Agreement (MSA) and InfiniBand 4X FDR standard. The active optical cable is pre-terminated with MSA compliant 38-pin edge type connectors. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our AOCs are factory pre-programmed for compatibility, perform identically to generic MSA direct attach cables.
Feature
- Hot Pluggable QSFP+ to QSFP+ Topology
- Aggregate data rate up to 56Gbps
- Pre-terminated Multi-mode fiber cable
- 4x 14.0625Gbps fourteen data rate NRZ electrical interface
- Minimum bending radius 7.5mm
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 1W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with SFF-8685, SFF-8661, SFF-8679, SFF-8636
- Compliant with InfiniBand 4X FDR
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 56G 4X FDR Infiniband
Specification
| Part Number | QSFP-56G-AOC-5M | Topology | QSFP+ to QSFP+ |
| Max Data Rate | 56Gbps | Cable Length | 5m (16.4ft) |
| Cable Type | OM3 Multi Mode Fiber | Jacket Meterial | OFNP |
| Minimum Bend Radius | 7.5mm | Signal Conditioner | None |
| Power Consumption | 1W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
