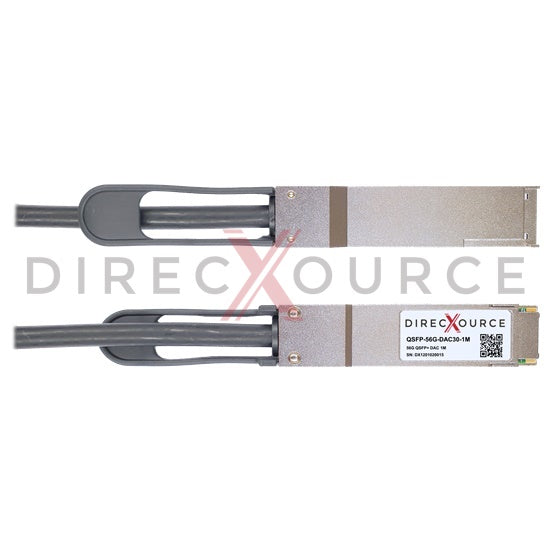

1m (3.28ft) Generic Compatible QSFP-56G-DAC30-1M 56G QSFP+ Passive Direct Attach Twinax Copper Cable

1m (3.28ft) Generic Compatible QSFP-56G-DAC30-1M 56G QSFP+ Passive Direct Attach Twinax Copper Cable

direcXource's QSFP-56G-DAC30-1M DAC is a passive 56Gbps QSFP+ to QSFP+ direct attach cable for use in 56G InfiniBand. QSFP+ DAC provides 56Gb/s throughput for 1m interconnection with high speed twin-axial copper cable. Standard length options cover from 0.5 meters to 5 meters. The QSFP+ DAC cable implements 4 independent 14 Gbps NRZ transmit and receive signal channels in each differential pair for an aggregate 56 Gbps data rate. This DAC is fully compliant with QSFP+ Multi-Source Agreement (MSA) and InfiniBand 4X FDR standard. The twin-axial copper cable's wire gauge is 30AWG and pre-terminated with MSA compliant 38-pin edge type connectors. MSA memory map are accessible via 2-wire Interface (TWI/I2C). Our DACs are factory pre-programmed for compatibility, perform identically to generic MSA direct attach cables.

Feature

• Hot Pluggable QSFP+ to QSFP+ Topology
• Aggregate data rate up to 56Gbps
• Pre-terminated 30AWG twin-axial copper cable
• 4x 14.0625Gbps fourteen data rate NRZ electrical interface
• Minimum bending radius 35mm
• MSA memory accessible via 2-wire interface
• Single 3.3V power supply voltage
• Extremely low power consumption near 0W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with SFF-8685, SFF-8661, SFF-8679, SFF-8636
• Compliant with InfiniBand 4X FDR
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 56G 4X FDR Infiniband

Specification
