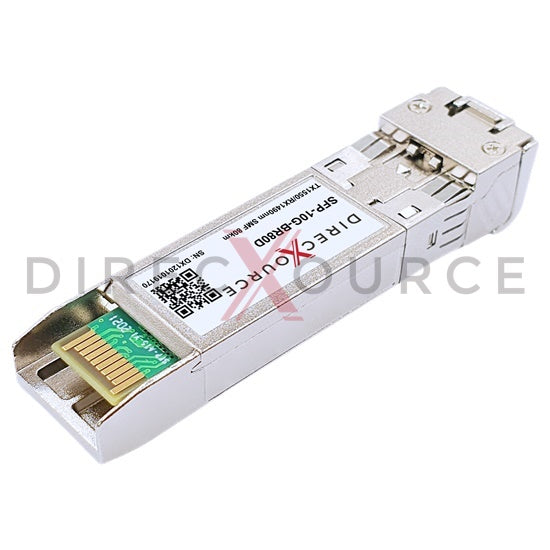

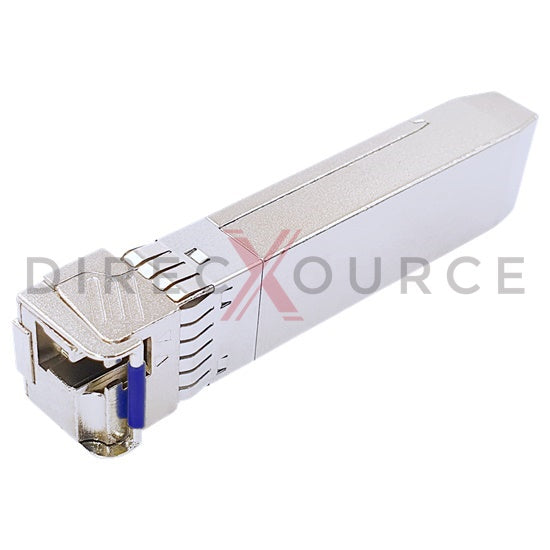

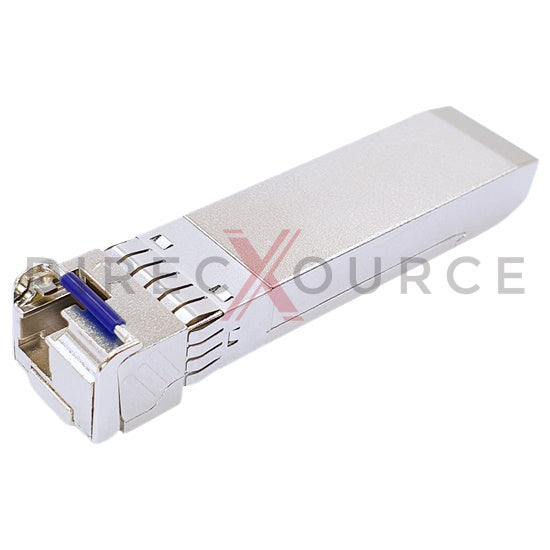

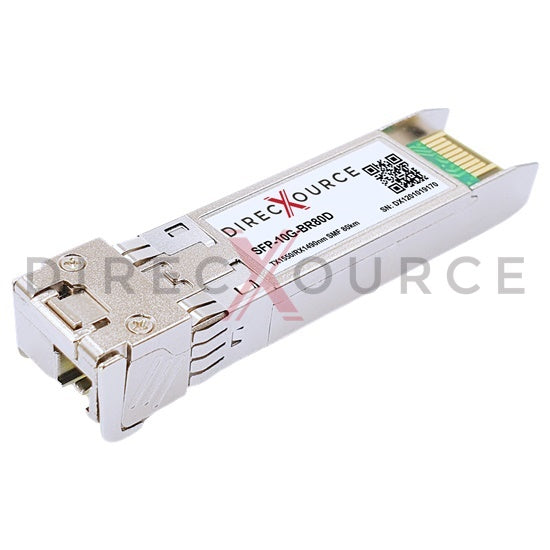

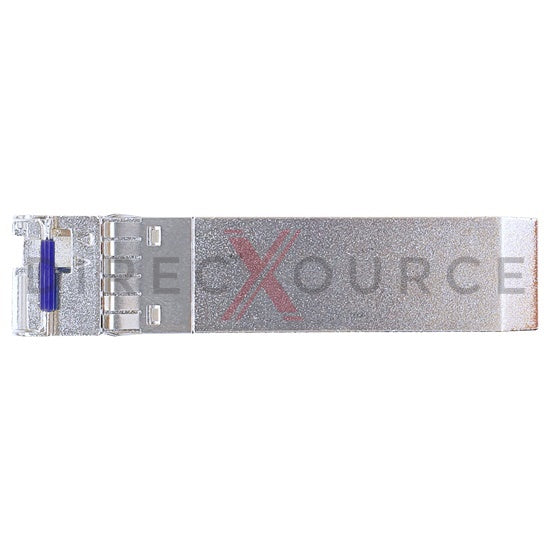

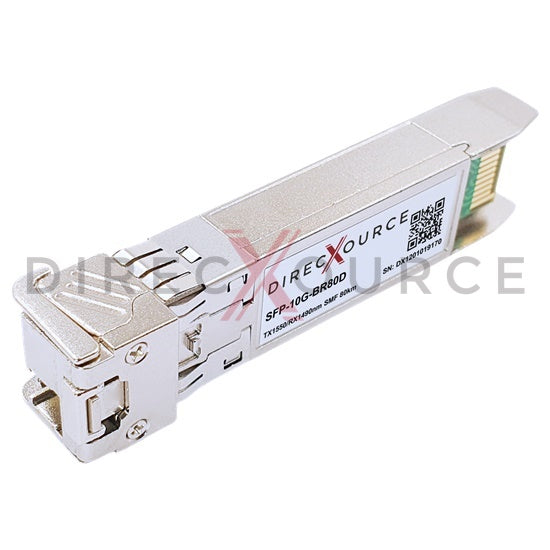

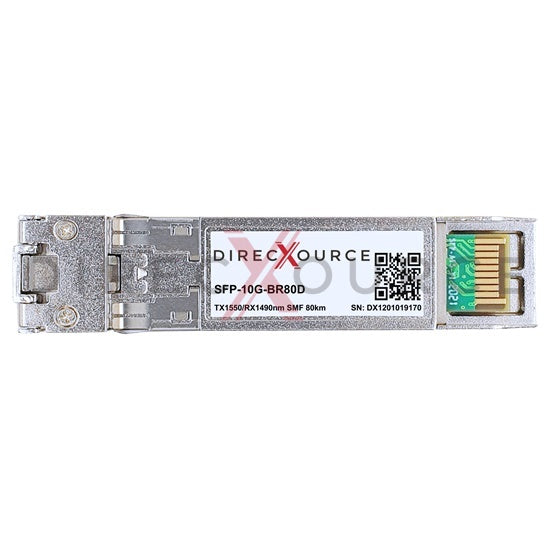

Generic Compatible SFP-10G-BR80D 10GBASE-BR BIDI SFP+ TX1550nm/RX1490nm 80km SMF LC DOM Optical Transceiver Module
direcXource's SFP-10G-BR80D optical transceiver is a single fiber bidirection 10.3Gbps Small Form-factor Pluggable SFP+ BIDI module for use in 10GBASE Ethernet. SFP+ BR80D provides 10Gb/s throughput up to 80km over single-mode fiber (SMF) using 1550nm in transmitter side and 1490nm in receiver side. This transceiver is fully compliant with SFP+ Multi-Source Agreement (MSA), IEEE 802.3 10GBASE-BR80 and SFI standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Simplex LC connector. The full-duplex SFP+ transceiver features highly reliable EML transmitter and APD photo detector to offer high performance interconnection at 10 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to generic MSA transceivers.
Feature
- Hot pluggable SFP+ form factor
- Data rate up to 10.3Gbps
- 1550nm EML transmitter
- APD photo receiver
- Simplex LC optical connector
- Link distances up to SMF 80km
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 1.5W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with SFF-8431, SFF-8432, SFF-8419, SFF-8472
- Compliant with IEEE 802.3 10GBASE-BR80
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 10G Ethernet
- 10G Fibre Channel
- 10G CPRI
- 10G SONET/SDH
Specification
| Part Number | SFP-10G-BR80D | Form Factor | SFP+ |
| Max Data Rate | 10.3Gbps | Max Distance | 80km (49.7 miles) |
| Wavelength | TX1550nm/RX1490nm | Connector | Simplex LC |
| DDM/DOM | Support | Media | SMF |
| Transmitter Type | EML | Receiver Type | APD |
| Transmitter Power | 0 to 5dBm | Receiver Sensitivity | < -21dBm |
| Extinction Ratio | 3dB | Receiver Overload | -9dBm |
| Transmit and Dispersion Penalty | 3.2dB | Power Budget | 21dB |
| OE Packaging | Coaxial Packaging | Modulation Format | NRZ |
| Power Consumption | 1.5W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
