Generic Compatible SFP-10G-LB 10G SFP+ 0dB 0W Passive Loopback Testing Module

Generic Compatible SFP-10G-LB 10G SFP+ 0dB 0W Passive Loopback Testing Module

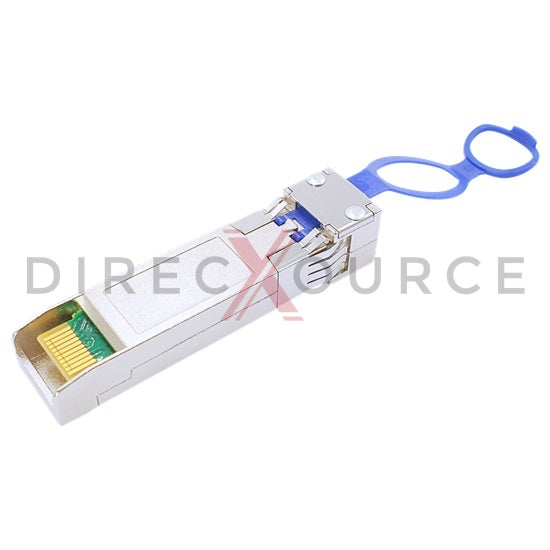

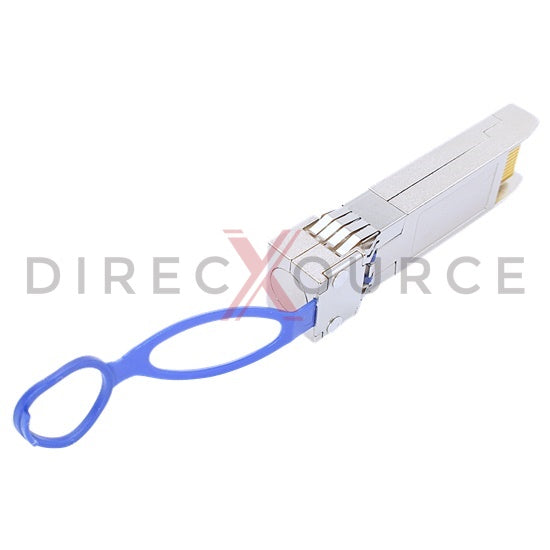

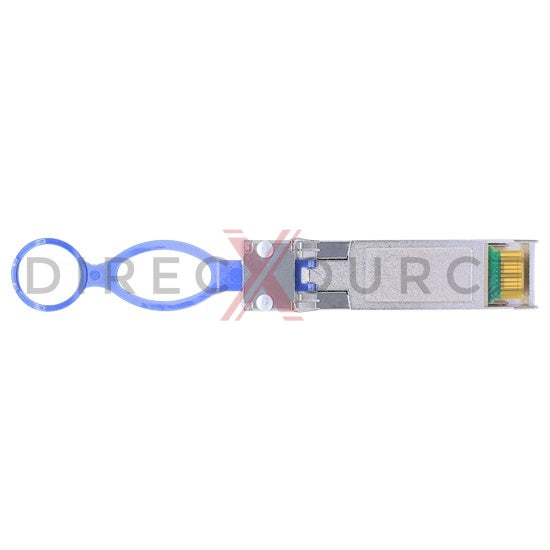

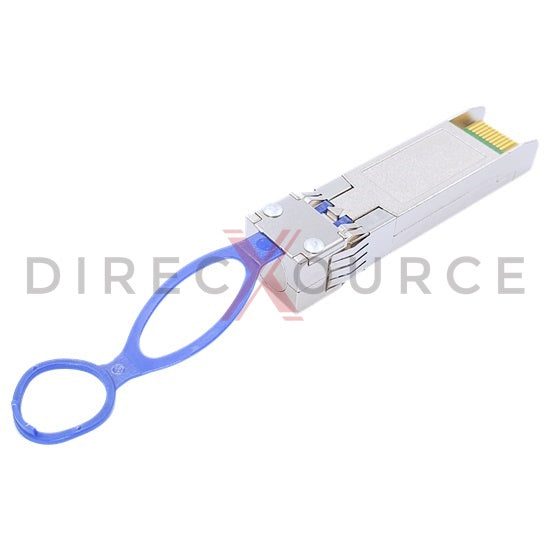

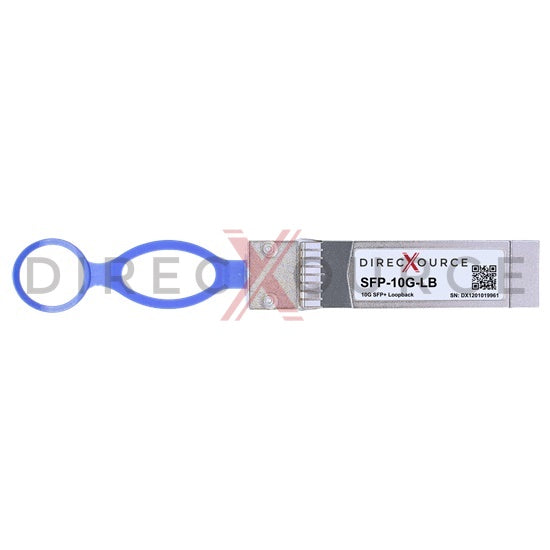

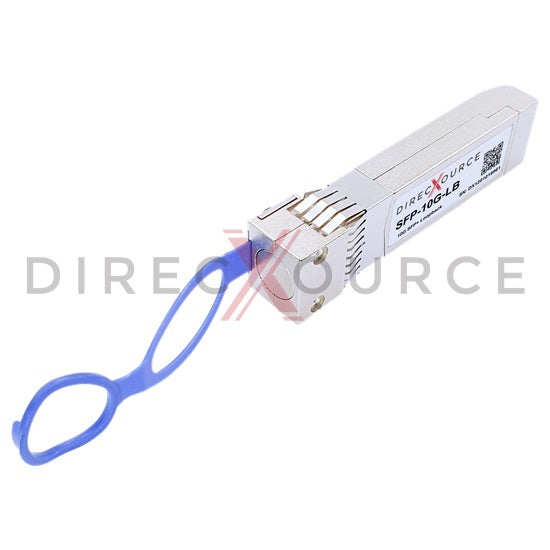

direcXource's SFP-10G-LB loopback is a 10Gbps Small Form-factor Pluggable SFP+ loopback module for cost effective port testing. SFP+ LB routes 10Gb/s data stream from transmitting side back to receiving side of the same host port by looping back the electrical signal. The SFP+ loopback module implements transmit and receive differential signal for 10 Gbps data rate. This loopback is fully compliant with SFP+ Multi-Source Agreement (MSA) and IEEE 802.3ae 10GBASE-CR standard. The electrical interface is MSA compliant 20-pin edge type connector and the internal loopback by AC coupling internally. Our loopback is designed for R&D evaluation, production testing of SFP+ equipped network routers/switches, blade servers and adapter cards. Protocol-transparent design ensures widely compatibility with various signal standards, including 10 Gigabit Ethernet (10GbE) and 8G/4G Fibre Channel. MSA memory map are accessible via 2-wire Interface (TWI/I2C).

Feature

• Hot pluggable SFP+ form factor
• Data rate up to 10Gbps
• 10.3125Gbps SFI electrical interface
• MSA memory accessible via 2-wire interface
• Single 3.3V power supply voltage
• Extremely low power consumption near 0W
• Ambient temperature range -20 to 85°C for extended application
• Compliant with SFF-8431, SFF-8432, SFF-8419, SFF-8472
• Compliant with IEEE 802.3ae 10GBASE-CR
• Compliant with RoHS, REACH, CE, FCC standards

Application

• Port Testing
• Board Level System Testing
