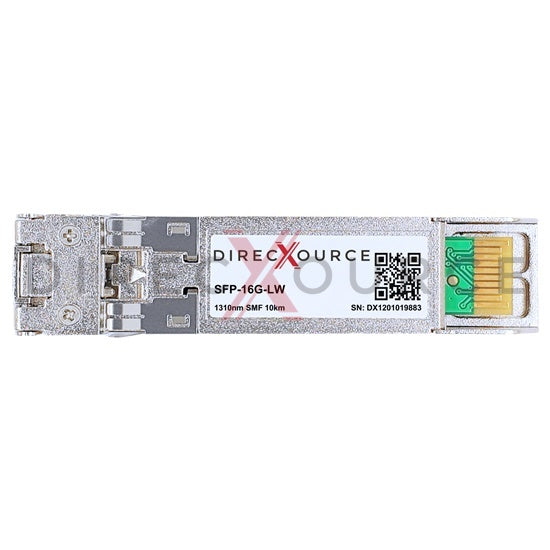

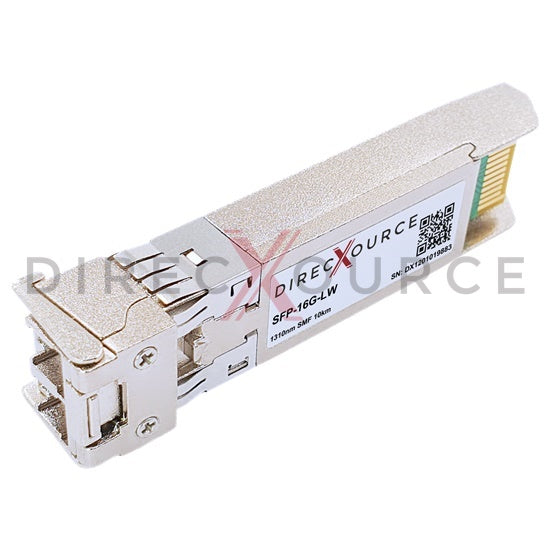

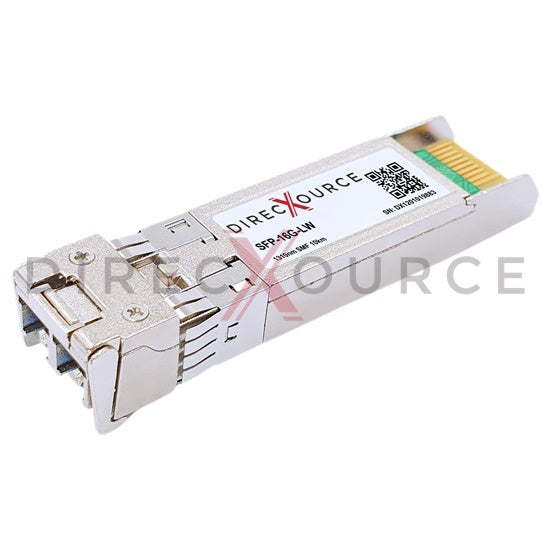

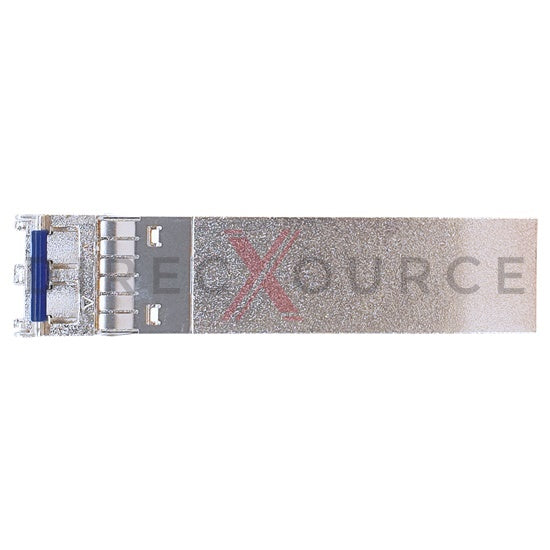

Generic Compatible SFP-16G-LW 16G Fibre Channel SFP+ 1310nm 10km SMF LC DOM Optical Transceiver Module

Generic Compatible SFP-16G-LW 16G Fibre Channel SFP+ 1310nm 10km SMF LC DOM Optical Transceiver Module

direcXource's SFP-16G-LW optical transceiver is a dual fiber 14Gbps Small Form-factor Pluggable SFP+ module for use in 16G Fibre Channel Network. SFP+ 16G-LW provides 14Gb/s throughput up to 10km over single-mode fiber (SMF) using 1310nm wavelength. This transceiver is fully compliant with SFP+ Multi-Source Agreement (MSA) and FCIA FC-PI-5 1600-SM-LC-L standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP+ transceiver features highly reliable DFB transmitter and PIN photo detector to offer high performance interconnection at 14 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to generic MSA transceivers.

Feature

• Hot pluggable SFP+ form factor
• Data rate up to 14Gbps
• 1310nm DFB transmitter
• PIN photo receiver
• Duplex LC optical connector
• Link distances up to SMF 10km
• Built-in digital diagnostic via 2-wire interface
• Single 3.3V power supply voltage
• Power consumption < 1W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with SFF-8431, SFF-8432, SFF-8472
• Compliant with FCIA FC-PI-5 1600-SM-LC-L
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 16G Fibre Channel
• 8G Fibre Channel
• 4G Fibre Channel

Specification
