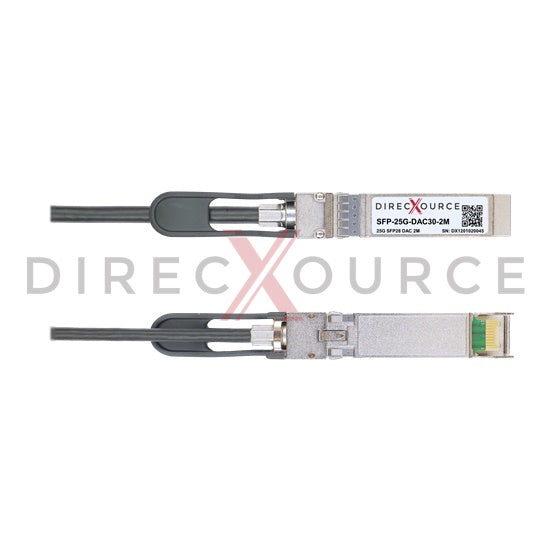

2m (6.56ft) Generic Compatible SFP-25G-DAC30-2M 25G SFP28 Passive Direct Attach Twinax Copper Cable
direcXource's SFP-25G-DAC30-2M DAC is a passive 25Gbps SFP28 to SFP28 direct attach cable for use in 25GBASE Ethernet. SFP28 DAC provides 25Gb/s throughput for 2m interconnection with high speed twin-axial copper cable. Standard length options cover from 1 meter to 5 meters. This DAC is fully compliant with SFP28 Multi-Source Agreement (MSA), IEEE 802.3by 25GBASE-CR and 25GAUI standard. The twin-axial copper cable's wire gauge is 30AWG and pre-terminated with MSA compliant 20-pin edge type connectors. MSA memory map are accessible via 2-wire Interface (TWI/I2C). Our DACs are factory pre-programmed for compatibility, perform identically to generic MSA direct attach cables.
Feature
- Hot Pluggable SFP28 to SFP28 Topology
- Data rate up to 25.8Gbps
- Pre-terminated 30AWG twin-axial copper cable
- 25.78125Gbps NRZ retimed 25GUAI electrical interface
- Minimum bending radius 25mm
- MSA memory accessible via 2-wire interface
- Single 3.3V power supply voltage
- Extremely low power consumption near 0W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with SFF-8402, SFF-8432, SFF-8419, SFF-8472
- Compliant with IEEE 802.3by 25GBASE-CR
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 25G Ethernet
- Data Center
Specification
| Part Number | SFP-25G-DAC30-2M | Topology | SFP28 to SFP28 |
| Max Data Rate | 25Gbps | Cable Length | 2m (6.56ft) |
| Cable Type | Twinax | Wire Gauge | 30AWG |
| Jacket Meterial | OFNR (PVC) | Minimum Bend Radius | 25mm |
| Host FEC | Support | Modulation Format | NRZ |
| Power Consumption | 0W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
