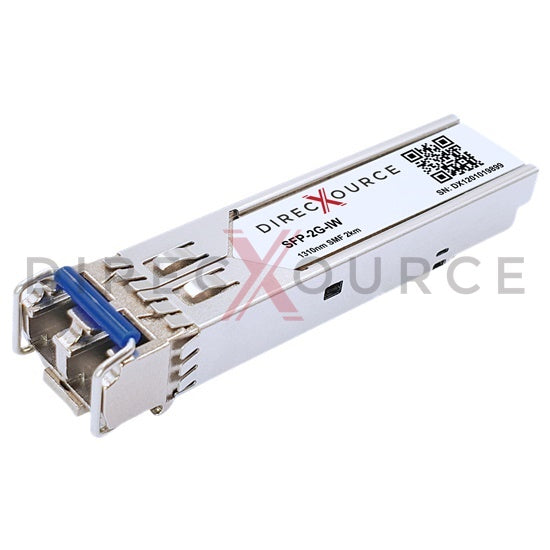

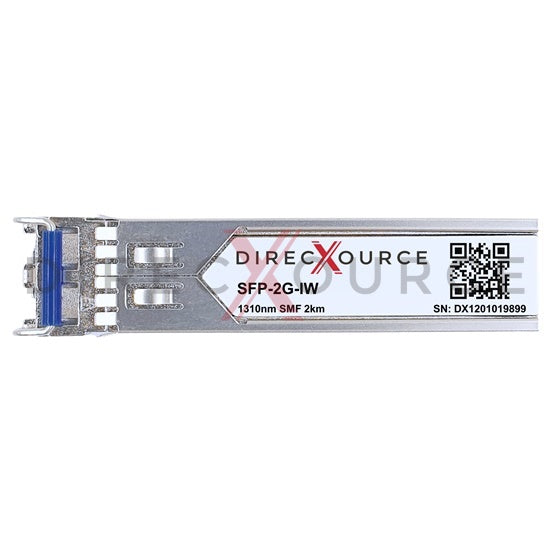

Generic Compatible SFP-2G-IW 2G Fibre Channel SFP 1310nm 2km SMF LC DOM Optical Transceiver Module
direcXource's SFP-2G-IW optical transceiver is a dual fiber 2.125Gbps Small Form-factor Pluggable SFP module for use in 2G Fibre Channel Network. SFP 2G-IW provides 2Gb/s throughput up to 2km over single-mode fiber (SMF) using 1310nm wavelength. This transceiver is fully compliant with SFP Multi-Source Agreement (MSA) and FCIA FC-PI-4 200-SM-LC-I standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP transceiver features highly reliable FP transmitter and PIN photo detector to offer high performance interconnection at 2 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to generic MSA transceivers.
Feature
- Hot pluggable SFP form factor
- Data rate up to 2.125Gbps
- 1310nm FP transmitter
- PIN photo receiver
- Duplex LC optical connector
- Link distances up to SMF 2km
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 1W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with INF-8074i, SFF-8472
- Compliant with FCIA FC-PI-4 200-SM-LC-I
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 2G Fibre Channel
Specification
| Part Number | SFP-2G-IW | Form Factor | SFP |
| Max Data Rate | 2.125Gbps | Max Distance | 2km (1.2 miles) |
| Wavelength | 1310nm | Connector | Duplex LC |
| DDM/DOM | Support | Media | SMF |
| Transmitter Type | FP | Receiver Type | PIN |
| Transmitter Power | -8 to -3dBm | Receiver Sensitivity | < -21dBm |
| Extinction Ratio | 9dB | Receiver Overload | 0dBm |
| Modulation Format | NRZ | Power Budget | 13dB |
| Power Consumption | 1W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
