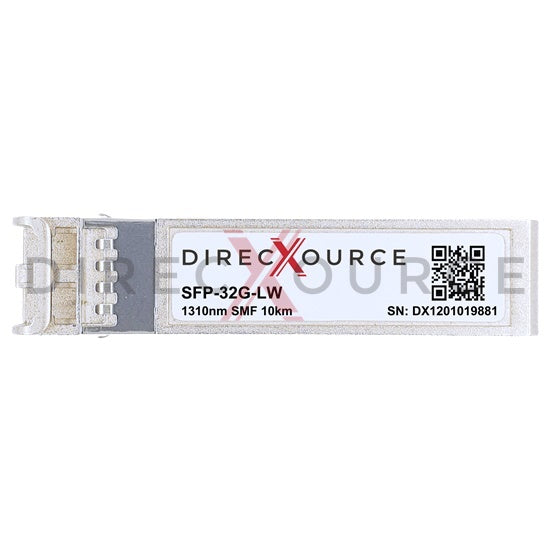

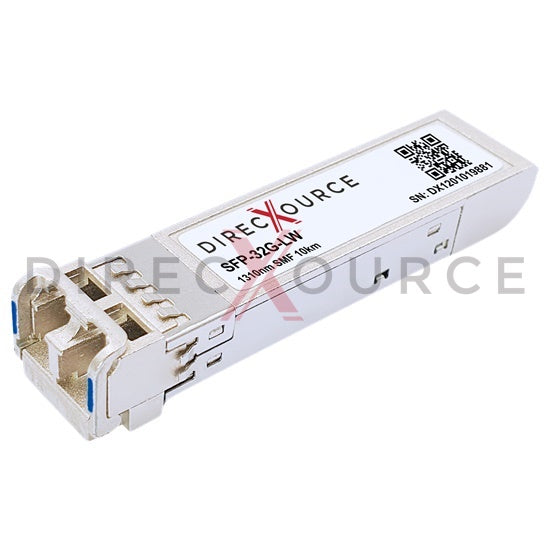

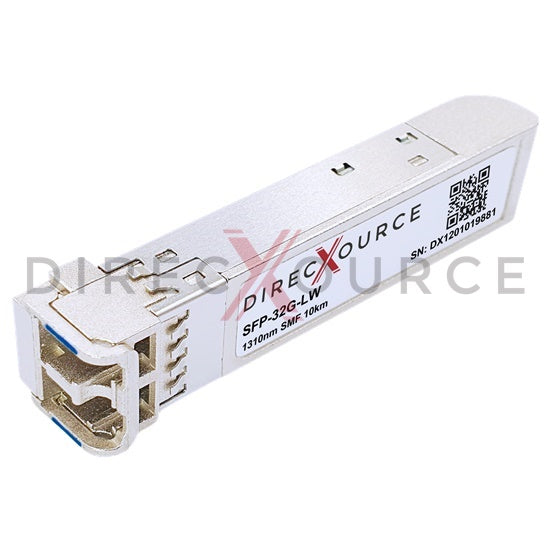

Generic Compatible SFP-32G-LW 32G Fibre Channel SFP28 1310nm 10km SMF LC DOM Optical Transceiver Module

Generic Compatible SFP-32G-LW 32G Fibre Channel SFP28 1310nm 10km SMF LC DOM Optical Transceiver Module

direcXource's SFP-32G-LW optical transceiver is a dual fiber 28.1Gbps Small Form-factor Pluggable SFP28 module for use in 32G Fibre Channel Network. SFP28 32G-LW provides 28Gb/s throughput up to 10km over single-mode fiber (SMF) with host FEC using 1310nm wavelength. This transceiver is fully compliant with SFP28 Multi-Source Agreement (MSA) and FCIA FC-PI-6 3200-SM-LC-L standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP28 transceiver features highly reliable EML transmitter and PIN photo detector to offer high performance interconnection at 28 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to generic MSA transceivers.

Feature

• Hot pluggable SFP28 form factor
• Data rate up to 28.1Gbps
• 1310nm EML transmitter
• PIN photo receiver
• Duplex LC optical connector
• Link distances up to SMF 10km
• Internal CDR on both Transmitter and Receiver channels
• Built-in digital diagnostic via 2-wire interface
• Single 3.3V power supply voltage
• Power consumption < 1.2W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with SFF-8402, SFF-8432, SFF-8472
• Compliant with FCIA FC-PI-6 3200-SM-LC-L
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 32G Fibre Channel

Specification
