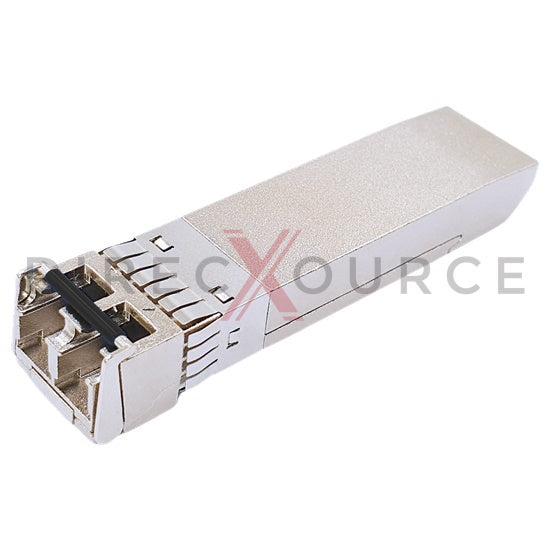

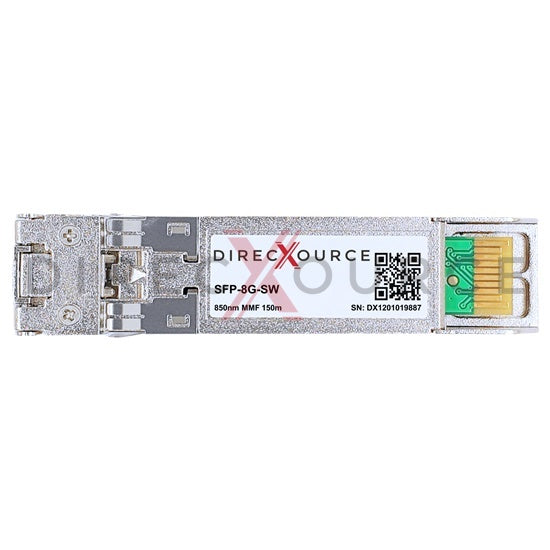

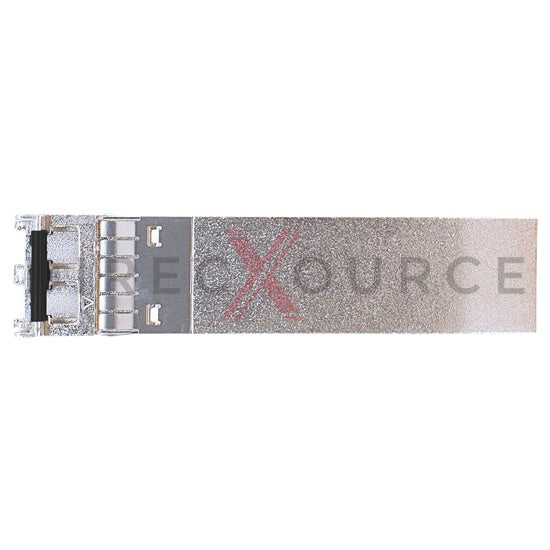

Generic Compatible SFP-8G-SW 8G Fibre Channel SFP+ 850nm 150m MMF LC DOM Optical Transceiver Module
direcXource's SFP-8G-SW optical transceiver is a dual fiber 8.5Gbps Small Form-factor Pluggable SFP+ module for use in 8G Fibre Channel Network. SFP+ 8G-SW provides 8Gb/s throughput up to 150 meters over OM3 multi-mode fiber (MMF) using 850nm wavelength. This transceiver is fully compliant with SFP+ Multi-Source Agreement (MSA) and FCIA FC-PI-4 800-M5E-SN-I standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP+ transceiver features highly reliable VCSEL transmitter and PIN photo detector to offer high performance interconnection at 8 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to generic MSA transceivers.
Feature
- Hot pluggable SFP+ form factor
- Data rate up to 8.5Gbps
- 850nm VCSEL transmitter
- PIN photo receiver
- Duplex LC optical connector
- Link distances up to MMF 150m
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 1W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with SFF-8431, SFF-8432, SFF-8472
- Compliant with FCIA FC-PI-4 800-M5E-SN-I
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 8G Fibre Channel
- 4G Fibre Channel
- 2G Fibre Channel
Specification
| Part Number | SFP-8G-SW | Form Factor | SFP+ |
| Max Data Rate | 8.5Gbps | Max Distance | 150m (492ft) |
| Wavelength | 850nm | Connector | Duplex LC |
| DDM/DOM | Support | Media | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| Transmitter Power | -6 to -1dBm | Receiver Sensitivity | < -11.1dBm |
| Extinction Ratio | 3dB | Receiver Overload | -1dBm |
| Transmit and Dispersion Penalty | 3.9dB | Power Budget | 5.1dB |
| OE Packaging | Coaxial Packaging | Modulation Format | NRZ |
| Power Consumption | 1W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
