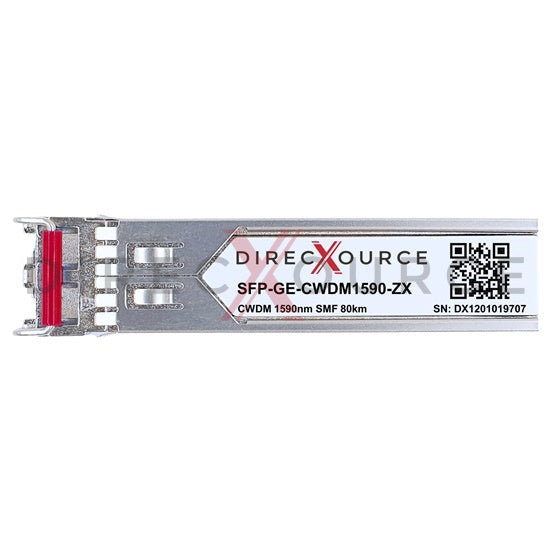

Generic Compatible SFP-GE-CWDM1590-ZX 1000BASE-CWDM SFP 1590nm 80km SMF LC DOM Optical Transceiver Module
direcXource's SFP-GE-CWDM1590-ZX optical transceiver is a dual fiber 1000Mbps Small Form-factor Pluggable SFP CWDM module for use in 1000BASE Ethernet. SFP CWDM1590-ZX provides 1Gb/s throughput up to 80km over single-mode fiber (SMF) using 1590nm wavelength. This transceiver is fully compliant with SFP Multi-Source Agreement (MSA), IEEE 802.3 1000BASE-CWDM and SERDES standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP transceiver features highly reliable DFB transmitter and PIN photo detector to offer high performance interconnection at 1 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to generic MSA transceivers.
Feature
- Hot pluggable SFP form factor
- Data rate up to 1000Mbps
- 1590nm DFB transmitter
- PIN photo receiver
- Duplex LC optical connector
- Link distances up to SMF 80km
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 0.7W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with INF-8074i, SFF-8472
- Compliant with IEEE 802.3 1000BASE-CWDM
- Compliant with RoHS, REACH, CE, FCC standards
Application
- Gigabit Ethernet
Specification
| Part Number | SFP-GE-CWDM1590-ZX | Form Factor | SFP |
| Max Data Rate | 1000Mbps | Max Distance | 80km (49.7 miles) |
| Wavelength | 1590nm | Connector | Duplex LC |
| DDM/DOM | Support | Media | SMF |
| Transmitter Type | DFB | Receiver Type | PIN |
| Transmitter Power | 0 to 5dBm | Receiver Sensitivity | < -24dBm |
| Extinction Ratio | 9dB | Receiver Overload | 0dBm |
| Modulation Format | NRZ | Power Budget | 24dB |
| Power Consumption | 0.7W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
