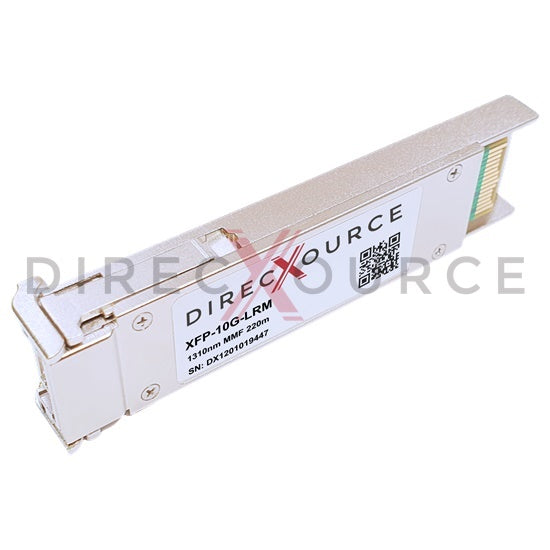

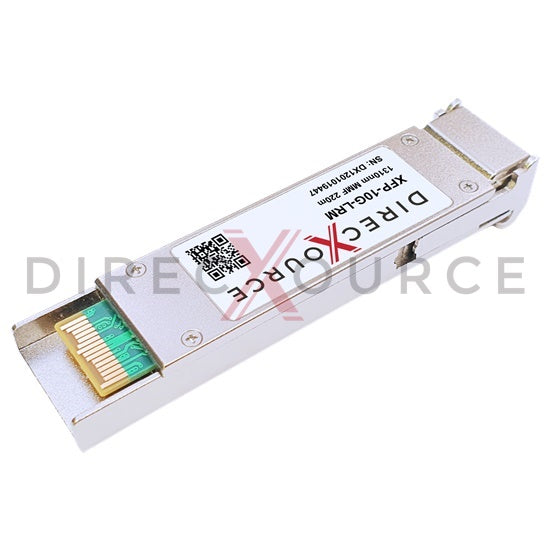

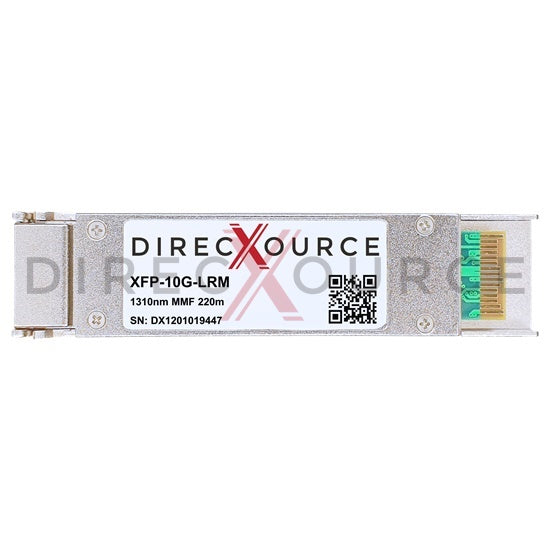

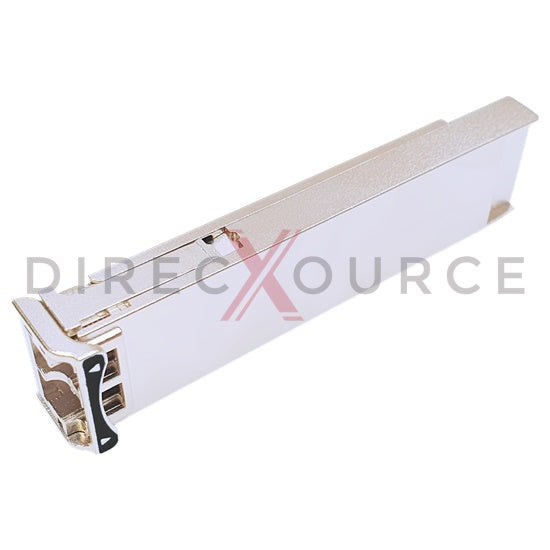

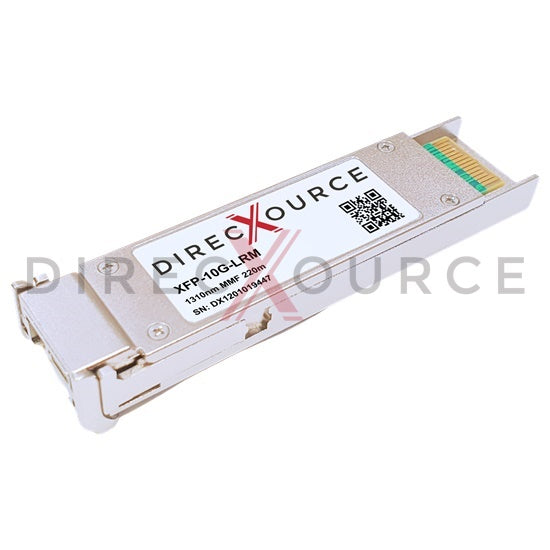

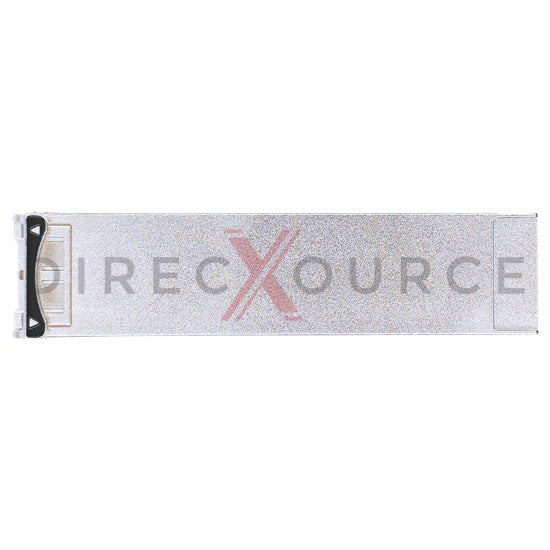

Generic Compatible XFP-10G-LRM 10GBASE-LRM XFP 1310nm 220m MMF LC DOM Optical Transceiver Module
direcXource's XFP-10G-LRM optical transceiver is a dual fiber 10.3Gbps Form-factor Pluggable XFP module for use in 10GBASE Ethernet. XFP LRM provides 10Gb/s throughput up to 220 meters over OM1 multi-mode fiber (MMF) using 1310nm wavelength. This transceiver is fully compliant with XFP Multi-Source Agreement (MSA), IEEE 802.3 10GBASE-LRM and XFI standard. Its electrical interface is MSA compliant 30-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex XFP transceiver features highly reliable FP transmitter and PIN photo detector to offer high performance interconnection at 10 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to generic MSA transceivers.
Feature
- Hot pluggable XFP form factor
- Data rate up to 10.3Gbps
- 1310nm FP transmitter
- PIN photo receiver
- Duplex LC optical connector
- Link distances up to OM1 220m
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 3.5W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with INF-8077i
- Compliant with IEEE 802.3 10GBASE-LRM
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 10G Ethernet
- 10G SONET/SDH
Specification
| Part Number | XFP-10G-LRM | Form Factor | XFP |
| Max Data Rate | 10.3Gbps | Max Distance | 220m (722ft) @OM1 |
| Wavelength | 1310nm | Connector | Duplex LC |
| DDM/DOM | Support | Media | MMF |
| Transmitter Type | FP | Receiver Type | PIN |
| Transmitter Power | -6.5 to 0.5dBm | Receiver Sensitivity | < -8.4dBm |
| Extinction Ratio | 3.5dB | Receiver Overload | 0.5dBm |
| Transmit and Dispersion Penalty | 3.2dB | Power Budget | 1.9dB |
| OE Packaging | Coaxial Packaging | Modulation Format | NRZ |
| Power Consumption | 3.5W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
