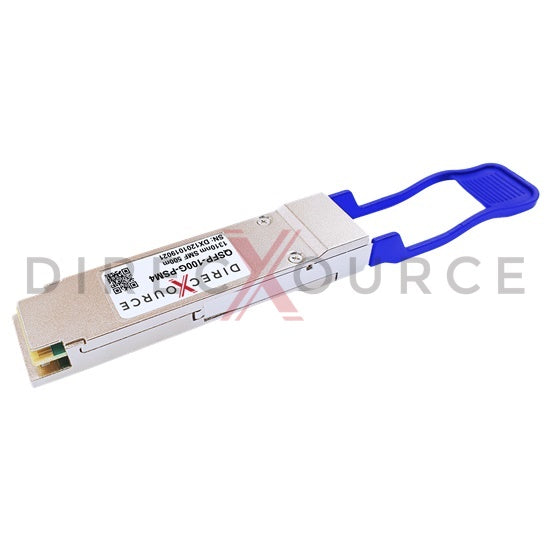

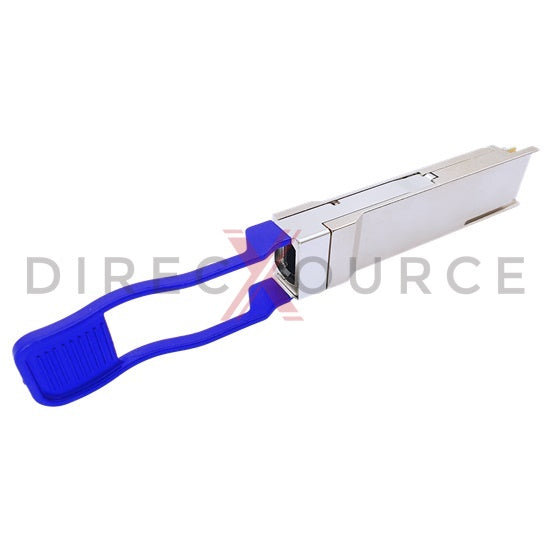

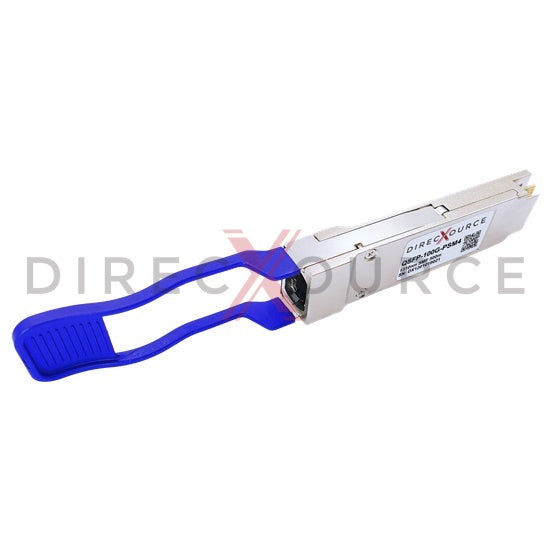

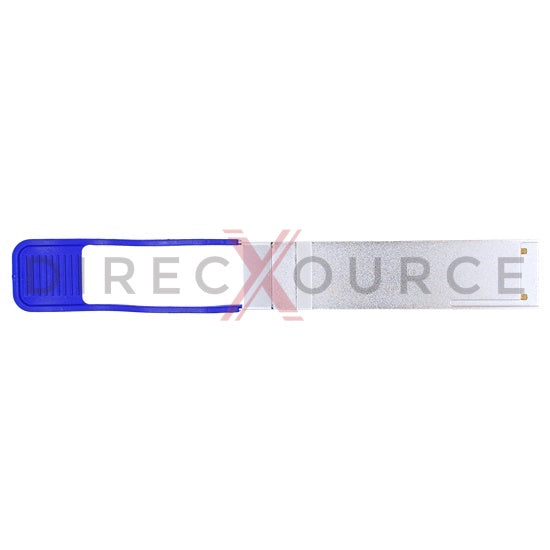

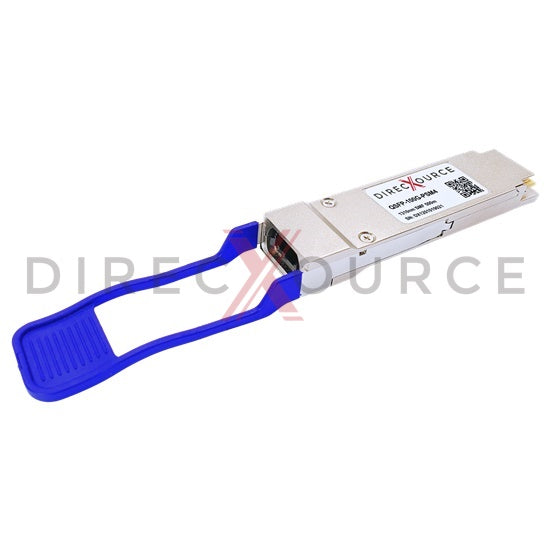

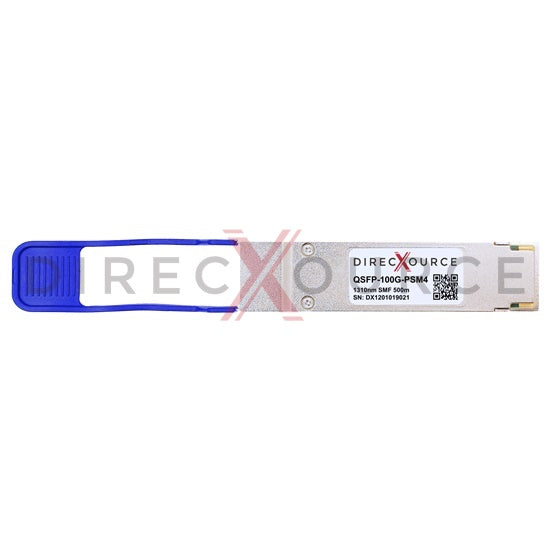

Cisco QSFP-100G-PSM4-S Compatible 100GBASE-PSM4 QSFP28 1310nm 500m SMF MTP/MPO-12 DOM Optical Transceiver Module

Cisco QSFP-100G-PSM4-S Compatible 100GBASE-PSM4 QSFP28 1310nm 500m SMF MTP/MPO-12 DOM Optical Transceiver Module

Cisco QSFP-100G-PSM4-S compatible optical transceiver is a parallel 103.1Gbps Quad Small Form-factor Pluggable QSFP28 module for use in 100GBASE Ethernet. QSFP28 PSM4 provides 100Gb/s throughput up to 500 meters over single-mode fiber (SMF) with host FEC using 1310nm wavelength. This transceiver is fully compliant with QSFP28 Multi-Source Agreement (MSA), IEEE 802.3 100GBASE-PSM4 and CAUI-4 standard. Its electrical interface is MSA compliant 38-pin edge type connector and the optical interface is MTP/MPO-12 APC connector. The full-duplex QSFP28 transceiver implements 4 independent 25.78125 Gbps transmit and receive channels in each fiber for an aggregate 100 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Cisco QSFP-100G-PSM4-S transceivers.

Feature

• Equivalent to Cisco QSFP-100G-PSM4-S in function
• Hot pluggable QSFP28 form factor
• Aggregate data rate up to 103.1Gbps
• 4 channels 1310nm DML transmitter
• 4 channels PIN photo receiver
• MTP/MPO-12 APC optical connector
• Link distances up to SMF 500m with host FEC
• 4x 25.78125Gbps NRZ retimed CUAI-4 electrical interface
• Built-in digital diagnostic via 2-wire interface
• Single 3.3V power supply voltage
• Power consumption < 3.5W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with SFF-8665, SFF-8661, SFF-8679, SFF-8636
• Compliant with IEEE 802.3 100GBASE-PSM4
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 100G Ethernet
• Data Center

Specification
