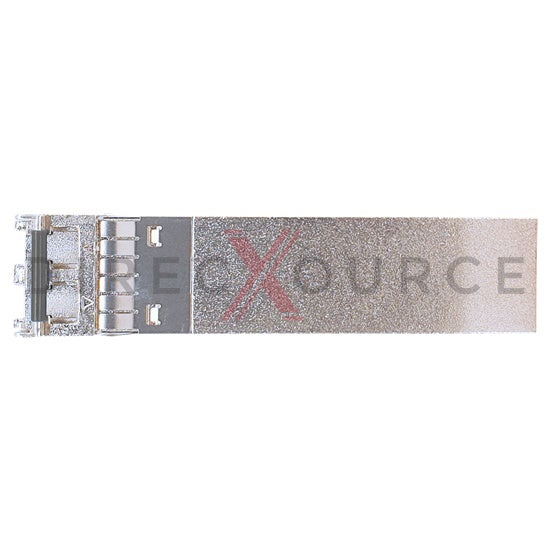

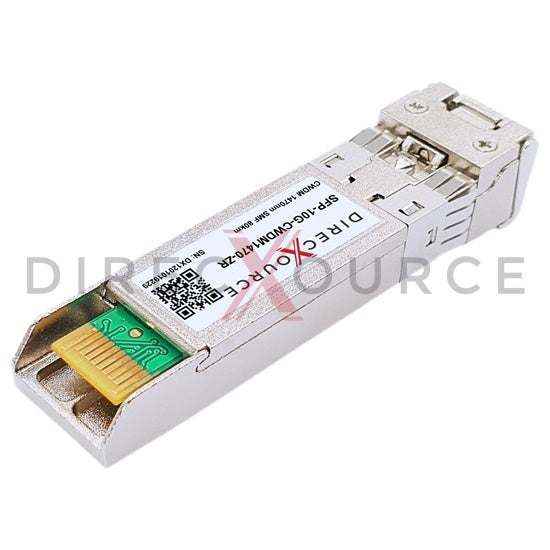

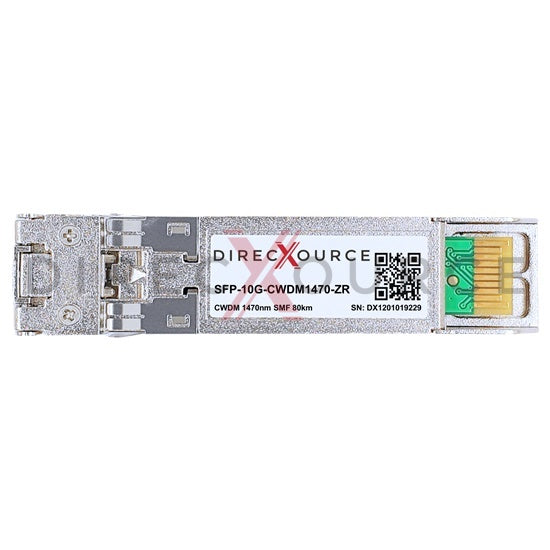

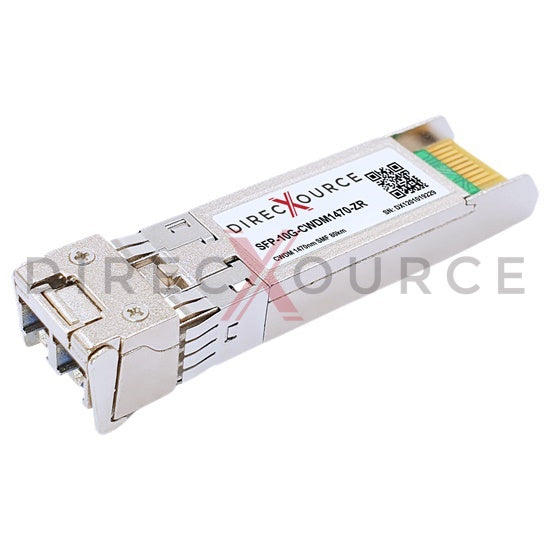

H3C CWDM-SFP10G-1470-80 Compatible 10GBASE-CWDM SFP+ 1470nm 80km SMF LC DOM Optical Transceiver Module

H3C CWDM-SFP10G-1470-80 Compatible 10GBASE-CWDM SFP+ 1470nm 80km SMF LC DOM Optical Transceiver Module

H3C CWDM-SFP10G-1470-80 compatible optical transceiver is a dual fiber 10.3Gbps Small Form-factor Pluggable SFP+ CWDM module for use in 10GBASE Ethernet. SFP+ CWDM1470-ZR provides 10Gb/s throughput up to 80km over single-mode fiber (SMF) using 1470nm wavelength. This transceiver is fully compliant with SFP+ Multi-Source Agreement (MSA), IEEE 802.3 10GBASE-CWDM and SFI standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP+ transceiver features highly reliable CWDM EML transmitter and APD photo detector to offer high performance interconnection at 10 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original H3C CWDM-SFP10G-1470-80 transceivers.

Feature

• Equivalent to H3C CWDM-SFP10G-1470-80 in function
• Hot pluggable SFP+ form factor
• Data rate up to 10.3Gbps
• 1470nm CWDM EML transmitter
• APD photo receiver
• Duplex LC optical connector
• Link distances up to SMF 80km
• Built-in digital diagnostic via 2-wire interface
• Single 3.3V power supply voltage
• Power consumption < 1.5W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with SFF-8431, SFF-8432, SFF-8419, SFF-8472
• Compliant with IEEE 802.3 10GBASE-CWDM
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 10G Ethernet
• 10G Fibre Channel
• 10G CPRI
• 10G CWDM Network
• 10G SONET/SDH

Specification
