Intel E25GSFP28SR Compatible 25GBASE-SR SFP28 850nm 100m MMF LC DOM Optical Transceiver Module

Intel E25GSFP28SR Compatible 25GBASE-SR SFP28 850nm 100m MMF LC DOM Optical Transceiver Module

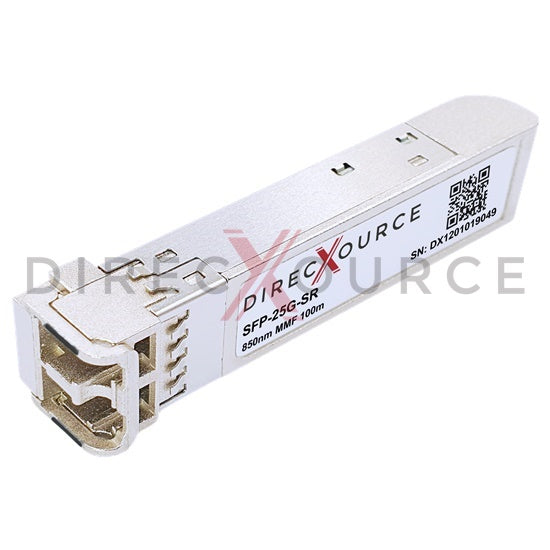

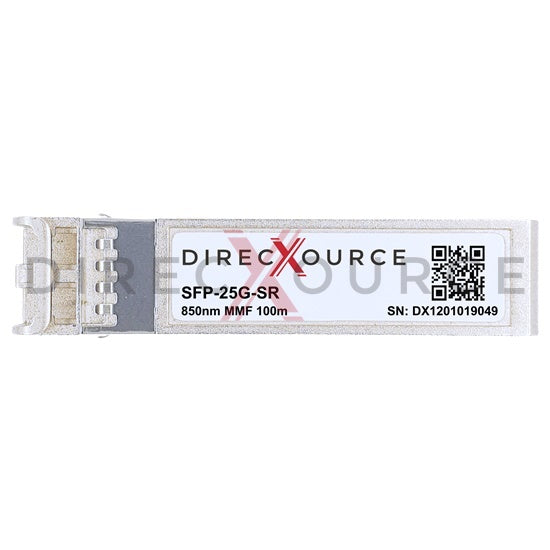

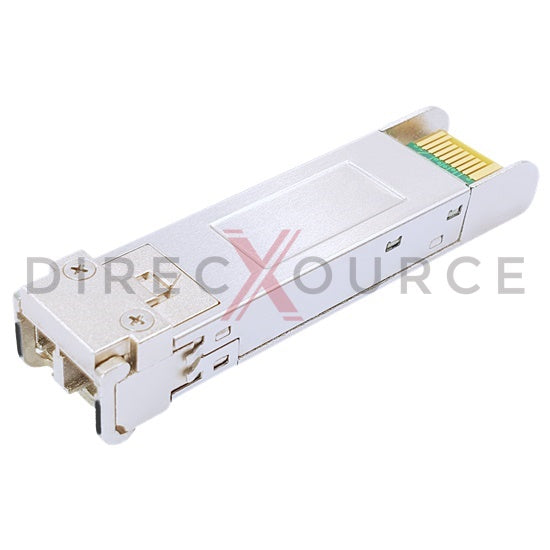

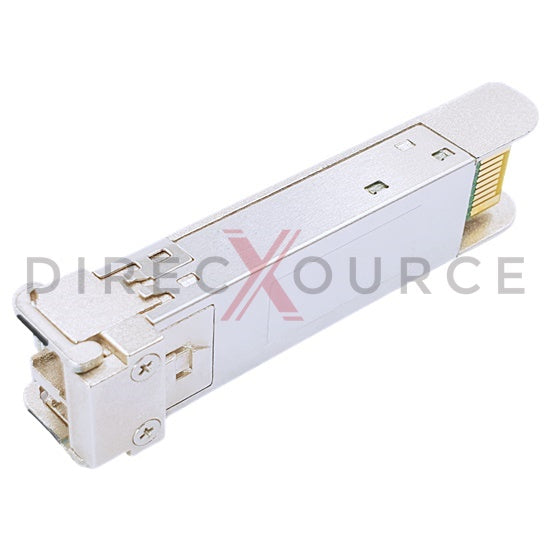

Intel E25GSFP28SR compatible optical transceiver is a dual fiber 25.8Gbps Small Form-factor Pluggable SFP28 module for use in 25GBASE Ethernet. SFP28 SR provides 25Gb/s throughput up to 100 meters over OM4 or 70 meters over OM3 multi-mode fiber (MMF) with host FEC using 850nm wavelength. This transceiver is fully compliant with SFP28 Multi-Source Agreement (MSA), IEEE 802.3by 25GBASE-SR and 25GAUI standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP28 transceiver features highly reliable VCSEL transmitter and PIN photo detector to offer high performance interconnection at 25 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Intel E25GSFP28SR transceivers.

Feature

• Equivalent to Intel E25GSFP28SR in function
• Hot pluggable SFP28 form factor
• Data rate up to 25.8Gbps
• 850nm VCSEL transmitter
• PIN photo receiver
• Duplex LC optical connector
• Link distances up to OM4 100m, OM3 70m with host FEC
• Internal CDR on both Transmitter and Receiver channels
• Built-in digital diagnostic via 2-wire interface
• Single 3.3V power supply voltage
• Power consumption < 1W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with SFF-8402, SFF-8432, SFF-8419, SFF-8472
• Compliant with IEEE 802.3by 25GBASE-SR
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 25G Ethernet
• eCPRI Wireless Networks
• Data Center
• Enterprise
• Campus

Specification
