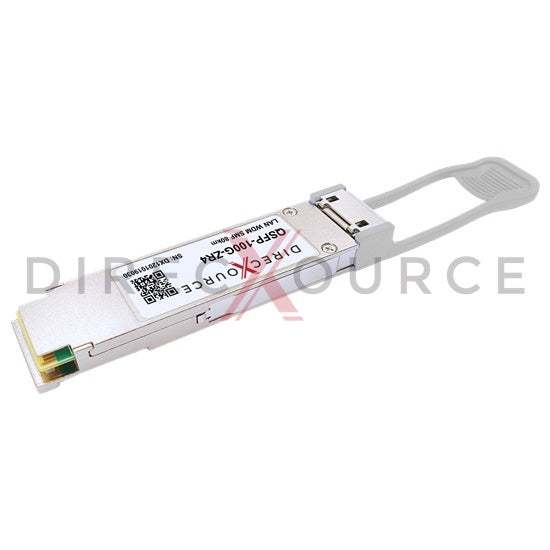

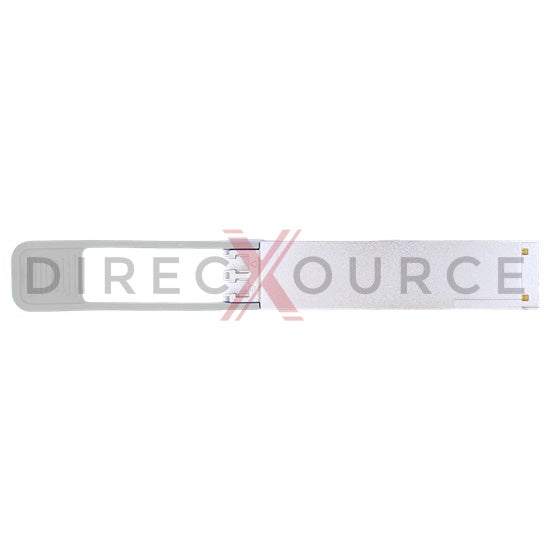

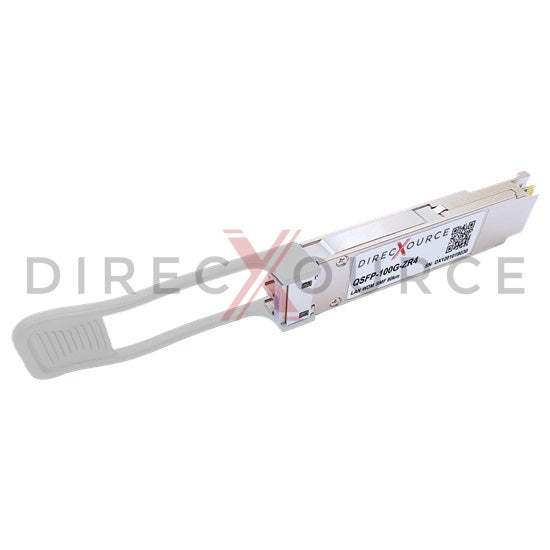

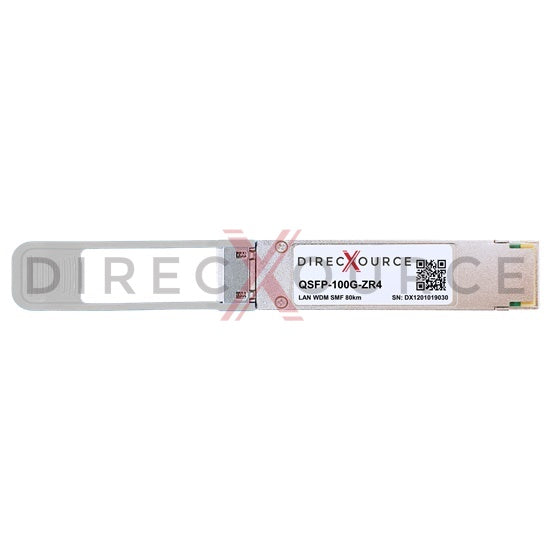

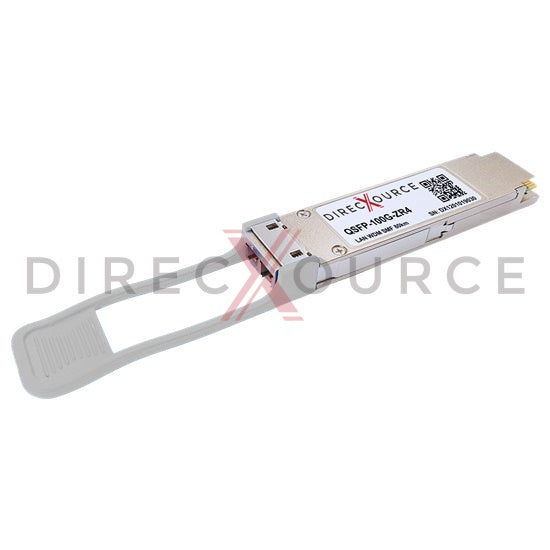

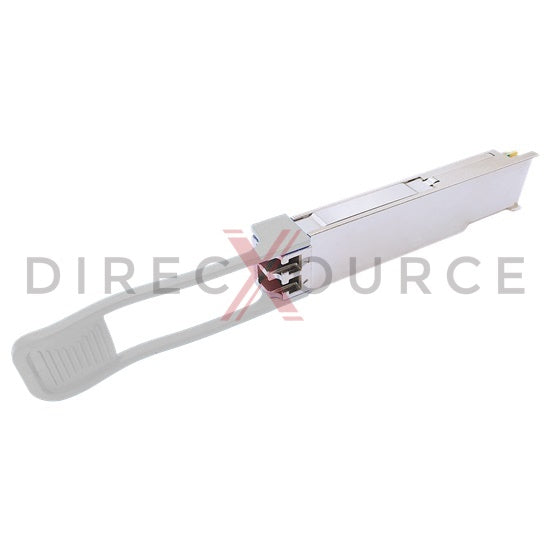

Generic Compatible QSFP-100G-ZR4 100GBASE-ZR4 QSFP28 1550nm 80km SMF LC DOM Optical Transceiver Module
direcXource's QSFP-100G-ZR4 optical transceiver is a parallel 103.1Gbps Quad Small Form-factor Pluggable QSFP28 module for use in 100GBASE Ethernet. QSFP28 ZR4 provides 100Gb/s throughput up to 80km over single-mode fiber (SMF) with host FEC using 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm wavelength. This transceiver is fully compliant with QSFP28 Multi-Source Agreement (MSA), IEEE 802.3 100GBASE-ZR4 and CAUI-4 standard. Its electrical interface is MSA compliant 38-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex QSFP28 transceiver implements 4 independent 25.78125 Gbps transmit and receive channels in each wavelength for an aggregate 100 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to generic MSA transceivers.
Feature
- Hot pluggable QSFP28 form factor
- Aggregate data rate up to 103.1Gbps
- 4 channels 1550nm LAN-WDM EML transmitter
- 4 channels APD photo receiver
- Duplex LC optical connector
- Link distances up to SMF 80km with host FEC
- 4x 25.78125Gbps NRZ retimed CUAI-4 electrical interface
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 6W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with SFF-8665, SFF-8661, SFF-8679, SFF-8636
- Compliant with IEEE 802.3 100GBASE-ZR4
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 100G Ethernet
- Data Center
Specification
| Part Number | QSFP-100G-ZR4 | Form Factor | QSFP28 |
| Max Data Rate | 103.1Gbps | Max Distance | 80km (49.7 miles) |
| Wavelength | 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm | Connector | Duplex LC |
| DDM/DOM | Support | Media | SMF |
| Transmitter Type | 4x LAN-WDM EML | Receiver Type | APD |
| Transmitter Power | 3 to 6.5dBm | Receiver Sensitivity | < -28dBm |
| Extinction Ratio | 6dB | Receiver Overload | -7dBm |
| Transmit and Dispersion Penalty | 1dB | Power Budget | 31dB |
| OE Packaging | Box Packaging | Signal Conditioner | Retimer for TX and RX |
| Modulation Format | NRZ | Host FEC | Support |
| Power Consumption | 6W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
