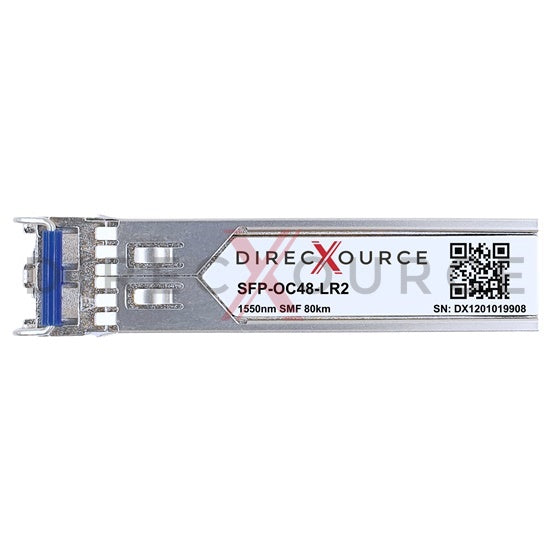

Generic Compatible SFP-OC48-LR2 OC-48/STM-16 LR-2 SFP 1550nm 80km SMF LC DOM Optical Transceiver Module

Generic Compatible SFP-OC48-LR2 OC-48/STM-16 LR-2 SFP 1550nm 80km SMF LC DOM Optical Transceiver Module

direcXource's SFP-OC48-LR2 optical transceiver is a dual fiber 2.67Gbps Small Form-factor Pluggable SFP module for use in OC48/STM-16 SONET/SDH Network. SFP OC48-LR2 provides 2.5Gb/s throughput up to 80km over single-mode fiber (SMF) using 1550nm wavelength. This transceiver is fully compliant with SFP Multi-Source Agreement (MSA) and SONET OC-48 LR-2 standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP transceiver features highly reliable DFB transmitter and APD photo detector to offer high performance interconnection at 2.5 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to generic MSA transceivers.

Feature

• Hot pluggable SFP form factor
• Data rate up to 2.67Gbps
• 1550nm DFB transmitter
• APD photo receiver
• Duplex LC optical connector
• Link distances up to SMF 80km
• Built-in digital diagnostic via 2-wire interface
• Single 3.3V power supply voltage
• Power consumption < 0.7W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with INF-8074i, SFF-8472
• Compliant with SONET OC-48 LR-2
• Compliant with SDH STM L-16.2
• Compliant with RoHS, REACH, CE, FCC standards

Application

• SONET OC-48 Network
• SDH STM-16 Network

Specification
